Pro Xp 60

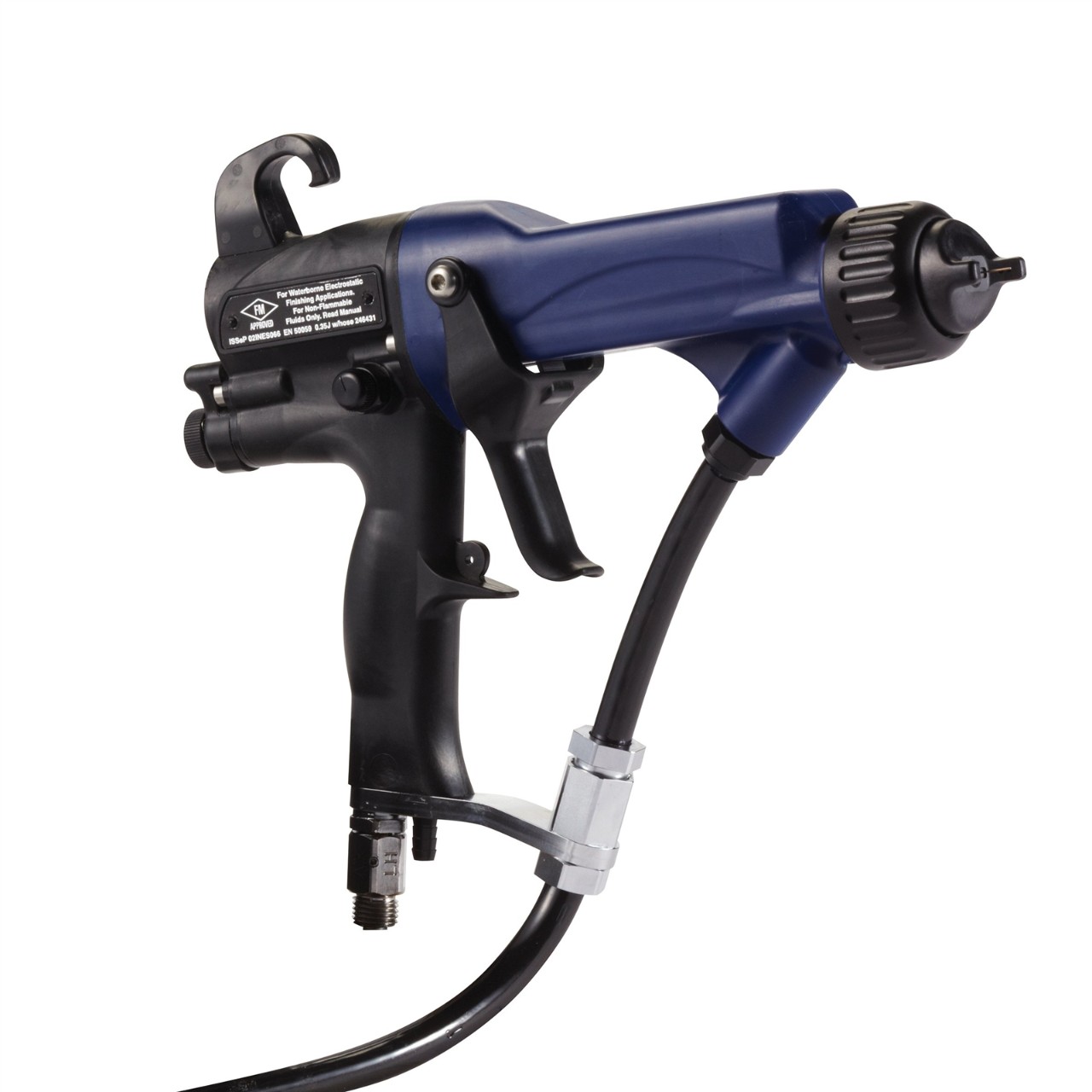

Pro Xp60 WB Manual Air Spray Gun, 60 kV, standard display, for waterborne coatings
Part Number: L60T17
Image is for illustrative purposes only.
Pro Xp 60
Pro Xp60 WB Manual Air Spray Gun, 60 kV, standard display, for waterborne coatings
Part Number: L60T17
Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material.
Product is Discontinued
Exact Fit Replacement Product Available
Exact fit products feature the same form, fit and function as the original product.Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, 0.055 in (1.5 mm) nozzle, standard display, for waterborne coatings
Part Number: L60T18
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material.

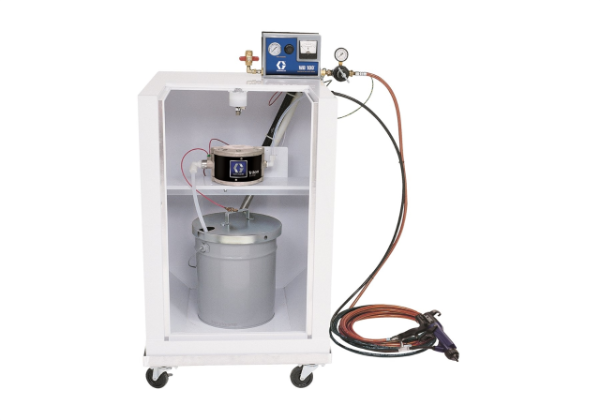

For spraying conductive, waterborne fluids with an isolation system
- Available in 60 kV, it’s the smallest profile gun with an internal power supply on the market.
- Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator.
- Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements.
- Made in the USA
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Waterborne |
| Applicator Type | Manual |
| Coating Type | Waterborne |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.32 |
| Gun Weight (oz) | 21.16 |
| Includes | Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Nozzle Size (in) | 0.055 |
| Overall Length (in) | 9.5 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Waterborne |
| Applicator Type | Manual |
| Coating Type | Waterborne |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 600 |
| Gun Weight (kg) | 0.6 |
| Gun Weight (oz) | 21.16 |
| Includes | Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7.0 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | 1 |
| Minimum Paint Resistivity (megohm/cm) | 0 |
| Model | Pro Xp |
| Nozzle Size (cm) | 0.15 |
| Nozzle Size (mm) | 1.5 |
| Overall Length (cm) | 24.13 |
| Overall Length (mm) | 241.3 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
Repair Parts
| Part No. | Description |
|---|---|
| 24N279 | Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end |
| 24N633 | Plastic Trigger Kit |
| 24N654 | 60 kV Packing Packing Rod Assembly |
| 24N789 | Air Seal Repair Kit |
| 24T304 | Atomizing Air Restrictor Valve Assembly |
| 24N615 | Fluid Nozzle for Standard Materials- 1.20 mm Orifice Size |
| 24N655 | 85 kV Packing Rod Assembly |
| 24N706 | Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun |
| 24N790 | Fluid Seal Repair Kit |
| 24N653 | 40 kV Packing Rod Assembly |
| 24N614 | Fluid nozzle, for standard coatings, 1.0 mm (.042 inch) Orifice Size, Black |
| 24N622 | High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue |
| 24N634 | Standard Fan Air Adjustment Valve Kit |
| 24N664 | Turbine Assembly Kit |
| 24N704 | High Wear Electrode Needle Kit |
| 24N617 | Fluid nozzle, for standard coatings, 1.8 mm (.070 inch) Orifice Size, Black |
| 24N623 | High Wear Fluid Nozzle for Abrasive Materials- 1.50 mm Orifice Size |
| 24N629 | High Conductivity Fluid Tube Kit for 85 kV guns, to convert a standard Pro Xp air spray gun to a HC gun |
| 24N376 | Air Cap, Black, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end |
| 24N438 | Air Cap, Black, similar to the standard air cap with an alternate arrangement of atomizing air, light to medium viscosity, round end |
| 24N616 | Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size |
| 24N630 | ES On-Off and Fluid Adjustment Valve Kit |
| 24N477 | Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end |
| 24N628 | 60 kV High Conductivity Kit |
| 24N727 | Air Cap Assembly Kit for Pro Xp Air-Assisted Gun |
Recommended Accessories
Setup & Service Videos
Learn how to keep your Pro Xp Air Spray Electrostatic Gun performing well. Air spray service video playlist starts with parts animation, continues with gun setup and prime, disassembly, assembly, and then ends with gun controls overview.
