Husky 1050

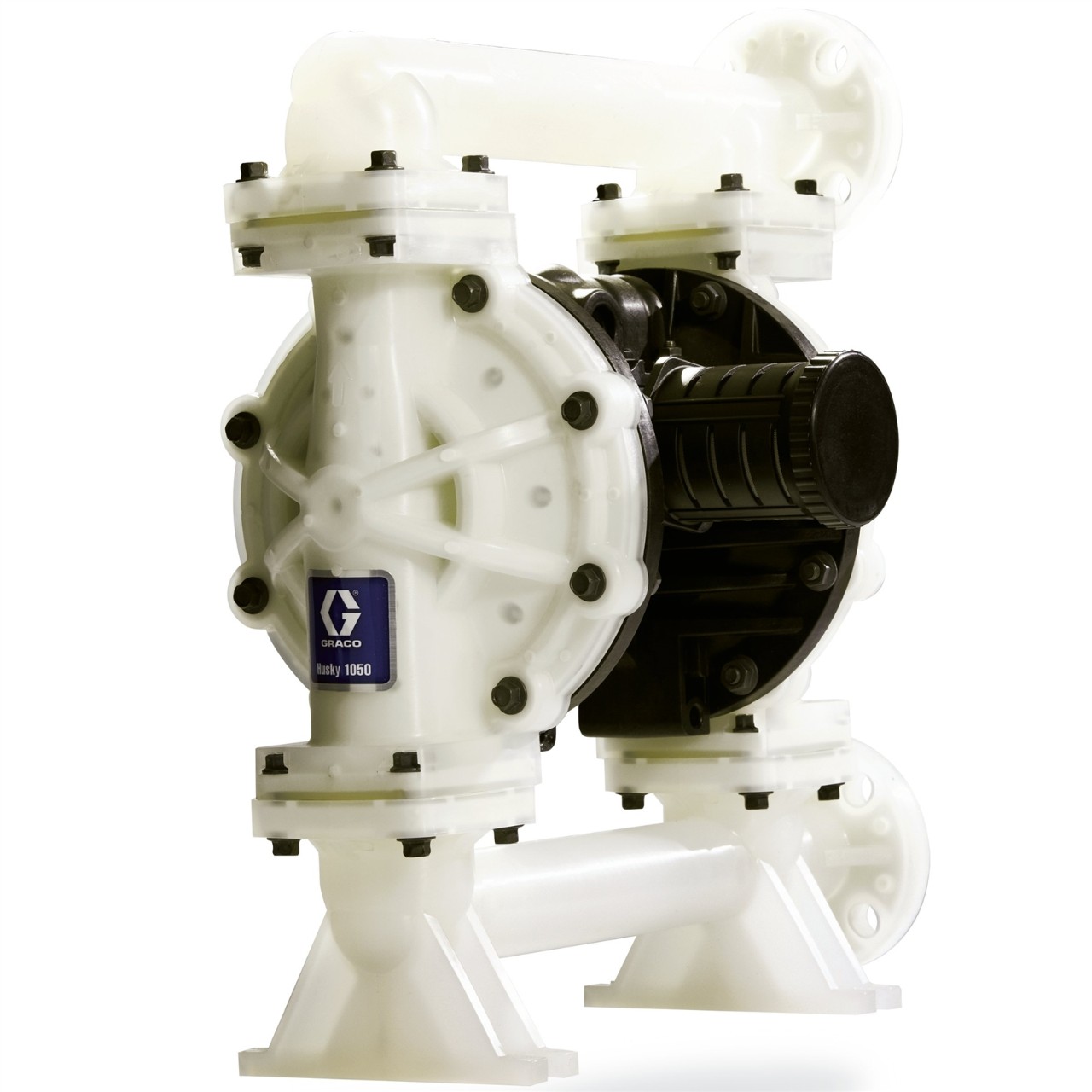

Husky 1050 PP (NPT) Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
Part Number: 649034
Husky 1050
Husky 1050 PP (NPT) Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
Part Number: 649034
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Longer Diaphragm Life
- Up to 5x longer diaphragm life for less maintenance and downtime
Modular Air Valve
- Stall-free, low pulsation operation provides smooth and rapid changeover
One-Piece Center Section
- Eliminates air leaks for more efficient operation
Four Bolt Joint Design
- Bolted design provides even sealing pressure for leak-free operation
Multiple Ports
- Increased number of ports for installation flexibility
Optional Features
- DataTrak™ - Runaway protection and tracks material usage
- Pulse Output - Cycle count capability
- Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
- 30% more efficient than the market leader
- 20% increase in fluid flow compared to the Husky 1040
Specifications & Documents
Technical Specifications
Convert to Metric| Air Exhaust Port Size (in) | 3/4 |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer |
| Connection Type | End Flange ANSI/DIN |
| Construction | Polypropylene, PTFE/EPDM |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 67 |
| Maximum Air Pressure (MPa) | 0.86 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 50 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.125 |
| Model | Husky |
| Overall Height (in) | 17.8 |
| Power Source | Air |
| Seat Material | Polypropylene |
| Series | 1050 |
| Standards Met | CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 18 |
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer |
| Connection Type | End Flange ANSI/DIN |
| Construction | Polypropylene, PTFE/EPDM |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Pressure (MPa) | 0.86 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (L/min) | 189 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 860 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (mm) | 3.175 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Polypropylene |
| Series | 1050 |
| Standards Met | CE |
| Type | Pneumatic Diaphragm Pump |
