ProControl 1KS
ProControl 1KS, Basic
Part Number: 262380

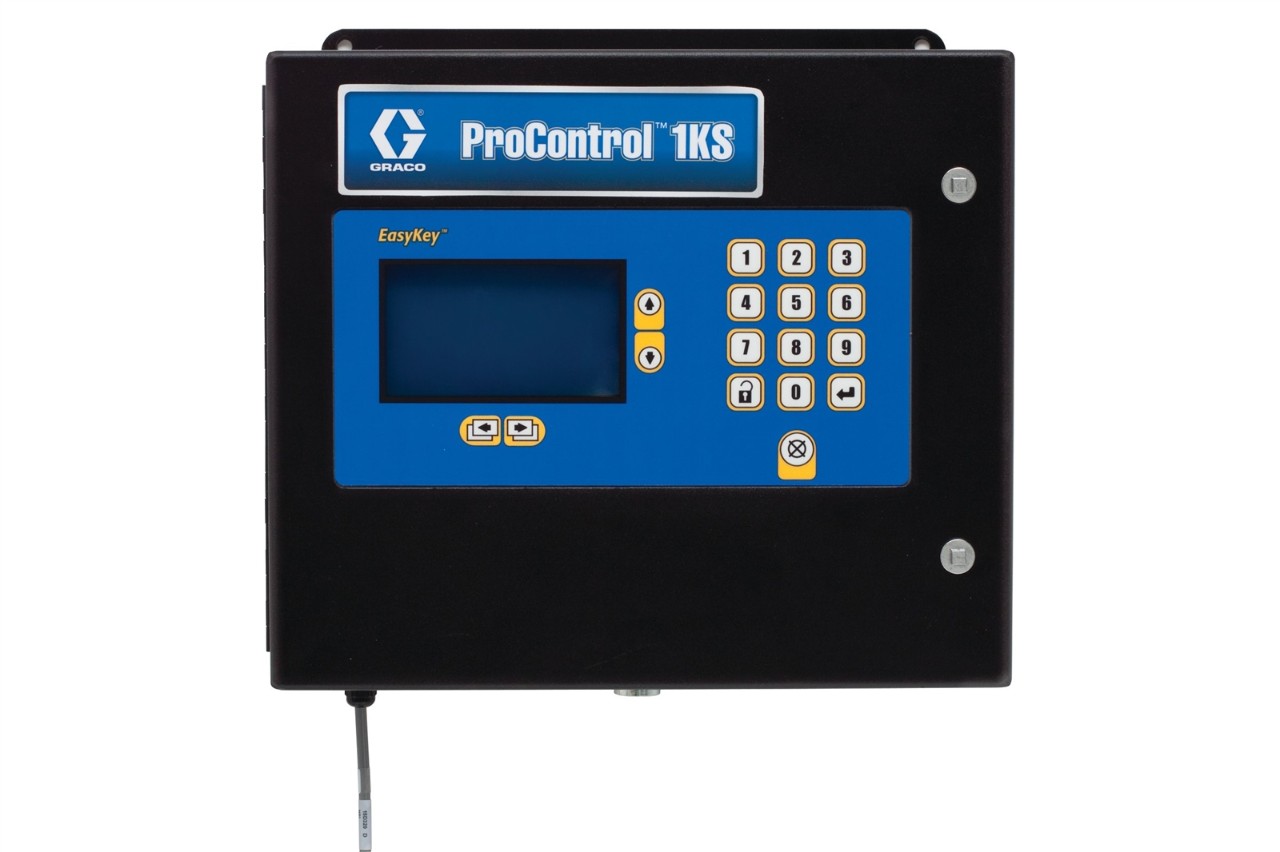

Image is for illustrative purposes only.
ProControl 1KS
ProControl 1KS, Basic
Part Number: 262380
Maintain a closed loop flow control system for a superior finish with the same proven technology as the ProMix® 2KS
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Maintain a closed loop flow control system for a superior finish with the same proven technology as the ProMix® 2KS
Single Component Flow Control
Integrated Flushing
Flexible Installation
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Amperage (A) | 2 |
| Construction | 303 Stainless Steel, 304 Stainless Steel, Tungsten Carbide, Tungsten Carbide With Nickel Binder, Perfluoroelastomer, PTFE |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Frequency (Hz) | 50/60 |
| Includes | ProControl 1KS Module |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 0.32 |
| Maximum Fluid Viscosity (cP) | 5000 |
| Maximum Number of Colors | Up to 30 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Fluid Viscosity (cP) | 20 |
| Model | ProControl |
| Series | 1KS |
| Sound Pressure Level (dB(A)) | 70 |
| System Type | Fluid Flow Control |
| Type | Proportioning System |
| Air Inlet Size (cm) | 0.9525 |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Size (mm) | 9.525 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Amperage (A) | 2 |
| Construction | 303 Stainless Steel, 304 Stainless Steel, Tungsten Carbide, Tungsten Carbide With Nickel Binder, Perfluoroelastomer, PTFE |
| Fluid Inlet Size (cm) | 0.635 |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Size (mm) | 6.35 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Frequency (Hz) | 50/60 |
| Includes | ProControl 1KS Module |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (L/min) | 1.2 |
| Maximum Flow Rate (cc/min) | 1200 |
| Maximum Fluid Viscosity (cP) | 5000 |
| Maximum Number of Colors | Up to 30 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (bar) | 275.8 |
| Maximum Working Pressure (kPa) | 27580 |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Fluid Viscosity (cP) | 20 |
| Model | ProControl |
| Series | 1KS |
| Sound Pressure Level (dB(A)) | 70 |
| System Type | Fluid Flow Control |
| Type | Proportioning System |
Product Manuals
406712A, Instruction Form for Dispense Valve Carbide Seat Kit 15U932, English
(167 KB)
(English Only)
CAD Drawings
262380-3D-EN.zip
(2 MB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
