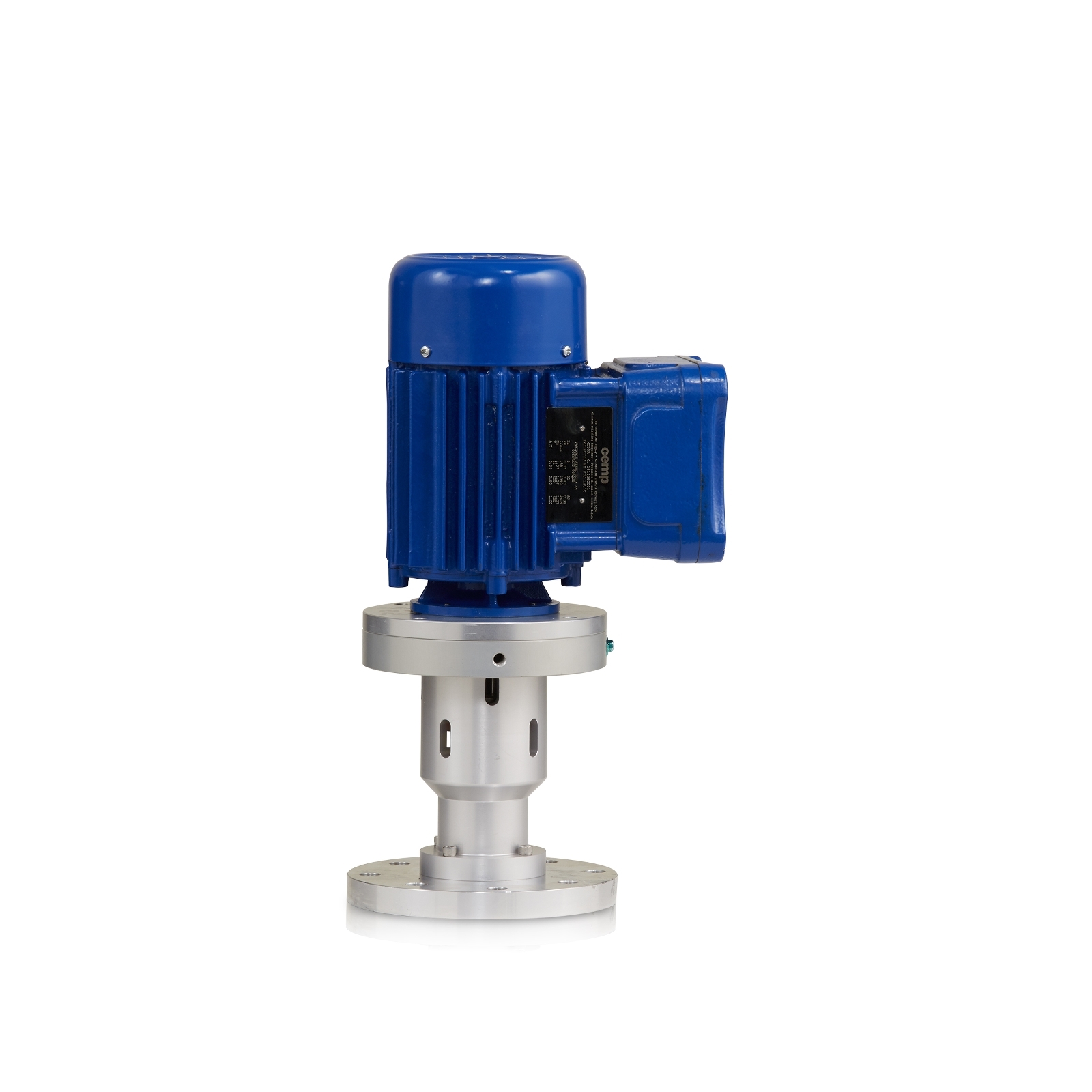

7.5 in OD Flange Mount Motor (3 in (7.6 cm) 150# ANSI Flange Mounting Holes), ATEX
Part Number: 25C463
Image is for illustrative purposes only.
7.5 in OD Flange Mount Motor (3 in (7.6 cm) 150# ANSI Flange Mounting Holes), ATEX
Part Number: 25C463
Low shear, electric, direct drive agitator (ATEX listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This 7.5 in. OD Flange Mount Motor does not come with shaft or impeller.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Low shear, electric, direct drive agitator (ATEX listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This 7.5 in. OD Flange Mount Motor does not come with shaft or impeller.
For advanced control and energy savings, switch to electric agitators.
- Combinations of this motor with Graco gear reducers, shafts and impellers are also ATEX certified. For more about hazardous location approved combinations, refer to product manual 3A4553.
- Quiet motor improves work environment with a sound pressure level of less than 75 dBA.
- Speed remains constant, regardless of material level in tank.
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Stainless Steel |
|---|---|
| For Use With | 36 in. (91.44 cm) diameter or wide container |
| Includes | Motor, Flange |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 300 |
| Minimum Operating Temperature (°F) | 32 |
| Motor Type | Electric |
| Power Rating (HP) | 0.75 |
| Power Rating (kW) | 0.37 |
| Type | Agitator |
| Weight Range (lb) | 55-65 |
| Construction | Stainless Steel |
| For Use With | 36 in. (91.44 cm) diameter or wide container |
| Includes | Motor, Flange |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 300 |
| Minimum Operating Temperature (°C) | 0 |
| Motor Type | Electric |
| Power Rating (kW) | 0.37 |
| Type | Agitator |
| Weight Range (kg) | 25-30 |
