3 in (7.62 cm) Quick-Clamp Flange Mount Agitator Motor, UL

Part Number: 25C453

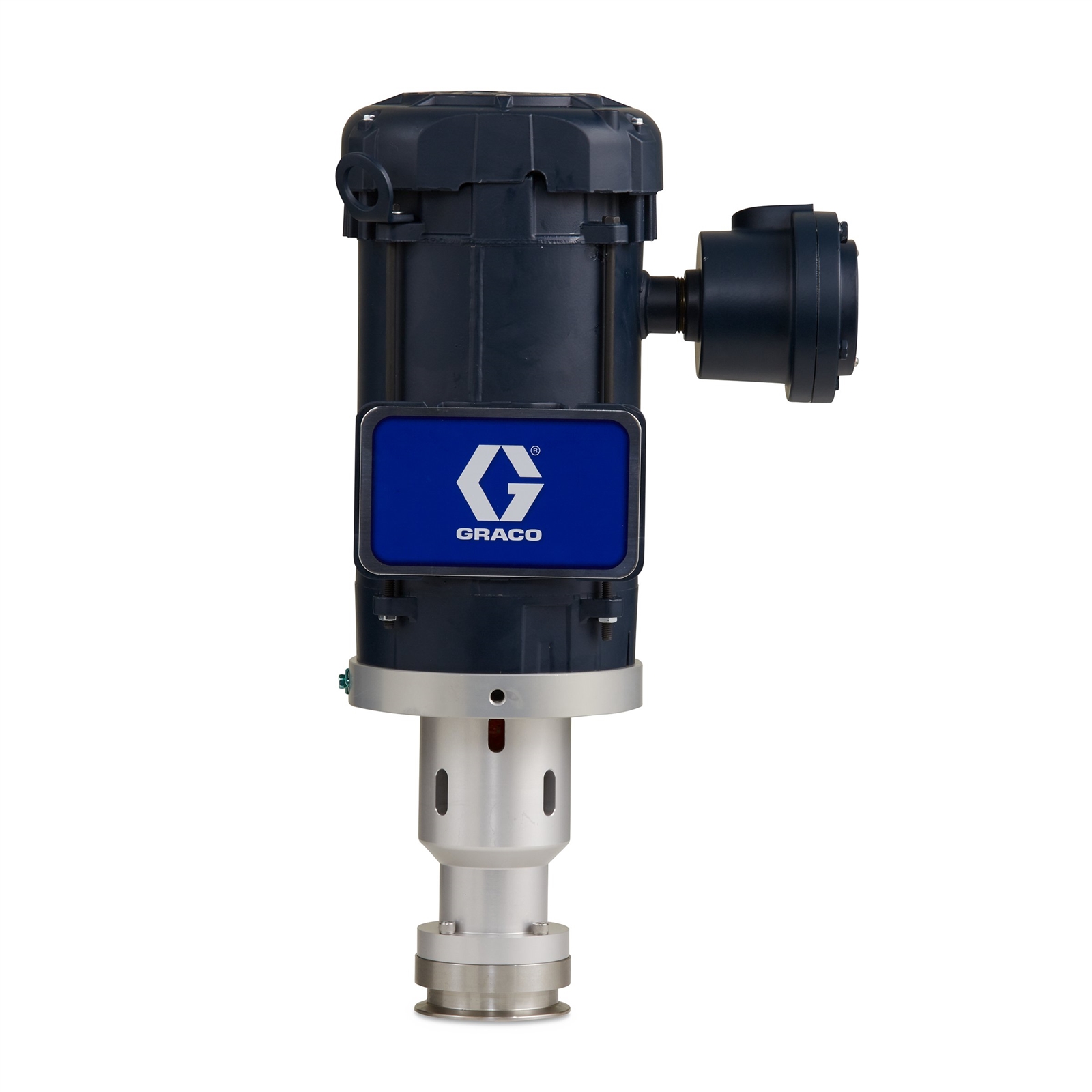

product image
Image is for illustrative purposes only.

3 in (7.62 cm) Quick-Clamp Flange Mount Agitator Motor, UL

Part Number: 25C453

Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.

For advanced control and energy savings, switch to electric agitators.

  • Electric agitators are up to 5 times more efficient than pneumatic agitators.
  • Speed remains constant, regardless of material level in tank.
  • Low shear mixing ensures uniform particle dispersion without material degradation.

Specifications & Documents

Technical Specifications

Convert to Metric
Construction Stainless Steel
For Use With Drum or Pressure Tank
Includes Motor, Flange
Maximum Operating Temperature (°F) 104
Maximum Speed (RPM) 500
Maximum Viscosity (cP) 300
Minimum Operating Temperature (°F) 32
Motor Type Electric
Power Rating (HP) 0.75
Power Rating (kW) 0.37
Type Agitator
Weight Range (lb) 55-65
Construction Stainless Steel
For Use With Drum or Pressure Tank
Includes Motor, Flange
Maximum Operating Temperature (°C) 40
Maximum Speed (RPM) 500
Maximum Viscosity (cP) 300
Minimum Operating Temperature (°C) 0
Motor Type Electric
Power Rating (kW) 0.37
Type Agitator
Weight Range (kg) 25-30
