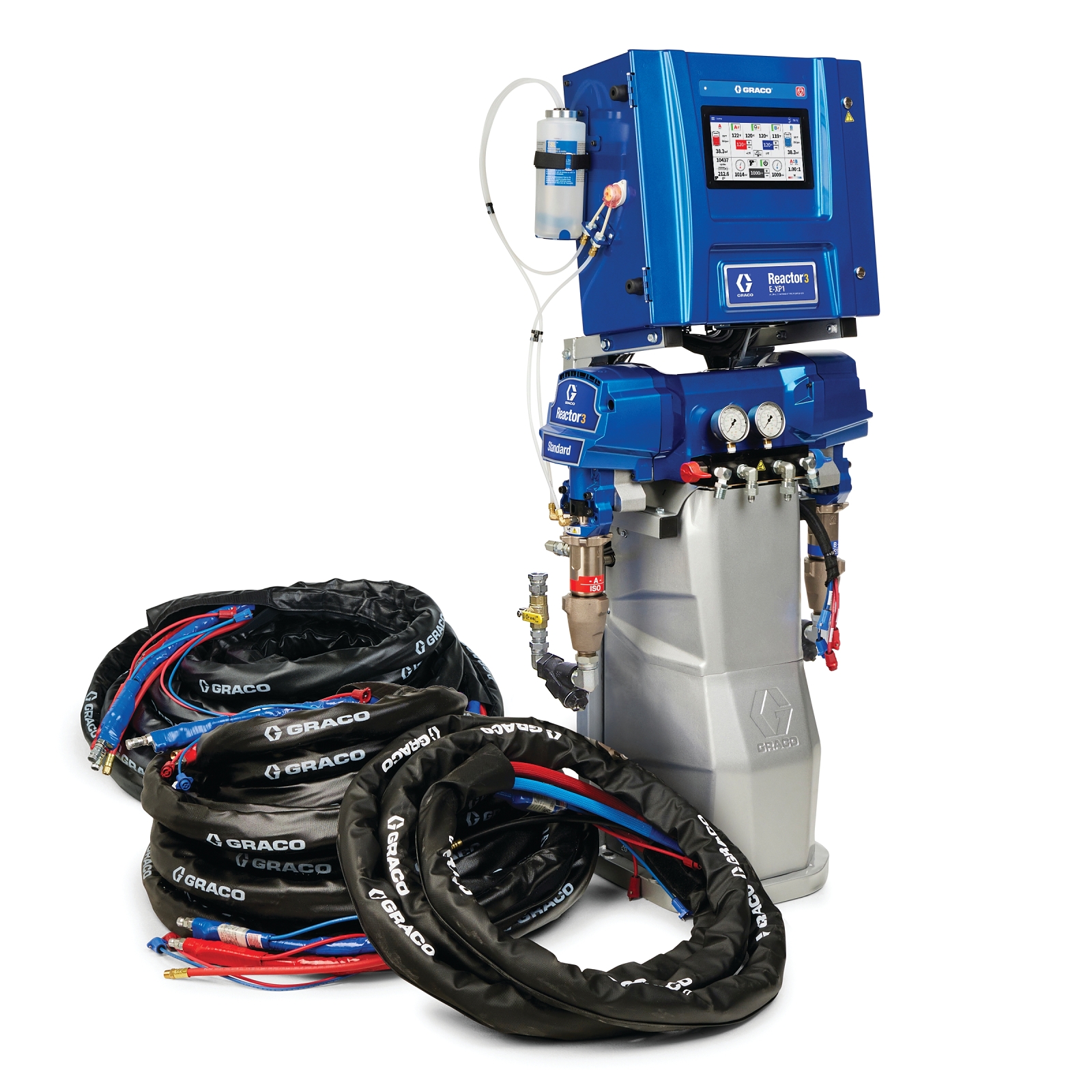

Reactor 3 E-XP1 Standard Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 10 kW

Part Number: IHR320

product image product image
Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
  • Chapters
  • descriptions off, selected
  • captions off, selected

    Reactor 3 E-XP1

    Reactor 3 E-XP1 Standard Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 10 kW

    Part Number: IHR320

    Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

    Features

    Product Brochure
    Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

    The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required.

    • ISO Lube Pump
      • Active ISO Lube system with peristaltic pump
      • Automatic timed circulation improves TSL Life
      • Reduced maintenance (No check valves)
      • New larger easy-to-change ISO lube bottle
    • Touchscreen Advanced Display Module (ADM)
      • Large new touchscreen interface
      • Intuitive operation and navigation
      • All spray operations from one screen
    • Independent Hose Control
      • Control A and B materials to different temperatures for improved pressure balancing
      • Optimizes yield
    • Advanced Electric Design
      • Brushless motor for improved pressure/flow performance
      • New temperature control boards for independent hose heat
      • Voltage jumpers for easy changing between voltages
      • Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
      • New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic
    • Reduced Size
      • Reduced footprint provides additional room in your rig
      • Compact design protects the flow meters and hose connections from being damaged in your rig

    Specifications & Documents

    Technical Specifications

    Convert to Metric
    Amperage (A) 65A 1–ph, 39A 3–ph DELTA, 24A 3–ph WYE
    Frequency (Hz) 50/60
    Hose Heating Type Internal Heated
    Hose Length (ft) 200
    Maximum Flow Rate (GPM) 1.0
    Maximum Fluid Temperature (°F) 190
    Maximum Spray Pressure (MPa) 20.7
    Maximum Spray Pressure (psi) 3000
    Model Reactor 3
    Overall Depth (in) 15
    Overall Height (in) 56.5
    Overall Width (in) 24.9
    Power Rating (kW) 10
    Product Series Standard
    Series E-XP1
    Transfer Pump No Transfer Pump
    Type Proportioner Package
    Voltage (V) 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE
    Weight (lb) 260
    Amperage (A) 65A 1–ph, 39A 3–ph DELTA, 24A 3–ph WYE
    Frequency (Hz) 50/60
    Hose Heating Type Internal Heated
    Maximum Flow Rate (L/min) 3.8
    Maximum Fluid Temperature (°C) 88
    Maximum Spray Pressure (MPa) 20.7
    Maximum Spray Pressure (bar) 207
    Maximum Spray Pressure (psi) 3000
    Model Reactor 3
    Power Rating (kW) 10
    Product Series Standard
    Series E-XP1
    Transfer Pump No Transfer Pump
    Type Proportioner Package
    Voltage (V) 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE
    Weight (kg) 118
