The manufacturer saves £365,000 with rotary bell atomisers

Implementing ProBell increases paint line speed and decreases solvent use.

Bell applicator technology pays for itself within a year

CUSTOMER: Architectural products finisher

GRACO EQUIPMENT: ProBell rotary applicator

CHALLENGE: The engineering manager of a large architectural products finisher too often stepped in paint. The reason was overspray from their 17-year-old rotary atomizers, which were making puddles on the production floor.

Moreover, the worn-out bell atomizers were giving very poor transfer efficiency. To get a satisfactory finish, operators had to run extruded aluminum parts through the production line as many as three times. That, paired with slow color changes, drastically slowed production and caused low employee morale.

To get morale and production back on track, a new solution needed to integrate with their current programmable logic controller (PLC) system and be installed without losing any production.

SOLUTION: Aware that his current bells were the source of the problem, the engineering manager began to explore new options. The company could not find any suitable technology updates for their existing rotary atomizers, so looked at the Graco ProBell and a competitive model.

The competitive model performed well, but common replacement parts like bell cups and air bearings were much more expensive compared to ProBell counterparts.

On top of affordable parts and good performance, ProBell also offered a unique system logic controller. The company found the easy-to-use computerized control panel allowed for fast color changes and precise parameter settings.

With overall cost of ownership as a major decision maker, the ProBell looked like the clear choice.

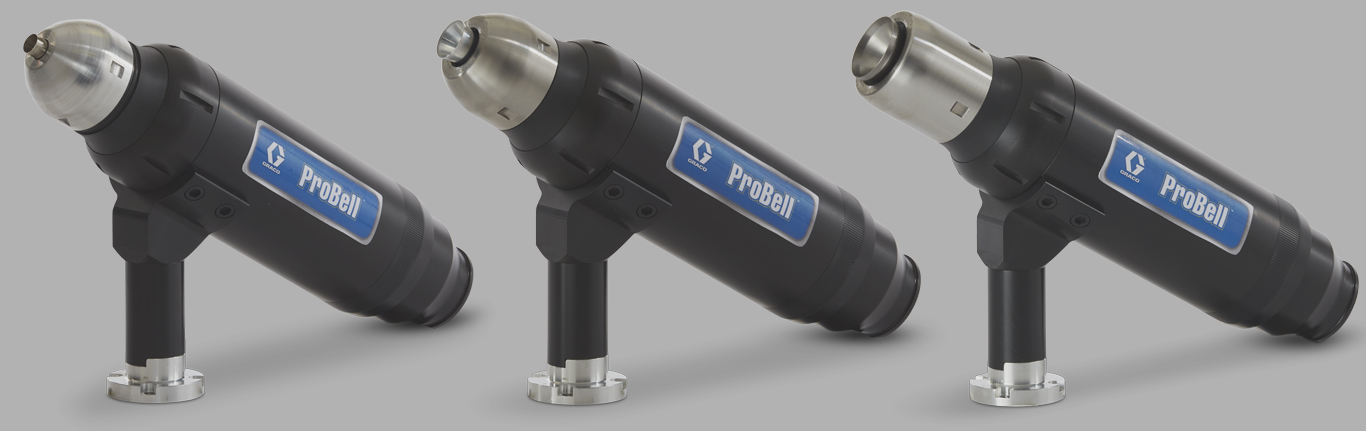

ProBell automatic electrostatic paint sprayers have three bell cup sizes

RESULTS: Graco engineers and technicians assisted in the installation and integration of six ProBells with the current PLC system, resulting in no downtime on a tight production schedule.

Immediately, operators were amazed by the finish quality, ease of use, and coverage of hard to reach corners, especially on aluminum extrusions.

Overall, line speed increased, and paint solvent use dropped by 15 to 20 percent. These improvements added up to annual savings of over $500,000, paying for the new equipment within the first year.

All trademarks and registered trademarks are the property of their respective owners.
