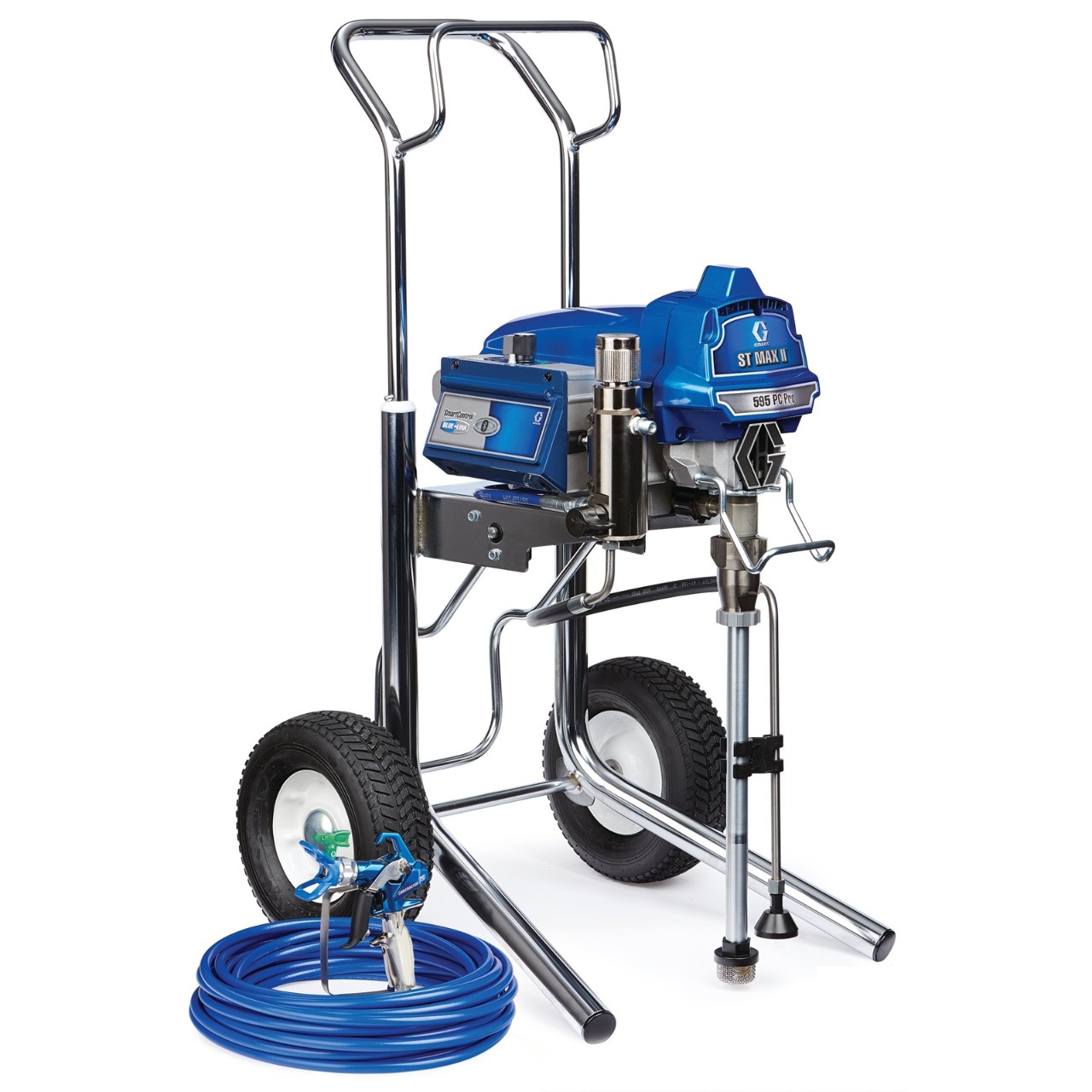

ST Max II 595 PC Pro
ST Max II 595 PC Pro Electric Airless Sprayer, 110V, UK
Part Number: 17E878
ST Max II 595 PC Pro
ST Max II 595 PC Pro Electric Airless Sprayer, 110V, UK
Part Number: 17E878
The ST Max II 595 PC Pro airless sprayer is the ideal choice for the painting professional who needs the highest possible output from a small, portable unit. Supports WideRAC spray tips to finish large surface area projects faster while the longer pump stroke extends time between repacks.
Features
Product Brochure
The ST Max II 595 PC Pro airless sprayer is the ideal choice for the painting professional who needs the highest possible output from a small, portable unit. Supports WideRAC spray tips to finish large surface area projects faster while the longer pump stroke extends time between repacks.
Increased productivity. Unmatched Reliability. Graco's Midsize Electric airless sprayers make it easier to get more work done in a day with increased flow and production rates.
- Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
SmartControl with Digital Display
- Even pressure delivery on every job
- Constantly monitors performance and adjusts motor speed to match your spraying needs
- Measure sprayer litres/gallons, hours and pressure
- Provides support messages and diagnostic support
- MaxPower motor & advantage drive
- Proven power and performance for all painting applications
- High-torque brushless design
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- ProConnect one-part pump replacement system
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
- FastFlush high-flow cleaning system
- More spraying & less cleaning
- 4X faster cleaning with half the water
- Easy Out pump filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
- Durable cart design with kickstand
- Withstands rugged environments
- The design allows for easy, one-person bucket changes
- The retractable handle doubles as hose storage
- A kickstand for easy one person bucket changes
Contractor PC spray gun
- All-day comfort & control
- The lightest weight gun in its class
- An up to 50% lighter trigger pull force
- E-Z fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- Durable cart design with kickstand
- Withstands rugged environments
- The design allows for easy, one-person bucket changes
- The retractable handle doubles as hose storage
- A kickstand for easy one person bucket changes
- A toolbox for easy accessories, spares and tool storage
- Contractor PC spray gun
- All-day comfort & control
- The lightest weight gun in its class
- An up to 50% lighter trigger pull force
- E-Z fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Replacement Pump | 17C489 |
|---|---|
| Convertible | Non-Convertible |
| Engine Size (HP) | 1.6 Brushless DC |
| Engine Size (kW) | 1.19 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 60 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | All units shipped complete and ready to spray: with a 17Y043 Contractor PC™ gun, LP517 tip, 246215 RAC X™ guard, 287032 Easy-Out™ filter (60 mesh), 240794 BlueMax™ II hose (1/4 in. x 15 m), 15F446 gun tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Maximum Flow Rate (GPM) | 0.68 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 150 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.027 |
| Maximum Tip Size 1 Gun (in) | 0.027 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 4000 |
| Minimum generator power (kW) | 0 |
| Model | ST Max II |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 28 |
| Overall Length (in) | 23.25 |
| Overall Width (in) | 20.5 |
| Phase | 1 |
| Power Rating (HP) | 1.6 |
| Power Rating (kW) | 1.19 |
| Power Source | Electric |
| Pressure Control Type | SmartControl |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened stainless steel |
| Pump Type | Endurance |
| Series | 595 PC Pro |
| Spray Gun Type | Contractor PC Pro gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 110 |
| Weight (lb) | 73 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
| Compatible Replacement Pump | 17C489 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 1.19 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6,35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 60 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | All units shipped complete and ready to spray: with a 17Y043 Contractor PC™ gun, LP517 tip, 246215 RAC X™ guard, 287032 Easy-Out™ filter (60 mesh), 240794 BlueMax™ II hose (1/4 in. x 15 m), 15F446 gun tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Maximum Flow Rate (L/min) | 2.6 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 45 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.027 |
| Maximum Tip Size 1 Gun (in) | 0.027 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 4000 |
| Minimum generator power (kW) | 0 |
| Model | ST Max II |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 72 |
| Overall Height (mm) | 711.2000 |
| Overall Length (cm) | 59.1 |
| Overall Length (mm) | 590.55 |
| Overall Width (cm) | 52.1 |
| Overall Width (mm) | 520.7000 |
| Phase | 1 |
| Power Rating (kW) | 1.19 |
| Power Source | Electric |
| Pressure Control Type | SmartControl |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened stainless steel |
| Pump Type | Endurance |
| Region plug type | UK region (type G plug) |
| Series | 595 PC Pro |
| Spray Gun Type | Contractor PC Pro gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 110 |
| Weight (kg) | 33 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip |
| 240794 | BlueMax II Airless Hose, 1/4 in. x 15 m (50 ft) |
| 15B071 | INSERT, FILTER |
| 117828 | KIT, O-RING, PTFE, ENCAPULATED |
| 253370 | KIT, REPAIR, CORD, POWER, MULTI |
| 246382 | Easy Out Pump Manifold Filter, Short, 100 mesh |
| 246425 | Easy Out Pump Manifold Filter, Short, 30 mesh |
| 246384 | Easy Out Pump Manifold Filter, Short, 60 mesh |
| 17C992 | KIT, REPAIR, STINGER TUBE |
| 246385 | Inlet Strainer, Nylon Cap, 7/8 inch |
| 243222 | Q KIT, REPAIR, TRANSDUCER |
| 287912 | KIT, REPAIR,FILTER BOARD,110V |
| 287952 | KIT,REPAIR,DRAIN HOSE |
| 246383 | Easy Out Pump Manifold Filter, Short, 200 mesh |
| 15B652 | WASHER, SUCTION SWIVEL |
