Precision Continuous Flow (PCF) Selector Guide

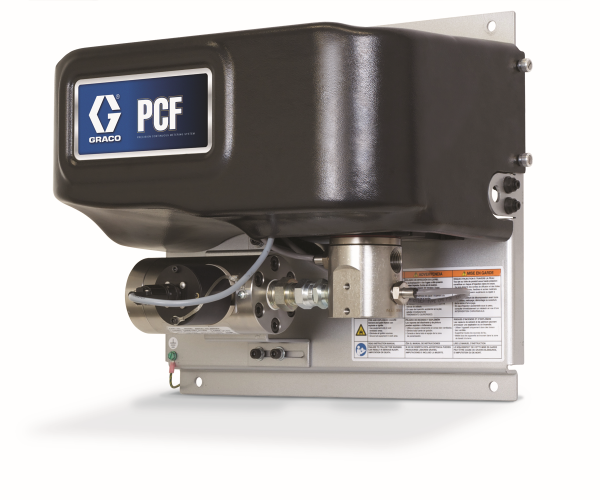

Our PCF metering system provides a precise, continuous flow for sealant and adhesive dispensing. This tool will help you determine the right configuration for your needs, including any additional accessories.
Several valves are commonly used with the PCF, the most common are the iQ valve, Switch 3D, and Swirl. View each valve to determine which is best for your application.

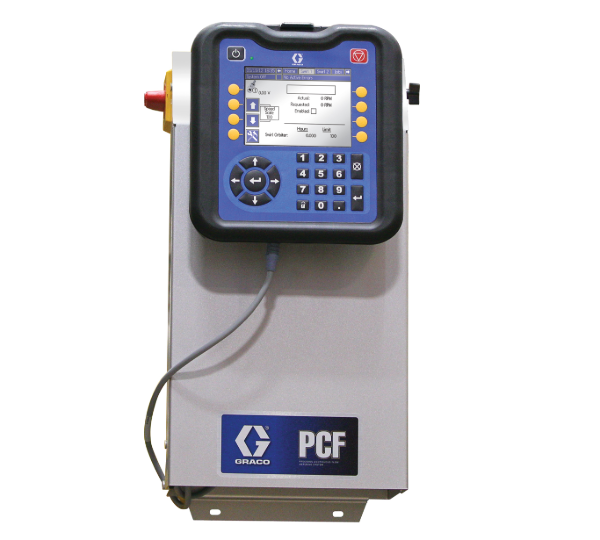

In order to add PrecisionSwirl applicators to your PCF, you will need a controls enclosure “expansion box”, an Orbital Dispenser, and a CAN cable with splitter to connect to the primary PCF controls enclosure.
| PrecisionSwirl Option Kit 2 Description | Kit Number | Must select Kit 1 and Kit 2 or none |
|---|---|---|
| Standard PrecisionSwirl Orbital Dispenser, 0.012 in (0.3 mm) | 243402 | |
| Compact PrecisionSwirl Orbital Dispenser, 0.012in (0.3mm) | 289262 |
| PrecisionSwirl Option Kit 3 Description | Kit Number | Expansion Kit - Pswirl orbiter and motor cable must be ordered separately |
|---|---|---|
| Electrical Enclosures Expansion Box | 16M350 |
The tokens below allow you to add a flow meter to a PCF that came without one from the factory or to increase from 16 styles to 256 styles on your PCF
| Style Upgrade Token Description | Kit Number | Select 1 or none |
|---|---|---|
| 16 Style Blue Token - With Flow Meter | 16M102 | |
| 256 Style Blue Token - With Flow Meter | 16M104 |
| Accessories Description | Product Number | Select as Needed or None |
|---|---|---|
| Spare Part: Fluid Pressure Regulator, Current to Pressure | 120010 | |
| Spare Part: Solenoid Cable for Fluid Pressure Regulator | 121806 | |
| Command Cable Kit for Discrete I/O Automation | 24B694 | |
| Spare Part: Dispense Valve Air Solenoid | 258334 |
| CAN Cables | Product Number | Select as Needed or None |
|---|---|---|
| 6M Female to Female Operation Cable | 121201 | |
| 15M Female to Female Operation Cable | 121228 | |
| 40M Female to Female Operation Cable | 123341 | |
| CAN Cable Splitter | 124654 |
Explore System Components
Contact Us
Finalize Your Configuration
We can ensure that all needed options are covered. We'll work with you to understand how this fits into your full system.
