EFR Selector Guide

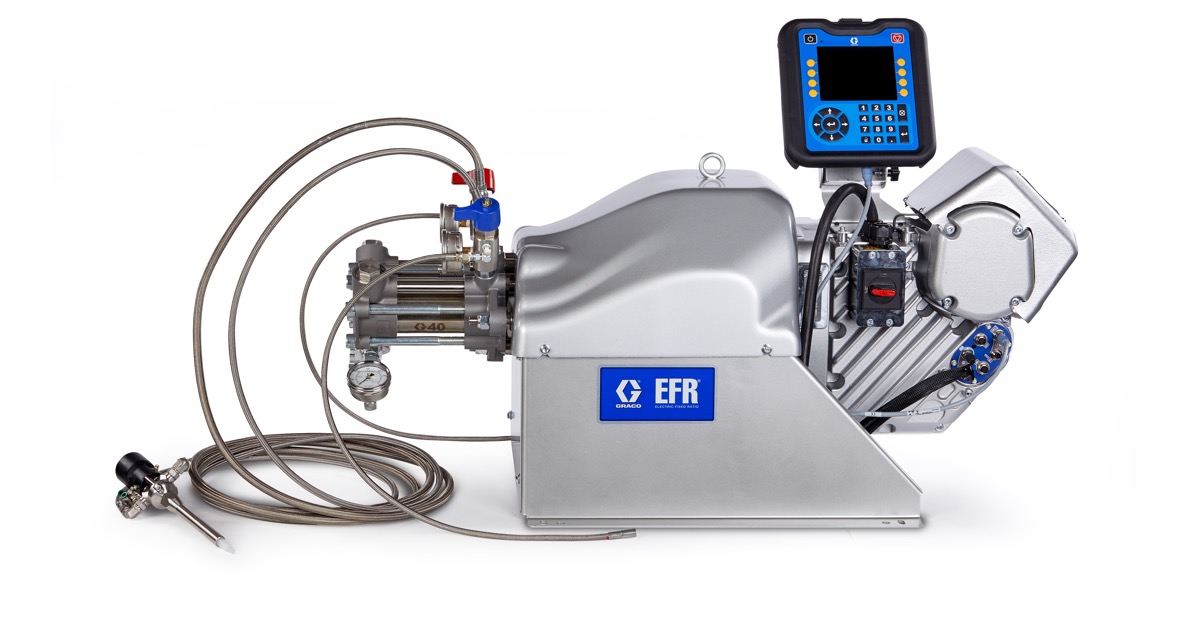

The Electric Fixed Ratio (EFR) is an electrically driven proportioner for two component sealants and adhesives.
Determine your configuration needs in four steps.
These base systems are meant to cover the most common applications you may need. They include:
- The electric motors to power the system’s pumps
- The transformer of 480volt if needed
Note: These base systems DO NOT include the Z-Pumps. These must be selected separately and installed after delivery.
| Base EFR System | Voltage | PN | Select only 1 |
|---|---|---|---|
| System, 240volt, ADM, no pumps, no fittings | 240volt | EFR2AXXX | |
| System, 480volt, ADM, no pumps, no fittings | 480volt | EFR4AXXX |
Add Fitting Kit
One fitting kit is needed for each EFR, it has the necessary parts for both pumps and their respective inlet and outlet ports.
| Fitting Kits | PN | Select only 1 |
|---|---|---|
| Carbon Steel Fitting Kit | 26B021 | |
| Stainless Steel Fitting Kit | 26B022 |
Add Inlet Regulator Kits
Optional Feature.
It is recommended that you install regulators on the inlets of your Z-Pumps for consistent operation changing environments and material conditions. The below Assembly Numbers only include a single regulator, so if you need both Z-Pumps to have a regulator, order a quantity of two.
| EFR Inlet Regulator kit | Assembly Number | Select only 1 or none |
|---|---|---|
| EFR Mastic Inlet Regulator Stainless Steel | 26A704 | |
| EFR Mastic Inlet Regulator Carbon Steel | 26A705 |
The Z-Pumps selected will set the ratio of the machine.
For example, if you select 80cc and 40cc pumps, this is a 2:1 ratio.
The total pump volume should not exceed 160cc (A+B), or else working pressure will be limited.
The below pump sizes are kept in stock and ready to ship. More sizes are available in the Z-Pumps parts & repair manual; S1/3/4 manual and S8 manual.
| Size | S4 – Standard
S8 – Elite High Wear |
PN | Select two Z-Pumps Total |
|---|---|---|---|
| 10cc | S4 | L010S4 | |
| 40cc | S4 | L040S4 | |
| 40cc | S8 | L040S8 | |
| 80cc | S4 | L080S4 | |
| 80cc | S8 | L080S8 | |
| 100cc | S4 | L100S4 | |
| 100cc | S8 | L100S8 | |
| 160cc | S4 | L160S4 | |
| 160cc | S8 | L160S8 |
The dispensing valve you choose depends on your material and application needs.
A) The MD2 Valve is the most common offering for 2K sealants and adhesives with a single-acting opening/closing and options for different ratio ranges, and specialty coatings.
B) The Voltex Valve is for dynamic mixing of materials that require the added kinetic energy for proper reactions; most commonly found in foaming materials.
Some of the below accessories are required for certain valves while there are other optional accessories that are used in complex applications and when dispensing difficult materials.
A) MD2 valve for static mixing and recirculation as an option.
| MD2 Applicator | Assembly Number | Select only 1 or none |
|---|---|---|
| MD2, 1:1, Soft Seats | 255179 | |
| MD2, 1:1, Hard Seats | 255180 | |
| MD2, 10:1, Soft Seats | 255181 | |
| MD2, 10:1, Hard Seats | 255182 | |
| Elite MD2, 1:1, hard seat, snuff-back (0.5 - 10cc/s) | 255901 | |
| Elite MD2, 10:1, hard seat, snuff-back (0.5 - 10cc/s) | 255902 | |
| Elite MD2, 1:1, hard seat, forward acting (10 - 75cc/s) | 255900 |
To find all of the appropriate accessories for your valve, be sure to look at the manuals attached.
For example, the MD2 valve manual has lists of static mixer options, shrouds, nose pieces, and more. The below accessories are just suggestions.
| MD2 Valve Accessories | Assembly Number | |
|---|---|---|
| Remote Solenoid Valve Kit (Must select with MD2) | 26C485 | Select 1 or none |
| MD2 Valve Restrictor kit | 25B185 | Select 2 or none |
| Foot Switch Assembly | 255244 | Select 1 or none |
| Handle/Hanger Assembly | 255273 | Select 1 or none |
B) The Voltex Valve is for dynamic mixing of materials that require the added kinetic energy for proper reactions; most commonly found in foaming materials
Please use the Voltex manual to verify that you have all needed parts and accessories for your application. Examples include orifice kits, pressure transducers, and tip valve kits.
| Voltex Systems | PN | Select only 1 |
|---|---|---|
| Voltex, Table Top, EFR | 25U256 | |
| Voltex, Table Top, EFR, Recirc/Base Purge | 25U257 | |
| Voltex, Wall Mount, EFR | 25U258 | |
| Voltex, Wall Mount, EFR, Recirc/Base Purge | 25U259 |
More accessories can be found in the EFR parts manual.
| CGM Kits | Part Number | Optional Selection |
|---|---|---|
| Ethernet/IP | 26A700 | |
| Profinet or Devicenet | 26A702 |
Hoses & Fittings for Z-Pumps to MD2 Valves:
| Hoses & Fittings Size | PN for Hose | PN for Z-Pump to Hose Fitting | PN for Hose to MD2 Valve Fitting |
|---|---|---|---|
| 15 FT 2mm | 17K152 | EKH001 | EKN001 |
| 10ft 1/8in | 25E525 | EKH001 | EKN001 |
| 10ft 3/16in | 16C506 | EKH001 | EKN001 |
| 10ft 1/4in | 16C515 | EKH002 | EKN002 |
| 10ft 5/16in | 16K817 | EKH003 | EKN003 |
| 10ft 3/8in | 17K284 | EKH004 | EKN004 |
| 10ft 1/2in | 17K263 | EKH005 | EKN005 |
| 10ft 5/8in | 17K266 | EKH006 | EKN006 |
| 10ft 3/4in | 17K273 | EKH007 | EKN007 |
Hoses & Fittings for Supply Pumps to Z-Pumps:
| Hoses & Fittings Size | PN for Hose | PN for Supply Pump to Hose Fitting | PN for Hose to Z-Pump Fitting |
|---|---|---|---|
| 10ft 3/4in | 17K273 | EKA001 | EKE001 |
| 10ft 1in | 17K278 | EKA002 | EKA002 |
| 15ft 3/4in | 17K247 | EKA001 | EKE001 |
| 15ft 1in | 17K279 | EKA002 | EKA002 |
Choosing spare parts to keep on hand is an important decision to make as part of your facility’s operational needs.
The primary wear parts of the EFR are contained in the Z-Pumps and the dispense valve you have chosen.
All of the rebuild kits for Z-Pumps are shown in the below manuals, some recommendations for spare parts are below:
Common Severe Duty Z-Pump Spare Parts - S1/S3/S4 A0281V
| Spare Part Options | Part Numbers | Select Needed Spare Parts |
|---|---|---|
| Check Valve O-Ring Kit | 258776 | |
| Check Valve Rebuild for all S4 Pumps | 25B124 | |
| U-Cip Repair Kits & Displacement Rod Kits | L010S4 - 258923 - 258924 L040S4 - 258793 - 258794 L080S4 - 258811 - 258812 L100S4 - 258817 - 258818 L160S4 - 258829 - 258830 | |
Common Elite Z-Pump Spare Parts - Manual 3A8563
| Spare Part Options | Part Numbers | Select Needed Spare Parts |
|---|---|---|
| Check Valve O-Ring Kit | 258776 | |
| Check Valve Full Rebuild Kit | 25B123 | |
| U-Cip Repair Kits & Displacement Rod Kits | L040S8 - 25B822 - 25B823 L080S8 - 26B829 - 26B830 L100S8 - 26B835 - 26B836 L160S8 - 25B847 - 26B848 | |
Recommended Rebuild Kits for your dispense valve are shown below with more options available in the manuals:
Common MD2 Repair Kits: MD2
| Spare Part Options | Part Numbers | Select Needed Spare Parts |
|---|---|---|
| Soft Seat O-Ring “Super Repair Kit” | 17T040 | |
| Hard Seat O-Ring “Super Repair Kit” | 17T039 | |
| Elite MD2 Valve (255900), adjustable stroke Repair Kit | 26D516 | |
| Elite MD2 Valve (255901 and 255902), non-adjustable stroke Repair Kit | 26D517 | |
Common Voltex Repair Kits: Voltex
| Spare Part Options | Part Numbers | Select Needed Spare Parts |
|---|---|---|
| Rotary Seal Kit | 25V053 | |
| Bearing Shaft Kit | 25V054 | |
| Check Valve Kit | 25T723 | |
To meet even more stringent zero downtime goals, Graco recommends keeping spare Z-Pumps and dispensing valves on hand for quick change-outs without a rebuild. Simply increase the quantity of Z-Pumps or dispense valves you are ordering to keep these on the shelf and ready for use!
Z-Pumps
Dispense Valves
Inlet Regular Kits (if applicable)
Every application and use case is different, so be sure to consult your local Graco distributor regarding maintenance and spare parts recommendations after they review your unique needs and application.
Contact Us
Finalize Your Configuration
We can ensure that all needed options are covered. We'll work with you to understand how this fits into your full system.
