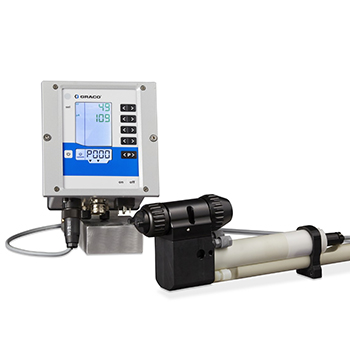

Pro Xpc Automatic Electrostatic Spray Guns
These resources will help you get the most out of your Graco Pro Xpc Auto. The automatic applicator is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance.
Installation / setup
Operation
Manuals
Download instructions and guides for automatic electrostatic sprayers, communication modules, controllers, and systems.
Service
Software Upgrade Files
ELECTROSTATIC CONTROLLER VERSION 2.09.0
Download Zip File
Right-click on above link and select "Save Link As..." or "Save Target As..." to download this software version.
333266, Pro Xpc™ Auto Controller, Instructions
Refer to the "Repair: Software Update" section of this manual while upgrading software.
System Software: 17J278 Series C, Revision G
Release Date: February 11, 2021
Component Part Numbers and Versions:
- Main Processor: Version 2.09.0
- Gun Controller: Version 2.15.7
Change History
- Main controller updates: Discharge Timer C2 is used for H12 errors. If C2 is < 3s, then the minimum delay time of 3s is applied. This change reduces nuisance H12 errors on system discharge, especially in waterborne systems.
- Gun controller updates: Fixes nuisance H95 errors
Same files as ProBell version 2.09.0
Note: Software upgrade token does not update software on Pro Xpc Electrostatic Controller. This software must be upgraded using a MicroSD card and the files in the .zip file available for download on the product website.
Webinars
Pro Xpc Auto Air Spray Guns
Whether you use the automatic electrostatic sprayer on a robot or fixture, learn how to properly maintain and repair it.
The Quest for Paint Line Automation
This 38-minute webinar equips you with ways make the case for automation and real-life examples of how manufacturers automate some of all of their paint lines.
