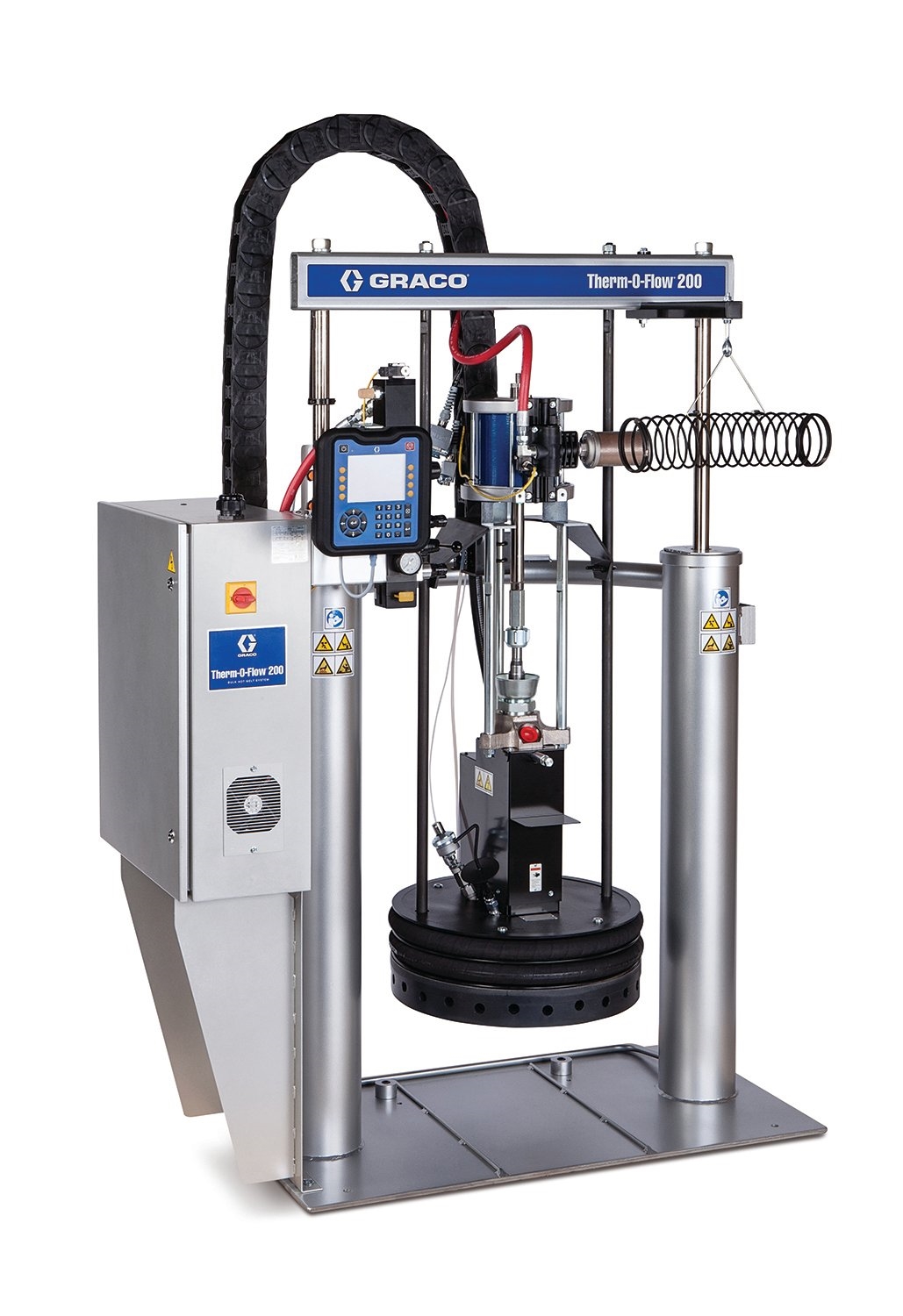

Therm-O-Flow 200
Therm-O-Flow hot melt bulk system for 200L (55 gal) drums
Part Number: TOF200
Therm-O-Flow 200
Therm-O-Flow hot melt bulk system for 200L (55 gal) drums
Part Number: TOF200
With throughput capability 200% better than the leading competitor, Therm-O-Flow® bulk hot melt systems from Graco outperform the competition time after time and provide the best performing industrial bulk melt systems on the market. Therm-O-Flow’s advanced temperature control capability virtually e...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
With throughput capability 200% better than the leading competitor, Therm-O-Flow® bulk hot melt systems from Graco outperform the competition time after time and provide the best performing industrial bulk melt systems on the market. Therm-O-Flow’s advanced temperature control capability virtually eliminates overheated material, resulting in better adhesive quality and reduced rework due to degraded material.
- The ultimate hot melt bulk system
- Highest throughput in the industry
- Provides accurate temperature control of 4, 8 or 12 customer defined heat zones
- Main unit easily integrates with a second Therm-O-Flow 200 or Therm-O-Flow 20 for tandem operation (up to 24 customer defined heat zones
- Combine multiple Therm-O-Flow 200 units in parallel for even higher flow rates
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/2 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Construction | Carbon Steel, Brass, Chrome, Zinc Plating, Nickel Plating, 304 Stainless Steel, 316 Stainless Steel, 440 Stainless Steel, 14-4 PH Stainless Steel, Alloy Steel, Ductile Iron, PTFE |
| Effective Area (in²) | 1.24 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Frequency (Hz) | 50/60 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Compressed Air (SCFM) | 25-50 |
| Maximum Fluid Working Pressure (MPa) | 20.68 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Input Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 400 |
| Model | Therm-O-Flow |
| Peak Consumption (kVa) | 25, 28, 25 |
| Phase | 3 |
| Power Input (V) | 220/240, 380/400, 470/490, 575 |
| Pump Cycles Per 1 gal | 21 |
| Series | 200 |
| Type | Dispensing System |
| Volume Per Cycle (in³) | 11.7 |
| Weight (lb) | 1200 |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Construction | Carbon Steel, Brass, Chrome, Zinc Plating, Nickel Plating, 304 Stainless Steel, 316 Stainless Steel, 440 Stainless Steel, 14-4 PH Stainless Steel, Alloy Steel, Ductile Iron, PTFE |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Frequency (Hz) | 50/60 |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Working Pressure (MPa) | 20.68 |
| Maximum Fluid Working Pressure (bar) | 206.8 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Input Pressure (psi) | 125 |
| Maximum Operating Temperature (°C) | 204 |
| Model | Therm-O-Flow |
| Peak Consumption (kVa) | 25, 28, 25 |
| Phase | 3 |
| Power Input (V) | 220/240, 380/400, 470/490, 575 |
| Pump Cycles Per 1 gal | 21 |
| Series | 200 |
| Type | Dispensing System |
| Weight (kg) | 54.4800 |
