Pro Xpc Auto
Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for solventborne material, 100 kV
Part Number: LC1020
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Pro Xpc Auto
Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for solventborne material, 100 kV
Part Number: LC1020
Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility ...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility of the client, who can spray with a wide variety of shapes and sizes.

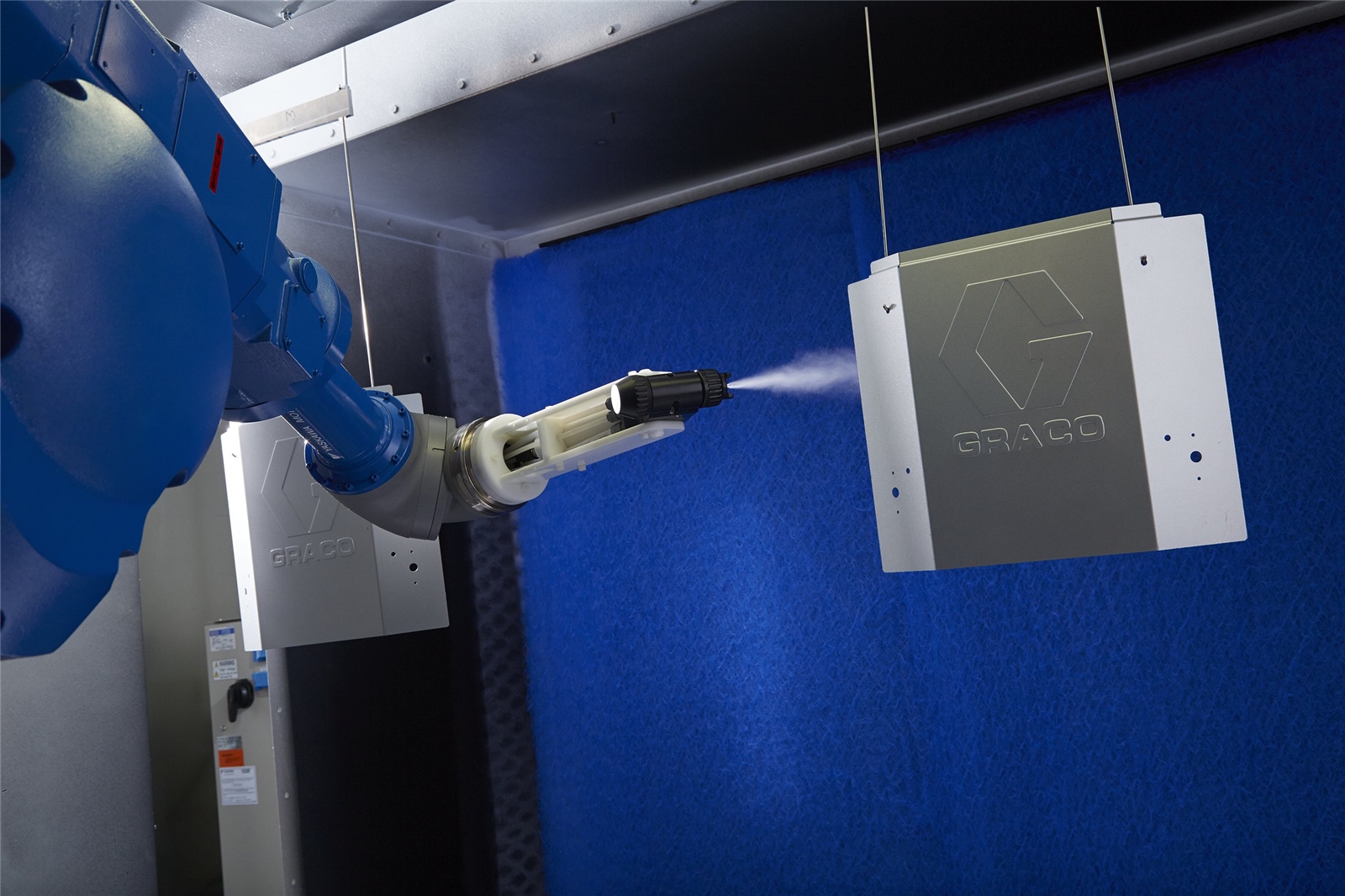

- Robot friendly with a weight and size that allows robots greater reach capabilities
- Improve processes with switch box that makes spraying flexible
- Invest in safer equipment with design features that reduce risks
- Maximize profits with patent pending charge points for high transfer efficiency and reduced material usage
- System integration with nozzle tips to assemble a robot movement system or fixture
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Application | Electrostatic, Solventborne |
| Applicator Type | Automatic |
| Coating Type | Solventborne |
| Compatible Paint Type | Solventborne |
| Fluid Inlet Size (in) | 1/4 |
| For Use With | Pro Xpc Auto Control Module |
| Gun Activation | Automatic |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.2 |
| Gun Weight (oz) | 19.22 |
| Manifold Type | Rear |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xpc |
| Nozzle Size (in) | 0.055 |
| Overall Length (in) | 5.7 |
| Series | Auto |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 100 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Application | Electrostatic, Solventborne |
| Applicator Type | Automatic |
| Coating Type | Solventborne |
| Compatible Paint Type | Solventborne |
| Fluid Inlet Size (in) | 1/4 |
| For Use With | Pro Xpc Auto Control Module |
| Gun Activation | Automatic |
| Gun Type | Electrostatic |
| Gun Weight (g) | 545 |
| Gun Weight (kg) | 0.545 |
| Gun Weight (oz) | 19.22 |
| Manifold Type | Rear |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | Infinity |
| Minimum Paint Resistivity (megohm/cm) | 1 |
| Model | Pro Xpc |
| Nozzle Size (cm) | 0.15 |
| Nozzle Size (mm) | 1.5 |
| Overall Length (cm) | 14.48 |
| Overall Length (mm) | 144.8 |
| Series | Auto |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 100 |
Product Manuals
Sales Literature
Certifications
Setup & Service Videos
Learn how to set up your Pro Xpc automatic electrostatic spray gun and keep it working well. Playlist begins with three videos about setting up the controller and connections. The last two videos show disassembly and assembly for service and maintenance.
