Pro Xp 40
Pro Xp WBx Air Spray Manual Waterborne External Charge Electrostatic Gun, 40 kV, standard display
Part Number: L40T28

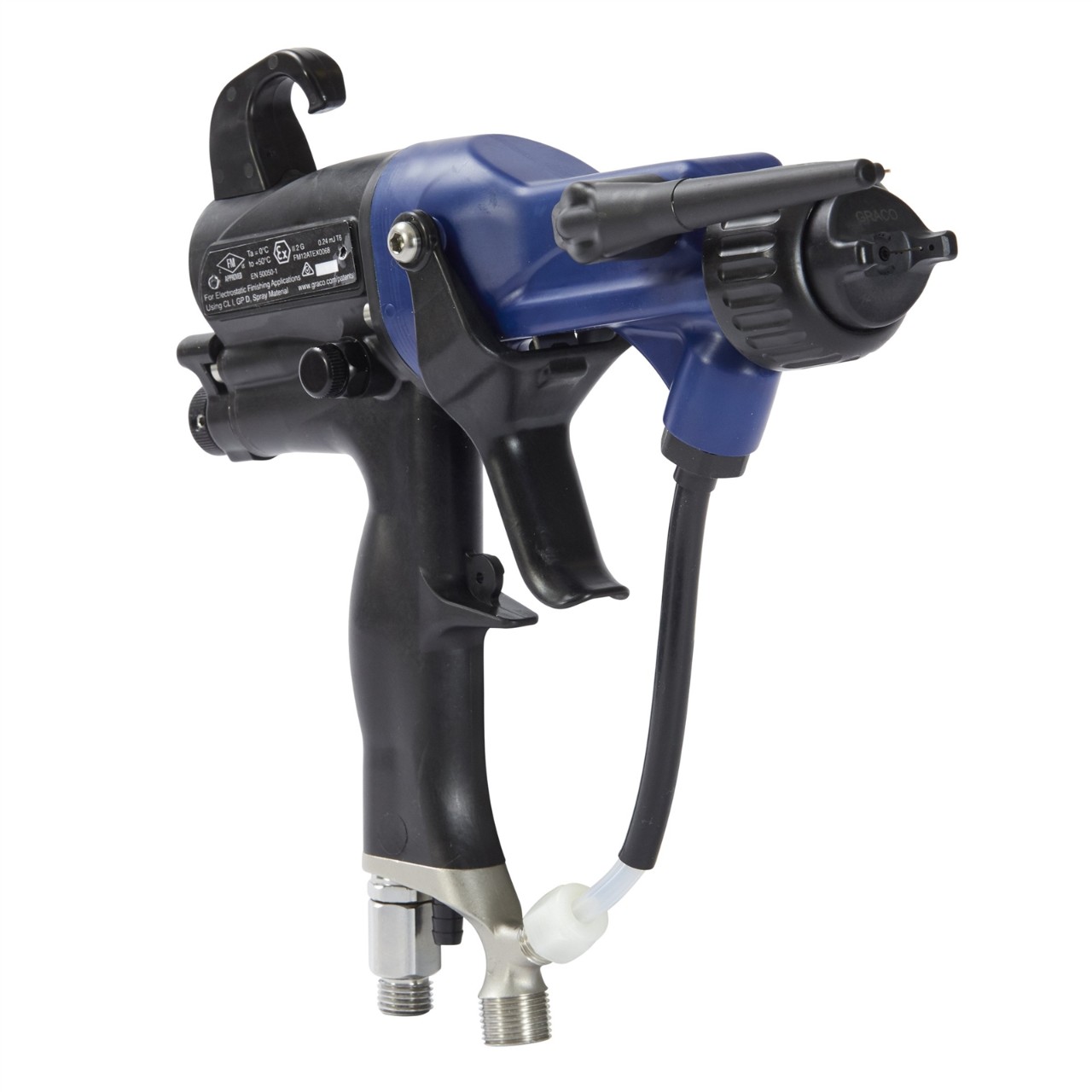

Image is for illustrative purposes only.
Pro Xp 40
Pro Xp WBx Air Spray Manual Waterborne External Charge Electrostatic Gun, 40 kV, standard display
Part Number: L40T28
Externally charged waterborne air spray gun reduces material and environmental costs without the expense and limitations of an electrostatic isolation system.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertCase Study: Automotive Manufacturer
Painters Prove Pivotal in Waterborne Electrostatic Gun Design
Factory feedback strengthens durability of new externally charged paint gun model. Probe options meet different primer needs.
Features
Product Brochure
Externally charged waterborne air spray gun reduces material and environmental costs without the expense and limitations of an electrostatic isolation system.
For spraying conductive, waterborne fluids – no isolation system needed
- Waterborne material stays grounded in the gun and is charged at the tip of the electrostatic spray gun with the assistance of a probe.
- Two probe options meet different needs. The long probe provides the best transfer efficiency and wrap. The shorter probe is for low profile electrostatic charging.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/5 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Waterborne |
| Applicator Type | Manual |
| Coating Type | Waterborne |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.39 |
| Gun Weight (oz) | 22.24 |
| Includes | Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Nozzle Size (in) | 0.047 |
| Overall Length (in) | 8.7 |
| Product Series | A |
| Series | 40 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 40 |
| Air Inlet Size (cm) | 0.636 |
| Air Inlet Size (in) | 1/5 |
| Air Inlet Size (mm) | 6.36 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Waterborne |
| Applicator Type | Manual |
| Coating Type | Waterborne |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 631 |
| Gun Weight (kg) | 0.631 |
| Gun Weight (oz) | 22.24 |
| Includes | Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7.0 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | 1 |
| Minimum Paint Resistivity (megohm/cm) | 0 |
| Model | Pro Xp |
| Nozzle Size (cm) | 0.12 |
| Nozzle Size (mm) | 1.2 |
| Overall Length (cm) | 22.1 |
| Overall Length (mm) | 221 |
| Product Series | A |
| Series | 40 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 40 |
Overview & Operation Videos
See how externally charged electrostatic paint spray guns work.
