Pro Xp Auto

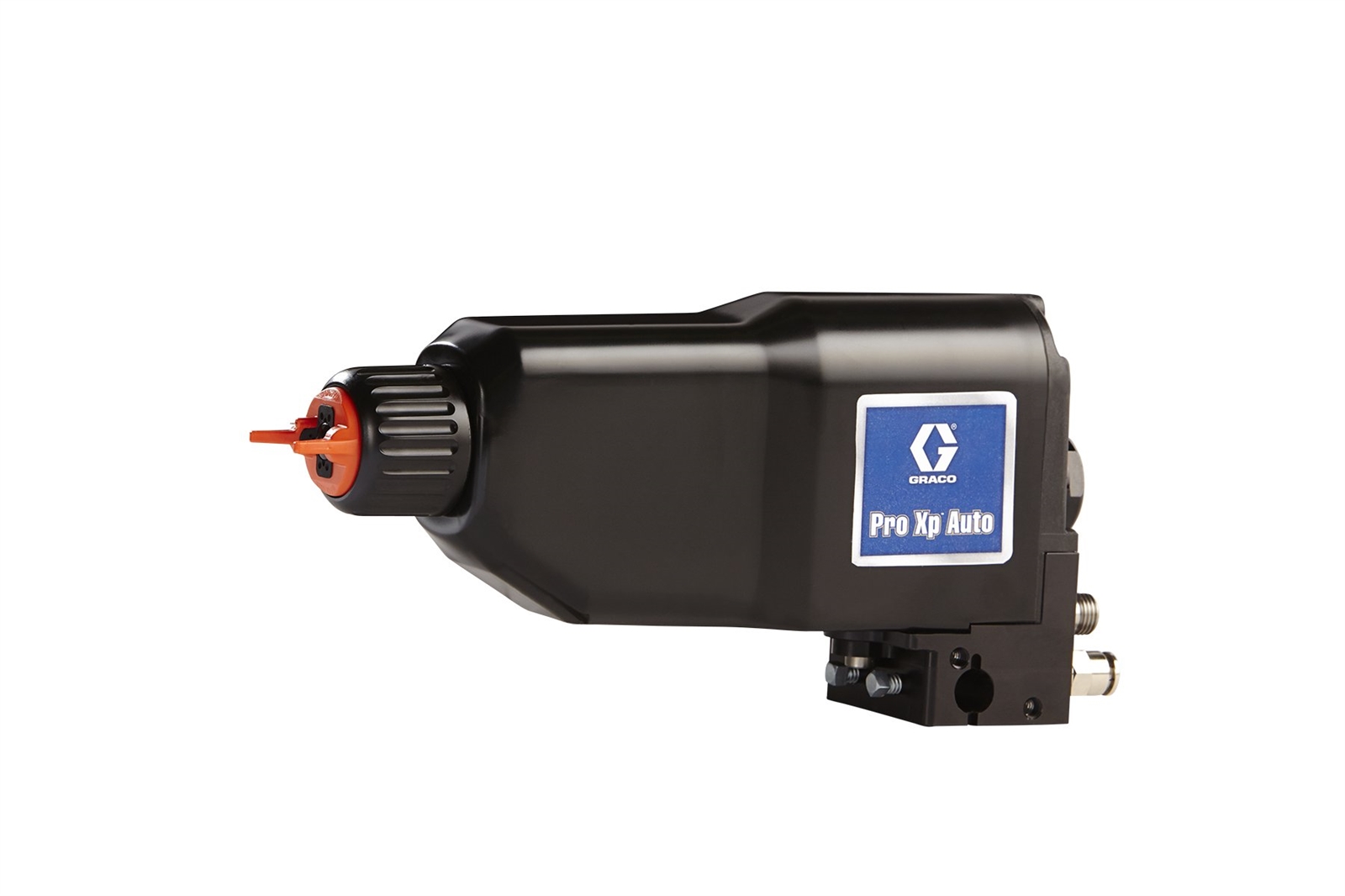

Pro Xp Auto Air-Assist Electrostatic Spray Gun, standard model, with rear manifold, 85 kV, includes AEM or AEF tip of choice
Part Number: HA1T10
Image is for illustrative purposes only.
Pro Xp Auto
Pro Xp Auto Air-Assist Electrostatic Spray Gun, standard model, with rear manifold, 85 kV, includes AEM or AEF tip of choice
Part Number: HA1T10
Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for high pressure spraying designed to improve t...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a high quality finish.
- Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
- Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
- 85 kV power supply and internal power so there's no electrical cord to worry about damaging or replacing
- Higher transfer efficiency equals less waste, saving you money on material
- Durable components reduce cost of ownership, supported by a three year warranty
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Automatic |
| Coating Type | Standard |
| Compatible Paint Type | Solventborne |
| Display Type | Standard |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| For Use With | Pro Xp Auto Control Module |
| Gun Activation | Automatic |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 2.64 |
| Gun Weight (oz) | 42.24 |
| Manifold Type | Rear |
| Maximum Fluid Pressure (MPa) | 21 |
| Maximum Fluid Pressure (psi) | 3000 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Overall Length (in) | 11 |
| Series | Auto |
| Spray Type | Electrostatic |
| Technology Type | Air-Assisted |
| Type | Electrostatic Gun |
| Voltage (kV) | 85 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Automatic |
| Coating Type | Standard |
| Compatible Paint Type | Solventborne |
| Display Type | Standard |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| For Use With | Pro Xp Auto Control Module |
| Gun Activation | Automatic |
| Gun Type | Electrostatic |
| Gun Weight (g) | 1197 |
| Gun Weight (kg) | 1.2 |
| Gun Weight (oz) | 42.24 |
| Manifold Type | Rear |
| Maximum Fluid Pressure (MPa) | 21 |
| Maximum Fluid Pressure (bar) | 210 |
| Maximum Fluid Pressure (kPa) | 21000 |
| Maximum Fluid Pressure (psi) | 3000 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | Infinity |
| Minimum Paint Resistivity (megohm/cm) | 3 |
| Model | Pro Xp |
| Overall Length (cm) | 27.94 |
| Overall Length (mm) | 279.4 |
| Series | Auto |
| Spray Type | Electrostatic |
| Technology Type | Air-Assisted |
| Type | Electrostatic Gun |
| Voltage (kV) | 85 |
Repair Parts
| Part No. | Description |
|---|---|
| 24N279 | Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end |
| 24N615 | Fluid Nozzle for Standard Materials- 1.20 mm Orifice Size |
| 24N616 | Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size |
| 24N617 | Fluid nozzle, for standard coatings, 1.8 mm (.070 inch) Orifice Size, Black |
| 24N655 | 85 kV Packing Rod Assembly |
| 24N438 | Air Cap, Black, similar to the standard air cap with an alternate arrangement of atomizing air, light to medium viscosity, round end |
| 24N704 | High Wear Electrode Needle Kit |
| 24N727 | Air Cap Assembly Kit for Pro Xp Air-Assisted Gun |
| 24N706 | Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun |
| 24N664 | Turbine Assembly Kit |
| 24N477 | Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end |
| 24N622 | High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue |
| 24N623 | High Wear Fluid Nozzle for Abrasive Materials- 1.50 mm Orifice Size |
| 24N376 | Air Cap, Black, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end |
| 24N614 | Fluid nozzle, for standard coatings, 1.0 mm (.042 inch) Orifice Size, Black |
Recommended Accessories
Service & Connection Videos
See how to disassemble, reassemble and connect your Pro Xp Auto Air-Assist (AA) Spray Gun so that the automatic electrostatic applicator continues to work well.
