Pro Xp 60
Pro Xp60 Air Assist Manual Electrostatic Gun, 60 kV, with standard display, standard coatings, includes AEM or AEF tip of choice
Part Number: H60T10

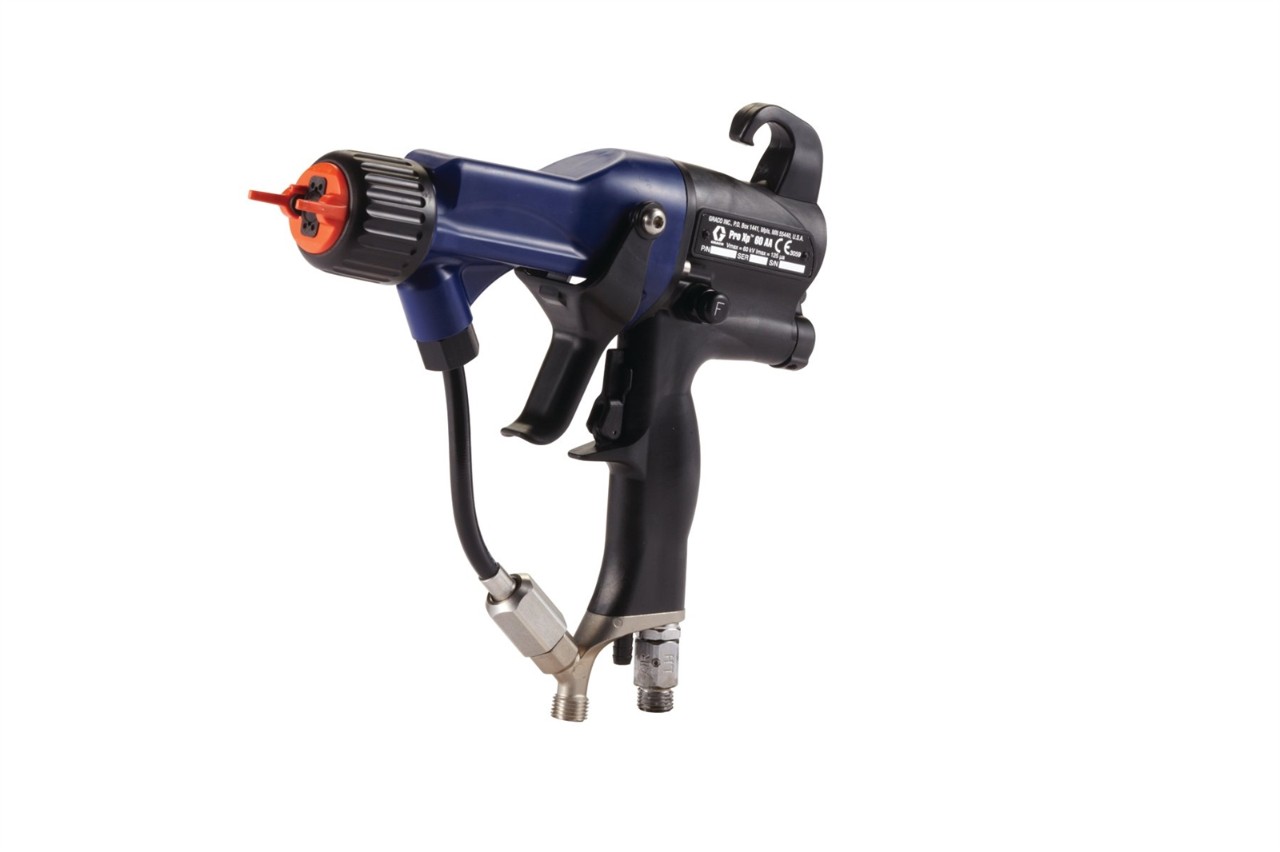

Image is for illustrative purposes only.
Pro Xp 60
Pro Xp60 Air Assist Manual Electrostatic Gun, 60 kV, with standard display, standard coatings, includes AEM or AEF tip of choice
Part Number: H60T10
Pro Xp60 kV air-assist gun is the smallest and lightest electrostatic air-assist gun on the market – delivering a consistent, high quality finish every time you spray. Pro Xp60 AA gun line includes Standard, Smart and Waterborne models.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Pro Xp60 kV air-assist gun is the smallest and lightest electrostatic air-assist gun on the market – delivering a consistent, high quality finish every time you spray. Pro Xp60 AA gun line includes Standard, Smart and Waterborne models.
- High quality spray performance with a one-piece aircap and variety of spray tips
- Transfer efficiency is improved over conventional air-assist guns
- Made in the USA
- The smallest profile gun with internal power supply on the market – 1 inch (2.5 cm) shorter and 4 oz (110 g) lighter
- Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard |
| Compatible Paint Type | Epoxy, High Solids, Lacquers, Plural Component Materials, Polyurethanes, Solventborne, Urethanes, UV Curing, Varnishes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.46 |
| Gun Weight (oz) | 23.28 |
| Includes | Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 21 |
| Maximum Fluid Pressure (psi) | 3000 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Overall Length (in) | 9.7 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air-Assisted |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard |
| Compatible Paint Type | Epoxy, High Solids, Lacquers, Plural Component Materials, Polyurethanes, Solventborne, Urethanes, UV Curing, Varnishes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 660 |
| Gun Weight (kg) | 0.66 |
| Gun Weight (oz) | 23.28 |
| Includes | Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 21 |
| Maximum Fluid Pressure (bar) | 210 |
| Maximum Fluid Pressure (kPa) | 21000 |
| Maximum Fluid Pressure (kg/cm²) | 214.14 |
| Maximum Fluid Pressure (psi) | 3000 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | Infinity |
| Minimum Paint Resistivity (megohm/cm) | 3 |
| Model | Pro Xp |
| Overall Length (cm) | 24.64 |
| Overall Length (mm) | 246.4 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air-Assisted |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
Product Manuals
Sales Literature
Certifications
Repair Parts
| Part No. | Description |
|---|---|
| 24T304 | Atomizing Air Restrictor Valve Assembly |
| 24N477 | Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end |
| 24N614 | Fluid nozzle, for standard coatings, 1.0 mm (.042 inch) Orifice Size, Black |
| 24N628 | 60 kV High Conductivity Kit |
| 24N727 | Air Cap Assembly Kit for Pro Xp Air-Assisted Gun |
| 24N653 | 40 kV Packing Rod Assembly |
| 24N706 | Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun |
| 24N789 | Air Seal Repair Kit |
| 24N615 | Fluid Nozzle for Standard Materials- 1.20 mm Orifice Size |
| 24N634 | Standard Fan Air Adjustment Valve Kit |
| 24N654 | 60 kV Packing Packing Rod Assembly |
| 24N790 | Fluid Seal Repair Kit |
| 24N279 | Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end |
| 24N438 | Air Cap, Black, similar to the standard air cap with an alternate arrangement of atomizing air, light to medium viscosity, round end |
| 24N616 | Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size |
| 24N655 | 85 kV Packing Rod Assembly |
| 24N664 | Turbine Assembly Kit |
| 24N376 | Air Cap, Black, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end |
| 24N617 | Fluid nozzle, for standard coatings, 1.8 mm (.070 inch) Orifice Size, Black |
| 24N622 | High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue |
| 24N623 | High Wear Fluid Nozzle for Abrasive Materials- 1.50 mm Orifice Size |
| 24N629 | High Conductivity Fluid Tube Kit for 85 kV guns, to convert a standard Pro Xp air spray gun to a HC gun |
| 24N630 | ES On-Off and Fluid Adjustment Valve Kit |
| 24N633 | Plastic Trigger Kit |
| 24N704 | High Wear Electrode Needle Kit |
Recommended Accessories
Setup & Service Videos
Learn how to keep your Pro Xp Air-Assisted Electrostatic Spray Gun performing well. Service video playlist starts with parts animation, continues with gun setup, disassembly, assembly, and then ends with comparison without and with electrostatics on.
