Husky 716

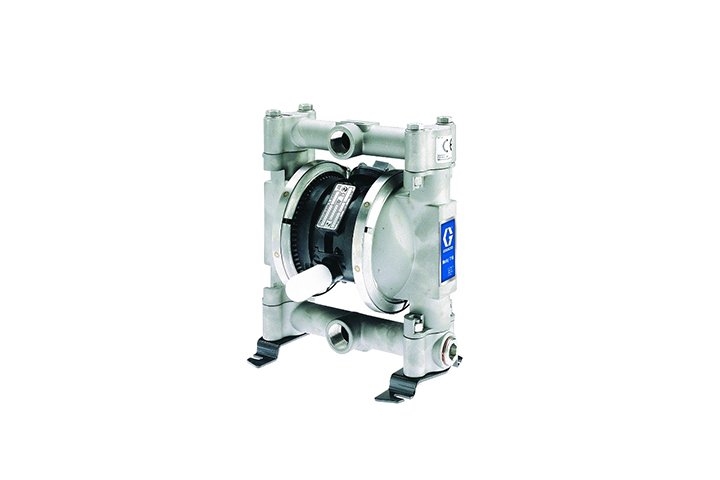

Husky 716 SS (3/4 in. BSP) Remote Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm
Part Number: D44211
![product image](/content/dam/pim/graco/pro/pte/Husky%20716%20SS.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Husky 716
Husky 716 SS (3/4 in. BSP) Remote Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm
Part Number: D44211
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
- Center- and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- 3/4 in (19.05 mm) center- and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
Specifications & Documents
Technical Specifications
Convert to MetricAir Exhaust Port Size (in) | 3/8 |
---|---|
Air Exhaust Port Thread Gender | Female |
Air Exhaust Port Thread Type | NPT |
Air Inlet Size (in) | 1/4 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Industrial |
Ball Material | PTFE |
Center Section Material | Polypropylene |
Compatible Material | Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
Connection Type | Threaded |
Diaphragm Compatible Material | PTFE |
Diaphragm Material | PTFE/EPDM 2-Piece |
Fluid Inlet Size (in) | 3/4 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (in) | 3/4 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Fluid Section Material | Aluminum |
Manifold Configuration | Center Port |
Manifold O-Ring Material | PTFE |
Material | Aluminum |
Maximum Air Consumption (SCFM) | 28 |
Maximum Air Pressure (MPa) | 0.7 |
Maximum Air Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 400 |
Maximum Flow Rate (GPM) | 16 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Operating Temperature (°F) | 225 |
Maximum Solid Size (in) | 0.09375 |
Minimum Operating Temperature (°F) | 40 |
Model | Husky |
Overall Height (in) | 10.43 |
Power Source | Air |
Seat Material | Acetal |
Series | 716 |
Standards Met | ATEX, CE |
Type | Pneumatic Diaphragm Pump |
Weight (lb) | 18 |
Air Exhaust Port Size (in) | 3/8 |
Air Exhaust Port Thread Gender | Female |
Air Exhaust Port Thread Type | NPT |
Air Inlet Size (in) | 1/4 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Industrial |
Ball Material | PTFE |
Center Section Material | Polypropylene |
Compatible Material | Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
Connection Type | Threaded |
Diaphragm Compatible Material | PTFE |
Diaphragm Material | PTFE/EPDM 2-Piece |
Fluid Inlet Size (cm) | 1.905 |
Fluid Inlet Size (in) | 3/4 |
Fluid Inlet Size (mm) | 19.05 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (cm) | 1.905 |
Fluid Outlet Size (in) | 3/4 |
Fluid Outlet Size (mm) | 19.05 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Fluid Section Material | Aluminum |
Manifold Configuration | Center Port |
Manifold O-Ring Material | PTFE |
Material | Aluminum |
Maximum Air Pressure (MPa) | 0.7 |
Maximum Air Pressure (bar) | 7 |
Maximum Air Pressure (kPa) | 700 |
Maximum Air Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 400 |
Maximum Flow Rate (L/min) | 60.6 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (bar) | 7 |
Maximum Fluid Pressure (kPa) | 700 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Operating Temperature (°C) | 107 |
Maximum Solid Size (cm) | 0.2383 |
Maximum Solid Size (mm) | 2.4 |
Minimum Operating Temperature (°C) | 4 |
Model | Husky |
Power Source | Air |
Seat Material | Acetal |
Series | 716 |
Standards Met | ATEX, CE |
Type | Pneumatic Diaphragm Pump |
