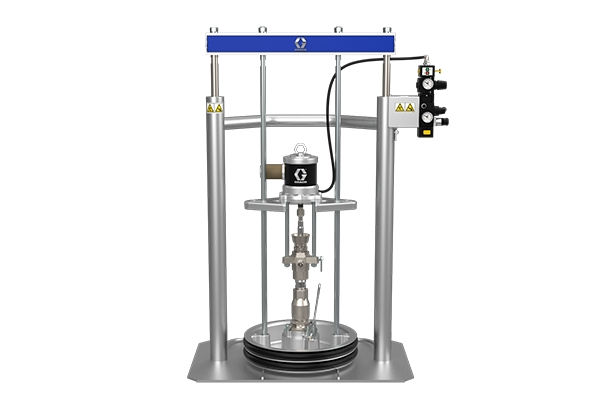

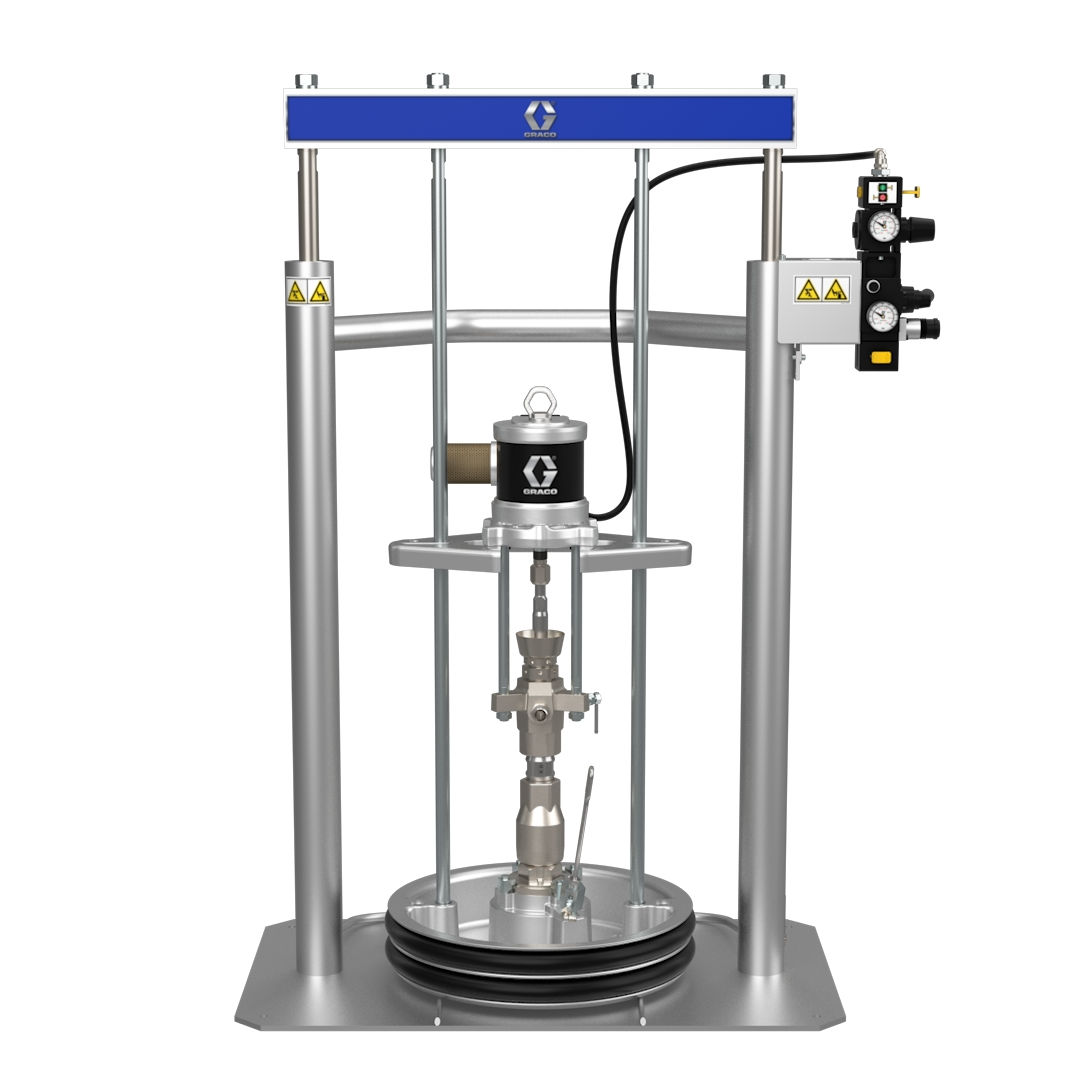

Check-Mate D200
200 L D200 Supply System
Part Number: CM7A59
Check-Mate D200
200 L D200 Supply System
Part Number: CM7A59
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials
- For large drums up to 200 liter (55 gal)
- Graco D200 - For high-volume in-plant applications
- Industry-first controls give you immediate and important information at the touch of a button
- Quick placement of drum
- Platen wipers can be replaced in seconds
- Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
Specifications & Documents
Technical Specifications
Convert to Metric| Ambient/Warm Melt/Hot Melt | Ambient |
|---|---|
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Construction | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, PTFE, Neoprene, Aluminum, Zinc-Plated Carbon Steel |
| Container Type | Drum |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (GPM) | 0.9 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Height (ft) | 8.53 |
| Maximum Height (in) | 102.3 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 13.8 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Height (ft) | 5.4 |
| Minimum Height (in) | 64.8 |
| Model | Check-Mate |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Platen Material | Aluminum |
| Platen Size (Gal) | 55 |
| Platen Size (L) | 200 |
| Platen Style | Dual O-Ring |
| Power Type | Pneumatic |
| Pump Ratio | 20:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Ram Post Diameter (in) | 3 |
| Seal Material | EPDM |
| Series | D200 |
| Type | Supply Unit |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Construction | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, PTFE, Neoprene, Aluminum, Zinc-Plated Carbon Steel |
| Container Type | Drum |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (kg/cm²) | 10.55 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (L/min) | 3.4 |
| Maximum Fluid Pressure (bar) | 137.9 |
| Maximum Fluid Pressure (kPa) | 13790 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Height (cm) | 259.9 |
| Maximum Height (m) | 2.6 |
| Maximum Height (mm) | 2599 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (MPa) | 13.8 |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (kPa) | 13800 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Height (cm) | 164.6 |
| Minimum Height (m) | 1.65 |
| Minimum Height (mm) | 1646 |
| Model | Check-Mate |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 106.7 |
| Overall Width (mm) | 1067 |
| Platen Material | Aluminum |
| Platen Size (Gal) | 55 |
| Platen Size (L) | 200 |
| Platen Style | Dual O-Ring |
| Power Type | Pneumatic |
| Pump Ratio | 20:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Seal Material | EPDM |
| Series | D200 |
| Type | Supply Unit |
