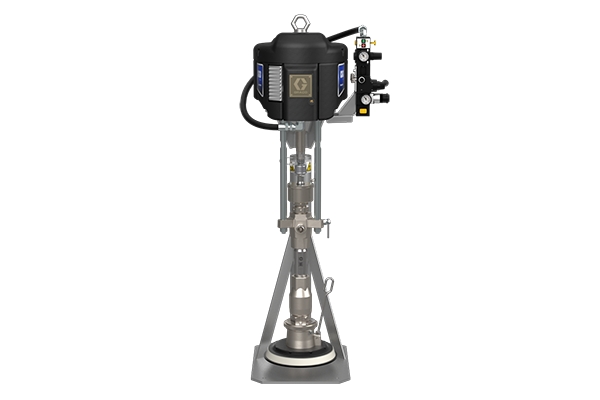

Check-Mate S20
63:1 Ratio 20 L S20 Supply Unit
Part Number: CM153B
Check-Mate S20
63:1 Ratio 20 L S20 Supply Unit
Part Number: CM153B
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
In Stock & Ready to Ship
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials
- 20 liter (5-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
- Graco S20 - For low-volume applications of medium to high-viscosity materials
- Industry-first controls give you immediate and important information at the touch of a button
- Quick placement of pail
- Platen wipers can be replaced in seconds
- Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
Specifications & Documents
Technical Specifications
Convert to Metric| Ambient/Warm Melt/Hot Melt | Ambient |
|---|---|
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Construction | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, Polyurethane, Nitrile Rubber, Polyethylene, Zinc-Plated Carbon Steel, Buna-N |
| Container Type | Pail |
| Material Container Volume (gal) | 5.3 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Fluid Pressure (psi) | 6300 |
| Maximum Height (ft) | 4.94 |
| Maximum Height (in) | 59.3 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 44.1 |
| Maximum Working Pressure (psi) | 6300 |
| Minimum Height (ft) | 2.98 |
| Minimum Height (in) | 35.8 |
| Model | Check-Mate |
| Overall Depth (in) | 19 |
| Overall Width (in) | 17 |
| Platen Material | Carbon Steel |
| Platen Size (Gal) | 5 |
| Platen Size (L) | 20 |
| Platen Style | Flat, Single Wiper |
| Power Type | Pneumatic |
| Pump Ratio | 63:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Ram Post Diameter (in) | 3 |
| Seal Material | Nitrile |
| Series | S20 |
| Type | Supply Unit |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Construction | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, Polyurethane, Nitrile Rubber, Polyethylene, Zinc-Plated Carbon Steel, Buna-N |
| Container Type | Pail |
| Material Container Volume (l) | 20 |
| Maximum Air Inlet Pressure (bar) | 8.62 |
| Maximum Air Inlet Pressure (kPa) | 862 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.79 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (L/min) | 6.1 |
| Maximum Fluid Pressure (bar) | 434.4 |
| Maximum Fluid Pressure (kPa) | 43440 |
| Maximum Fluid Pressure (psi) | 6300 |
| Maximum Height (cm) | 150.6 |
| Maximum Height (m) | 1.51 |
| Maximum Height (mm) | 1506 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (MPa) | 44.1 |
| Maximum Working Pressure (bar) | 441 |
| Maximum Working Pressure (kPa) | 44100 |
| Maximum Working Pressure (psi) | 6300 |
| Minimum Height (cm) | 90.9 |
| Minimum Height (m) | 0.91 |
| Minimum Height (mm) | 909 |
| Model | Check-Mate |
| Overall Depth (cm) | 48.26 |
| Overall Depth (mm) | 482.6 |
| Overall Width (cm) | 43.18 |
| Overall Width (mm) | 431.8 |
| Platen Material | Carbon Steel |
| Platen Size (Gal) | 5 |
| Platen Size (L) | 20 |
| Platen Style | Flat, Single Wiper |
| Power Type | Pneumatic |
| Pump Ratio | 63:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Seal Material | Nitrile |
| Series | S20 |
| Type | Supply Unit |
