MSA 100
MSA-100™ Pneumatic Pump
Part Number: 562855

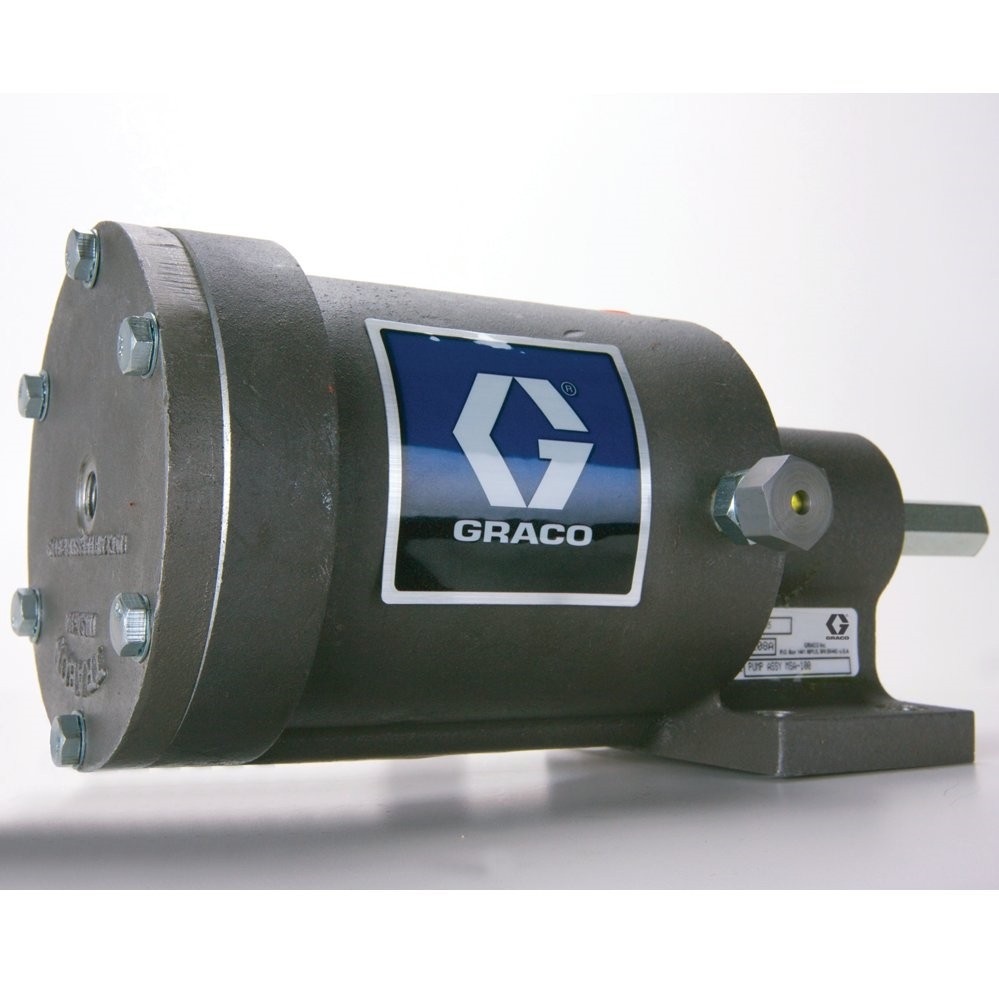

Image is for illustrative purposes only.
MSA 100
MSA-100™ Pneumatic Pump
Part Number: 562855
MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and ...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.
- Ideal for applications where space is a premium
- Handles high pressure lubricant feed of direct line intake
- Used with or without a reservoir for the ultimate flexibility
- Lubriquip part number 140-000-171
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPSF |
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Compatible Metering Device | Series Progressive |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Type | NPSF |
| Material | Aluminum |
| Maximum Air Inlet Pressure (psi) | 140 |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Maximum Fluid Output Pressure (psi) | 3000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Air Inlet Pressure (psi) | 60 |
| Model | MSA |
| Overall Depth (in) | 6.94 |
| Overall Height (in) | 5.69 |
| Overall Width (in) | 12.83 |
| Power Type | Pneumatic |
| Series | 100 |
| Type | Pneumatic Piston Pump |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPSF |
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Compatible Metering Device | Series Progressive |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Type | NPSF |
| Material | Aluminum |
| Maximum Air Inlet Pressure (bar) | 9.65 |
| Maximum Air Inlet Pressure (kPa) | 965 |
| Maximum Air Inlet Pressure (psi) | 140 |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Fill Inlet Pressure (bar) | 34.5 |
| Maximum Fill Inlet Pressure (kPa) | 3450 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Maximum Fluid Output Pressure (bar) | 207 |
| Maximum Fluid Output Pressure (psi) | 3000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 206.8 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Air Inlet Pressure (psi) | 60 |
| Model | MSA |
| Overall Depth (cm) | 17.6 |
| Overall Depth (mm) | 176 |
| Overall Height (cm) | 14.5 |
| Overall Height (mm) | 145 |
| Overall Width (cm) | 32.6 |
| Overall Width (mm) | 326 |
| Power Type | Pneumatic |
| Series | 100 |
| Type | Pneumatic Piston Pump |
