G-JR AC Operated Chemical Pump Including the Harrier EZ-JR Controller
Part Number: 25T651

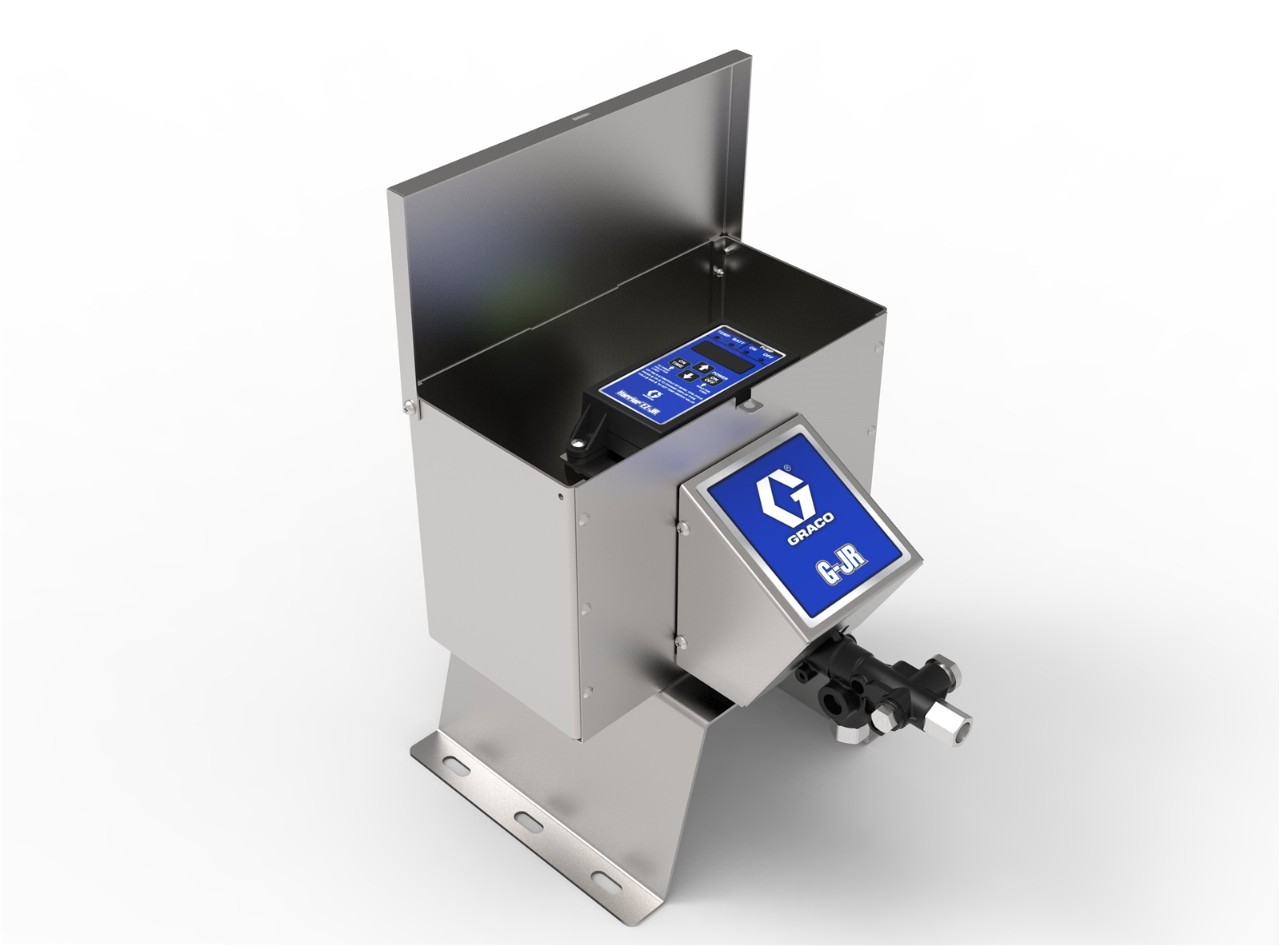

Image is for illustrative purposes only.

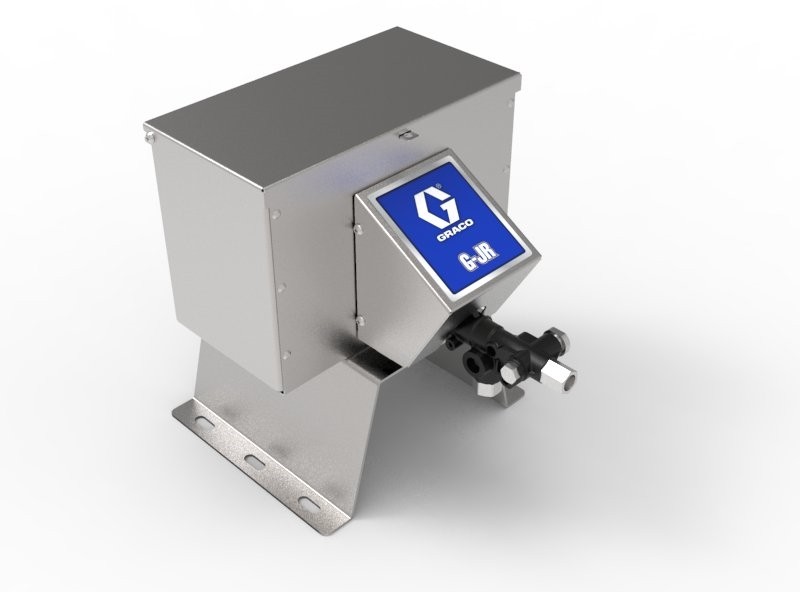

Image is for illustrative purposes only.
G-JR AC Operated Chemical Pump Including the Harrier EZ-JR Controller
Part Number: 25T651
Built with same quality standards as other Graco chemical injection pumps, the G-JR is simple to
operate, easy to service and offers the lowest up front cost. Offered in DC solar or AC electric, the pumps
come standard with the Harrier™ EZ-JR controller which offers a similar set of features as the ...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Built with same quality standards as other Graco chemical injection pumps, the G-JR is simple to
operate, easy to service and offers the lowest up front cost. Offered in DC solar or AC electric, the pumps
come standard with the Harrier™ EZ-JR controller which offers a similar set of features as the current
Harrier EZ controller.
Low flow rate, entry level chemical pump
- One seal material option
- Harrier EZ-JR controls injection rates with optional temperature based dosing
- Ideal for chemicals with pH levels between 4-9
- Simple construction for ease of service and plug-and-play deployment into the field
- Designed to strict ISO safety standards
- Low friction drivetrain for better electrical efficiency
- Designed to strict ISO safety standards
- Particularly appropriate for applications like methanol dosing where chemical containment is crucial
Specifications & Documents
Technical Specifications
Convert to Metric| Plunger Size (in) | 1/4 |
|---|---|
| Seal Material | FKM-ETP |
| Standards Met | General Purpose |
| Type | AC Pump |
| Voltage | 115 VAC |
| Voltage (V ac) | 115 |
| Seal Material | FKM-ETP |
| Standards Met | General Purpose |
| Type | AC Pump |
| Voltage | 115 VAC |
| Voltage (V ac) | 115 |
