Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Mechanical, high wear, sanitary inlet/outlet
Part Number: 25R488

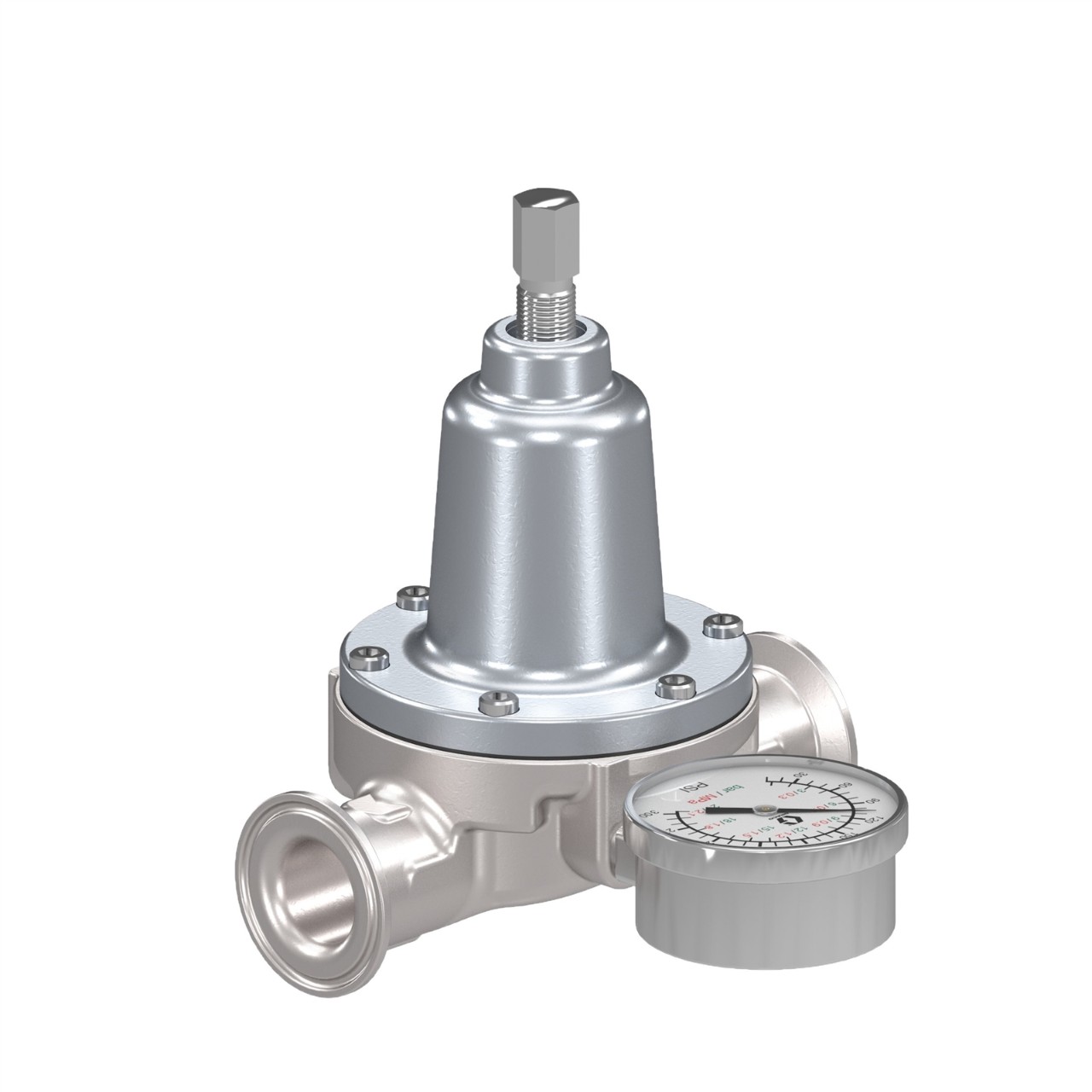

Image is for illustrative purposes only.
Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Mechanical, high wear, sanitary inlet/outlet
Part Number: 25R488
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Innovative flow path geometry provides industry-leading low shear capability
- Ultralife series ceramic coated seat and flow directors significantly increase wear resistance capability and service life
- Best-in-class performance holds pressure constant while flow rate changes
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Waterborne, Solventborne |
|---|---|
| Construction | Stainless Steel, Tungsten Carbide |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Type | NPT |
| Inlet Size (in) | 1.5 |
| Inlet Thread Type | Sanitary Flange |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Regulated Pressure (psi) | 250 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Regulated Pressure (MPa) | 0.17 |
| Minimum Regulated Pressure (psi) | 25 |
| Outlet Size (in) | 1.5 |
| Outlet Thread Type | Sanitary Flange |
| Type | Back Pressure Regulator |
| Compatible Material | Waterborne, Solventborne |
| Construction | Stainless Steel, Tungsten Carbide |
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 3.8 |
| Inlet Size (in) | 1.5 |
| Inlet Size (mm) | 38 |
| Inlet Thread Type | Sanitary Flange |
| Maximum Flow Rate (L/min) | 38 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Regulated Pressure (bar) | 17.6 |
| Maximum Regulated Pressure (kPa) | 1724 |
| Maximum Regulated Pressure (kg/cm²) | 17.6 |
| Maximum Regulated Pressure (psi) | 250 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (bar) | 21.1 |
| Maximum Working Pressure (kPa) | 2068 |
| Maximum Working Pressure (kg/cm²) | 21.1 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Regulated Pressure (MPa) | 0.17 |
| Minimum Regulated Pressure (bar) | 1.8 |
| Minimum Regulated Pressure (kPa) | 172 |
| Minimum Regulated Pressure (kg/cm²) | 1.8 |
| Minimum Regulated Pressure (psi) | 25 |
| Outlet Size (cm) | 3.8 |
| Outlet Size (in) | 1.5 |
| Outlet Size (mm) | 38 |
| Outlet Thread Type | Sanitary Flange |
| Type | Back Pressure Regulator |
