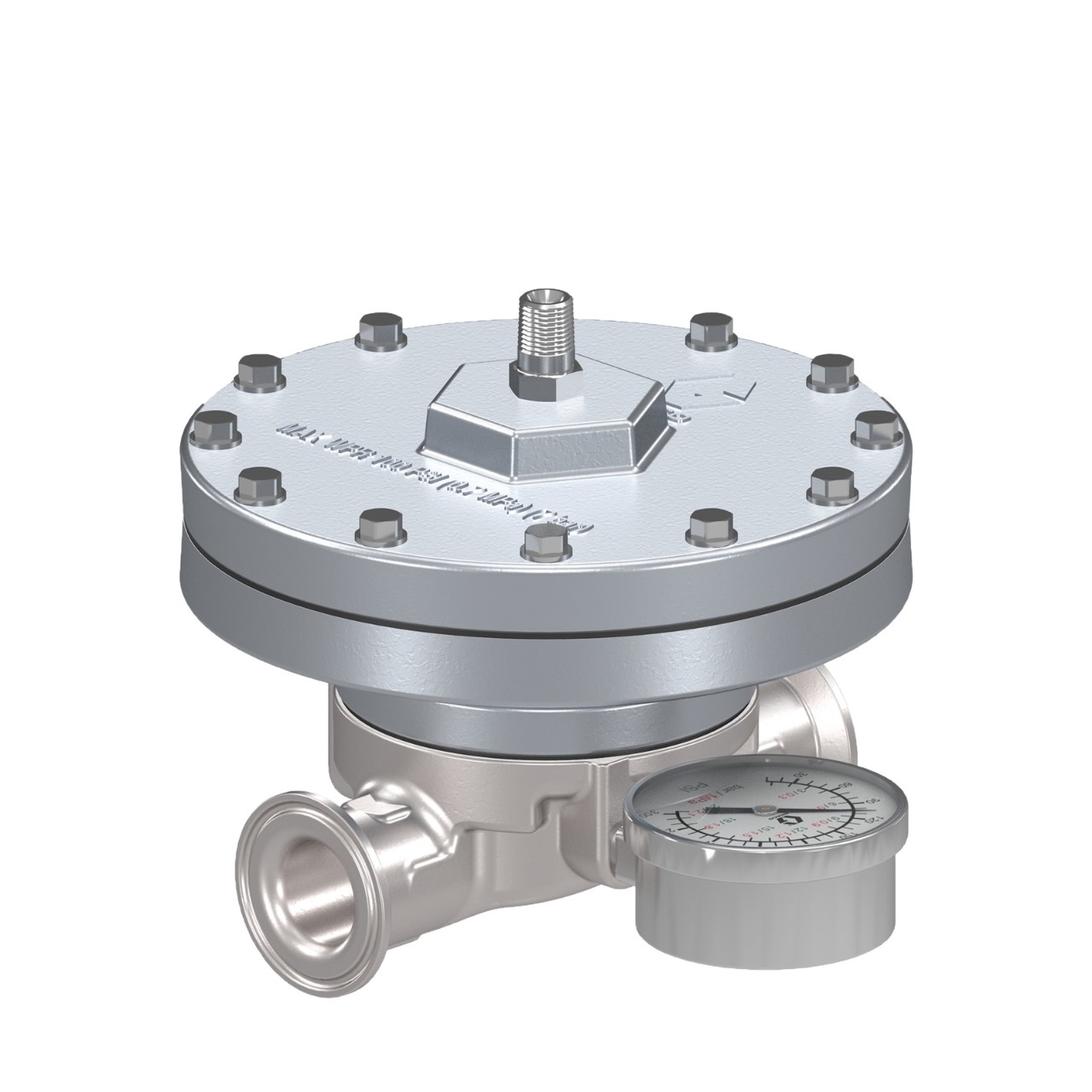

Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Pneumatic, high wear, sanitary inlet/outlet
Part Number: 25R487
Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Pneumatic, high wear, sanitary inlet/outlet
Part Number: 25R487
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Air operated model works with Intelligent Paint Kitchen (IPK) control to reduce energy consumption and paint shear
- Ultralife series ceramic coated parts resist wear and increase service life
- Low profile, compact design and backwards compatibility mean easy installation and replacement
Specifications & Documents
Technical Specifications
Convert to MetricCompatible Material | Waterborne, Solventborne |
---|---|
Construction | Stainless Steel, Tungsten Carbide |
Gauge Port Size (in) | 1/4 |
Gauge Port Type | NPT |
Inlet Size (in) | 1.5 |
Inlet Thread Type | Sanitary Flange |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Flow Rate (GPM) | 10 |
Maximum Operating Temperature (°F) | 122 |
Maximum Regulated Pressure (psi) | 250 |
Maximum Viscosity (cP) | 1000 |
Maximum Working Pressure (psi) | 300 |
Minimum Operating Temperature (°F) | 32 |
Minimum Regulated Pressure (MPa) | 0.17 |
Minimum Regulated Pressure (psi) | 25 |
Outlet Size (in) | 1.5 |
Outlet Thread Type | Sanitary Flange |
Type | Back Pressure Regulator |
Compatible Material | Waterborne, Solventborne |
Construction | Stainless Steel, Tungsten Carbide |
Gauge Port Size (cm) | 0.635 |
Gauge Port Size (in) | 1/4 |
Gauge Port Size (mm) | 6.35 |
Gauge Port Type | NPT |
Inlet Size (cm) | 3.8 |
Inlet Size (in) | 1.5 |
Inlet Size (mm) | 38 |
Inlet Thread Type | Sanitary Flange |
Maximum Air Inlet Pressure (bar) | 7 |
Maximum Air Inlet Pressure (kPa) | 690 |
Maximum Air Inlet Pressure (kg/cm²) | 7 |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Flow Rate (L/min) | 38 |
Maximum Operating Temperature (°C) | 50 |
Maximum Regulated Pressure (bar) | 17.6 |
Maximum Regulated Pressure (kPa) | 1724 |
Maximum Regulated Pressure (kg/cm²) | 17.6 |
Maximum Regulated Pressure (psi) | 250 |
Maximum Viscosity (cP) | 1000 |
Maximum Working Pressure (bar) | 21.1 |
Maximum Working Pressure (kPa) | 2068 |
Maximum Working Pressure (kg/cm²) | 21.1 |
Maximum Working Pressure (psi) | 300 |
Minimum Operating Temperature (°C) | 0 |
Minimum Regulated Pressure (MPa) | 0.17 |
Minimum Regulated Pressure (bar) | 1.8 |
Minimum Regulated Pressure (kPa) | 172 |
Minimum Regulated Pressure (kg/cm²) | 1.8 |
Minimum Regulated Pressure (psi) | 25 |
Outlet Size (cm) | 3.8 |
Outlet Size (in) | 1.5 |
Outlet Size (mm) | 38 |
Outlet Thread Type | Sanitary Flange |
Type | Back Pressure Regulator |
