Viscount II 4-Ball Hydraulic Pump, SST, 3000cc Lower, Sealed Lower, Ultralife Rod & Cylinder, Tri-Clamp
Part Number: 25E933

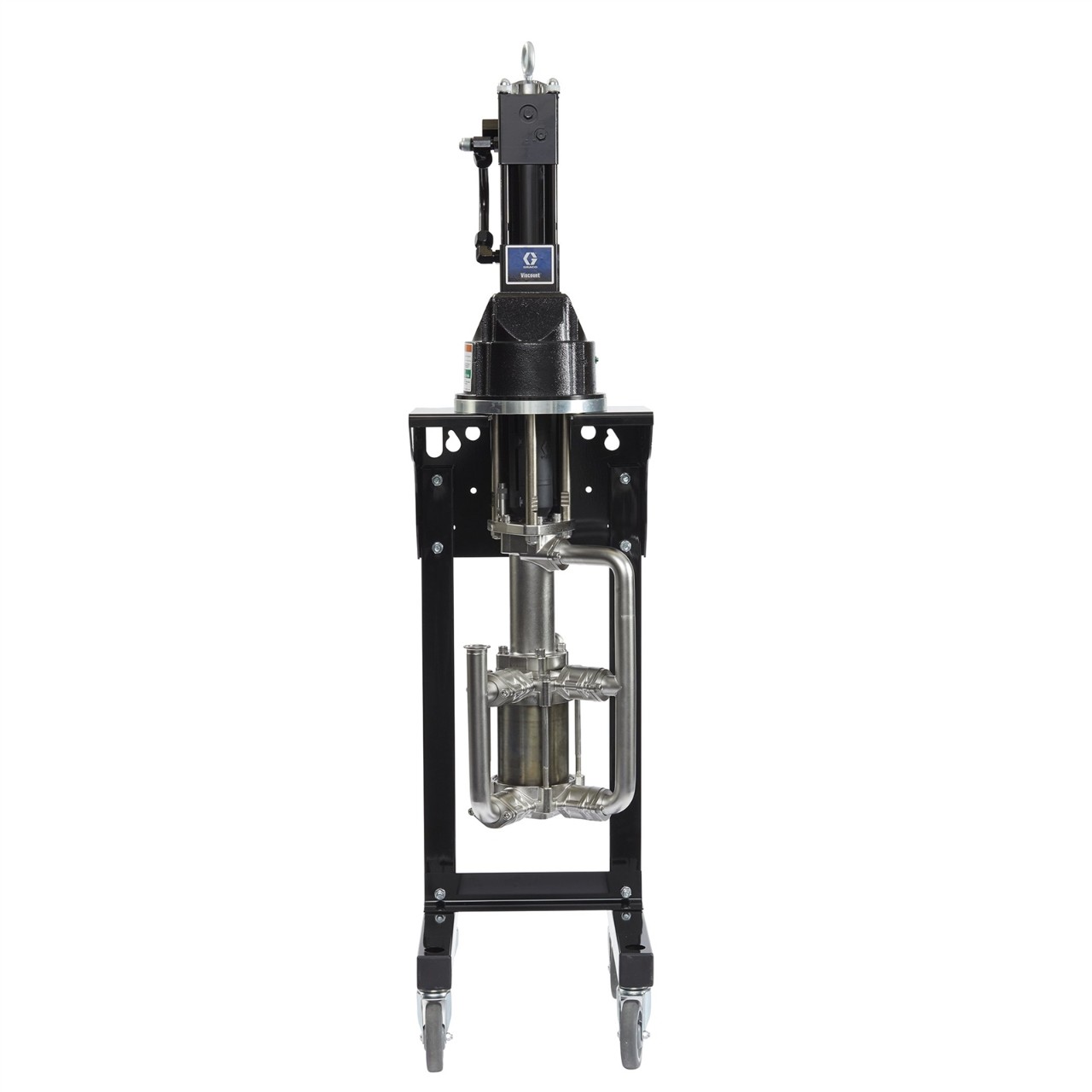

Image is for illustrative purposes only.
Viscount
Viscount II 4-Ball Hydraulic Pump, SST, 3000cc Lower, Sealed Lower, Ultralife Rod & Cylinder, Tri-Clamp
Part Number: 25E933
Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or waterborne paint circulation. The simplified lower design means fewer parts and fast, easy repairs...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or waterborne paint circulation. The simplified lower design means fewer parts and fast, easy repairs for low cost of ownership.
- Hydraulic-powered pumps for low pressure, high volume circulation of finishing materials
- Produces low-shear output for metallic or waterborne paint circulation
- Flushes easily and offers quick color changes
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Circulation |
|---|---|
| Compatible Material | CARC, High Solids, Metallics, Solventborne, Stains, Topcoats, Varnish, Waterborne, Xirallic |
| Construction | Stainless Steel |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | Tri-Clamp |
| Fluid Section Type | Sealed |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (CPM) | 12 |
| Maximum Flow Rate (GPM) | 63 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1200 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (psi) | 300 |
| Model | Viscount |
| Portable | Non-Portable |
| Type | Hydraulic Piston Pump |
| Application | Circulation |
| Compatible Material | CARC, High Solids, Metallics, Solventborne, Stains, Topcoats, Varnish, Waterborne, Xirallic |
| Construction | Stainless Steel |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 50.8 |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Size (mm) | 50.8 |
| Fluid Outlet Thread Type | Tri-Clamp |
| Fluid Section Type | Sealed |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (CPM) | 12 |
| Maximum Flow Rate (L/min) | 238.48 |
| Maximum Hydraulic Fluid Inlet Pressure (bar) | 82.7 |
| Maximum Hydraulic Fluid Inlet Pressure (kPa) | 8270 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1200 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (bar) | 20.7 |
| Maximum Working Pressure (kPa) | 2070 |
| Maximum Working Pressure (psi) | 300 |
| Model | Viscount |
| Portable | Non-Portable |
| Type | Hydraulic Piston Pump |
Product Manuals
406864D, Throat Seal Upgrade Kits 24F063 and 24F064, Instructions/Parts, English
(322 KB)
(English Only)
3A6939B, Manual, Viscount High-Flo Plus Pumps, Instructions - Parts List, English
(2 MB)
(English Only)
