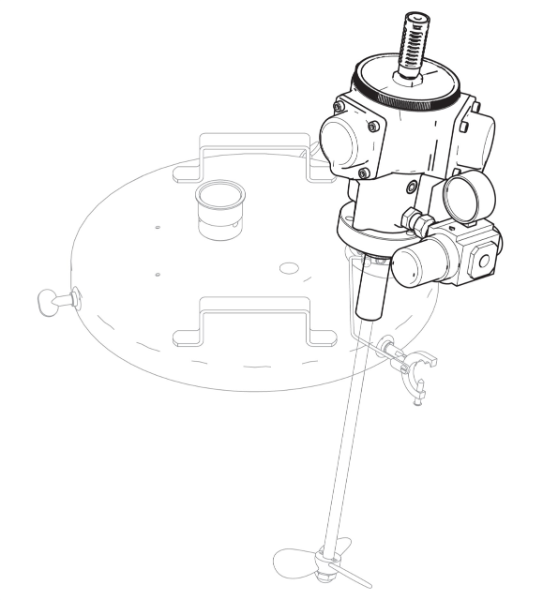

Agitator with pressure tank, 5 gallon (19 L)
Part Number: 25C536
Image is for illustrative purposes only.
Agitator with pressure tank, 5 gallon (19 L)
Part Number: 25C536
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
For wood (top coat, primer) and general finishing applications
- Use less compressed air than most rotary vane air motors.
- Install quickly and operate quietly.
- Maintain easily – air line lubrication not required.
- Add DataTrak for speed monitoring and over-speed alert.
- Control speed with Graco's Intelligent Paint Kitchen (IPK).
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPT |
| Construction | Stainless Steel, PTFE, Nylon, Bronze |
| Includes | 5 Gallon Pressure Tank |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 150 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Radial Piston |
| Type | Agitator |
| Weight (lb) | 66 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Construction | Stainless Steel, PTFE, Nylon, Bronze |
| Includes | 5 Gallon Pressure Tank |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 150 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Radial Piston |
| Type | Agitator |
| Weight (kg) | 30 |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Recommended Accessories
Service & Conversion Videos
Radial piston air-driven agitator motors use up to half the amount of factory air than rotary vane motors. Learn how to service this more efficient agitator motor. See how easy it is to swap out old motors in minutes.
