LSR

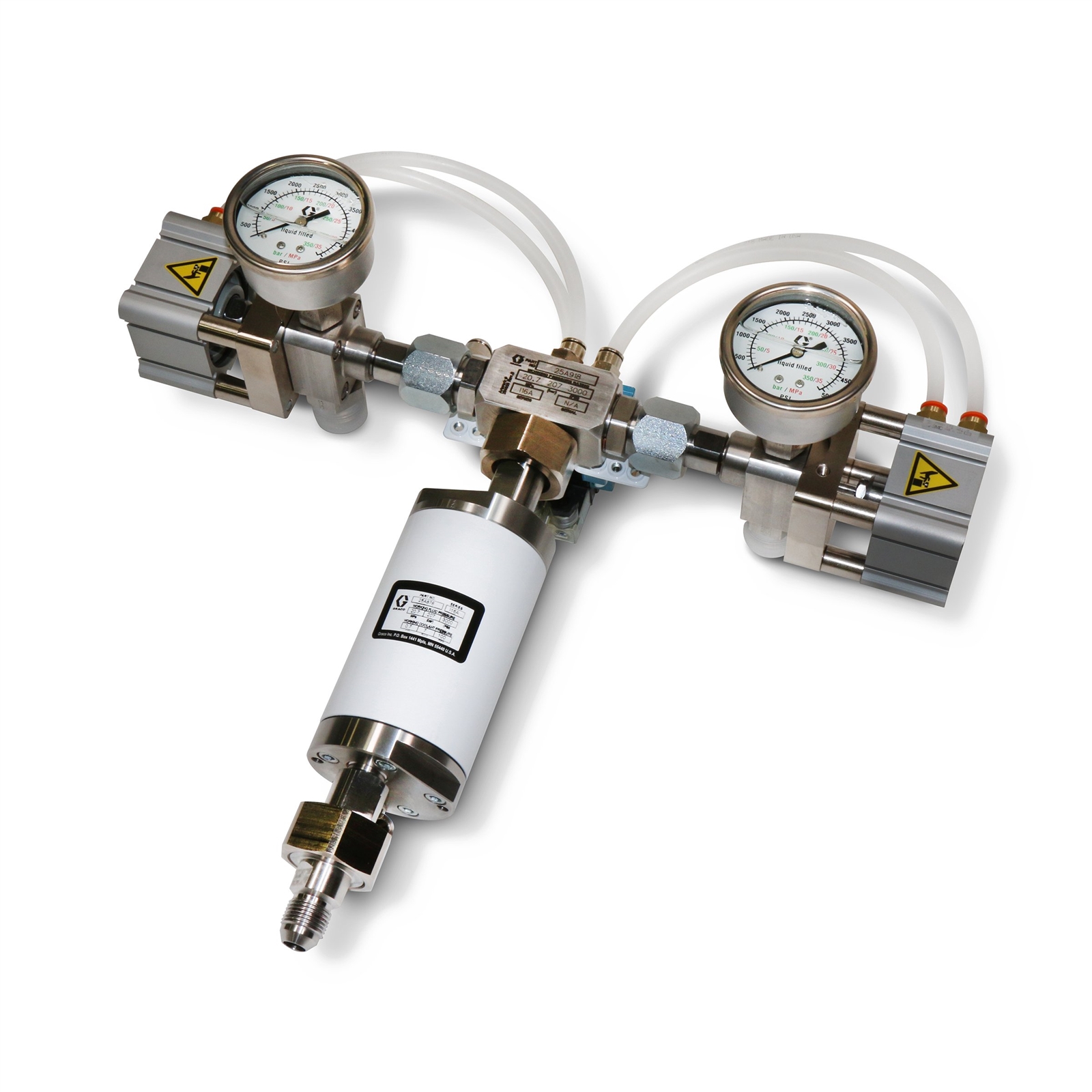

Straight Thread Multi-pass Mixing Stack with A/B Shut Off valves and Color Injector
Part Number: 25A993
LSR
Straight Thread Multi-pass Mixing Stack with A/B Shut Off valves and Color Injector
Part Number: 25A993
The multi-pass stack includes multiple mixing elements to optimize mixing of the material. Three configurations of the mixing stack are available to meet the specific needs of your system.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The multi-pass stack includes multiple mixing elements to optimize mixing of the material. Three configurations of the mixing stack are available to meet the specific needs of your system.
Reduce downtime and increase production with mixing stacks.
Supports up to 30 mix elements
Configure the equipment to run as few mix elements as required: 6, 12, 18, 24, or 30
Specifications & Documents
Technical Specifications
Convert to Metric| Air Line Tube Length (ft) | 3 |
|---|---|
| Air Line Tube Outside Diameter (in) | 5/16 |
| For Use With | Fluid Automation F4 Series |
| Includes | Manifold, Mixer and Regulator, Manifold On/Off Valves, Solenoid Block With Three Solenoids |
| Model | LSR |
| Number of Color Injectors | 1 |
| Number of Pieces | 30 |
| Type | Barrel Mixing Stack Kit |
| Air Line Tube Length (m) | 0.915 |
| Air Line Tube Outside Diameter (cm) | 0.8 |
| Air Line Tube Outside Diameter (in) | 5/16 |
| Air Line Tube Outside Diameter (mm) | 8 |
| For Use With | Fluid Automation F4 Series |
| Includes | Manifold, Mixer and Regulator, Manifold On/Off Valves, Solenoid Block With Three Solenoids |
| Model | LSR |
| Number of Color Injectors | 1 |
| Number of Pieces | 30 |
| Type | Barrel Mixing Stack Kit |
Product Manuals
3A5222B, Manual, Fluid Automation F4 Series, Kits-Accessories Reference Document
(494 KB)
(English Only)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
