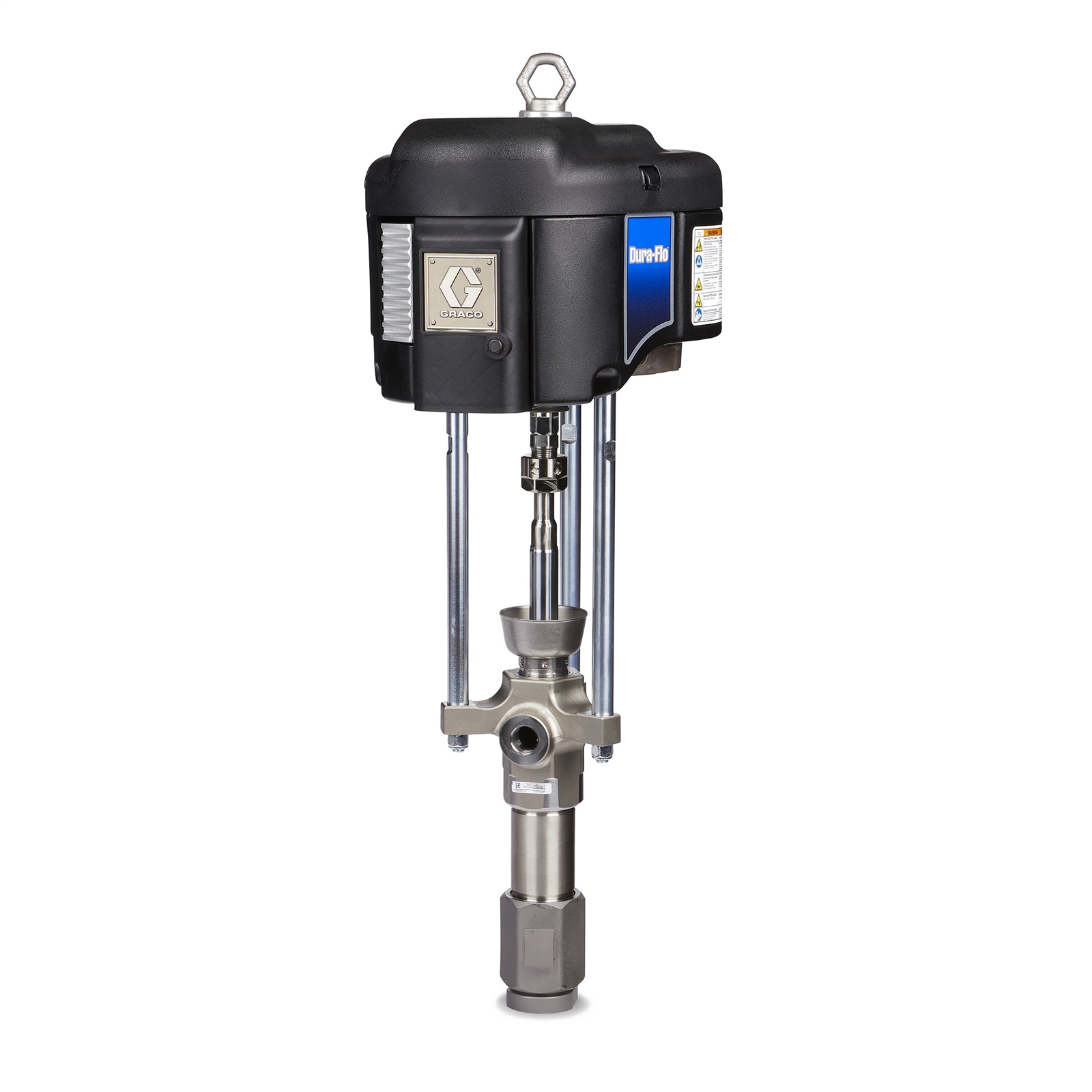

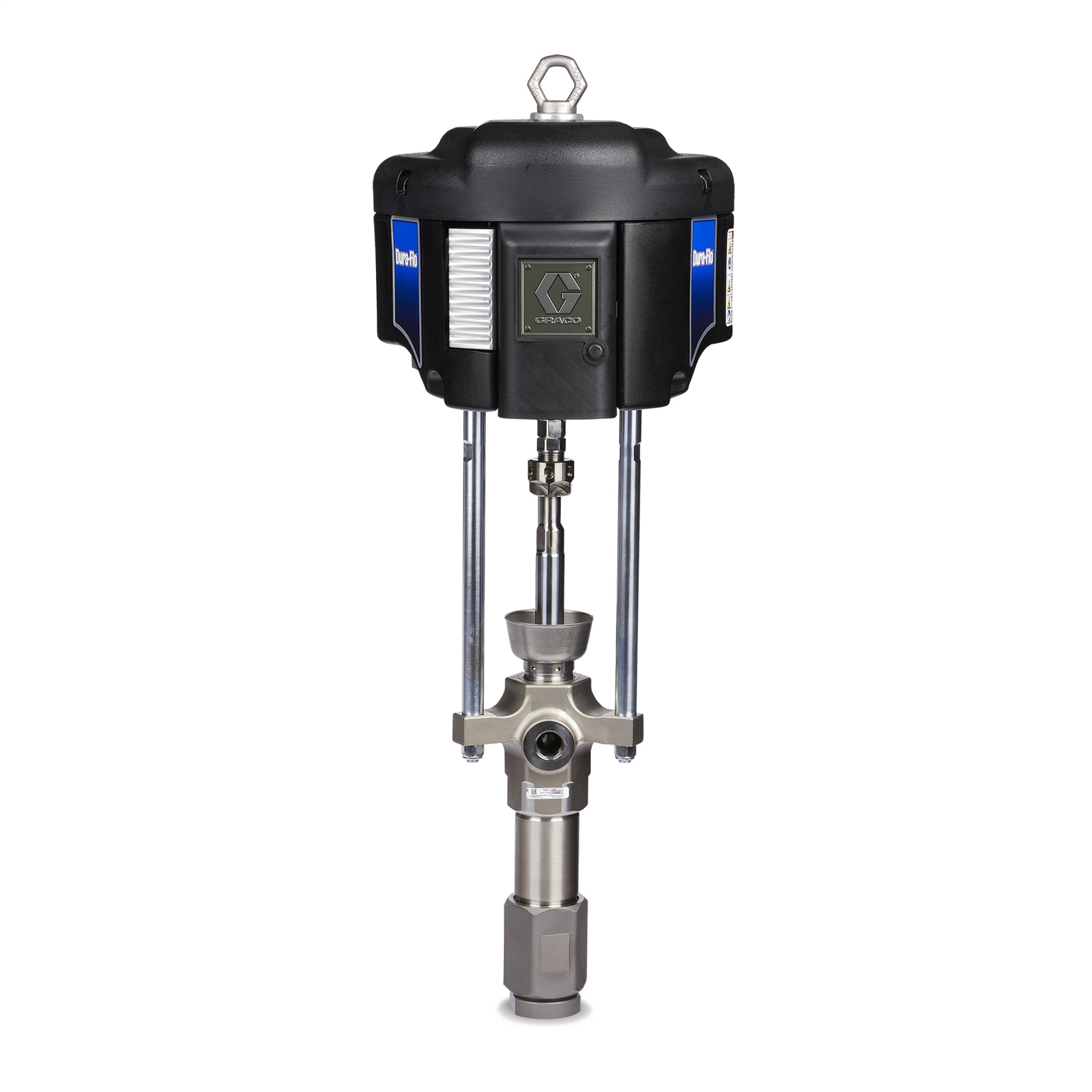

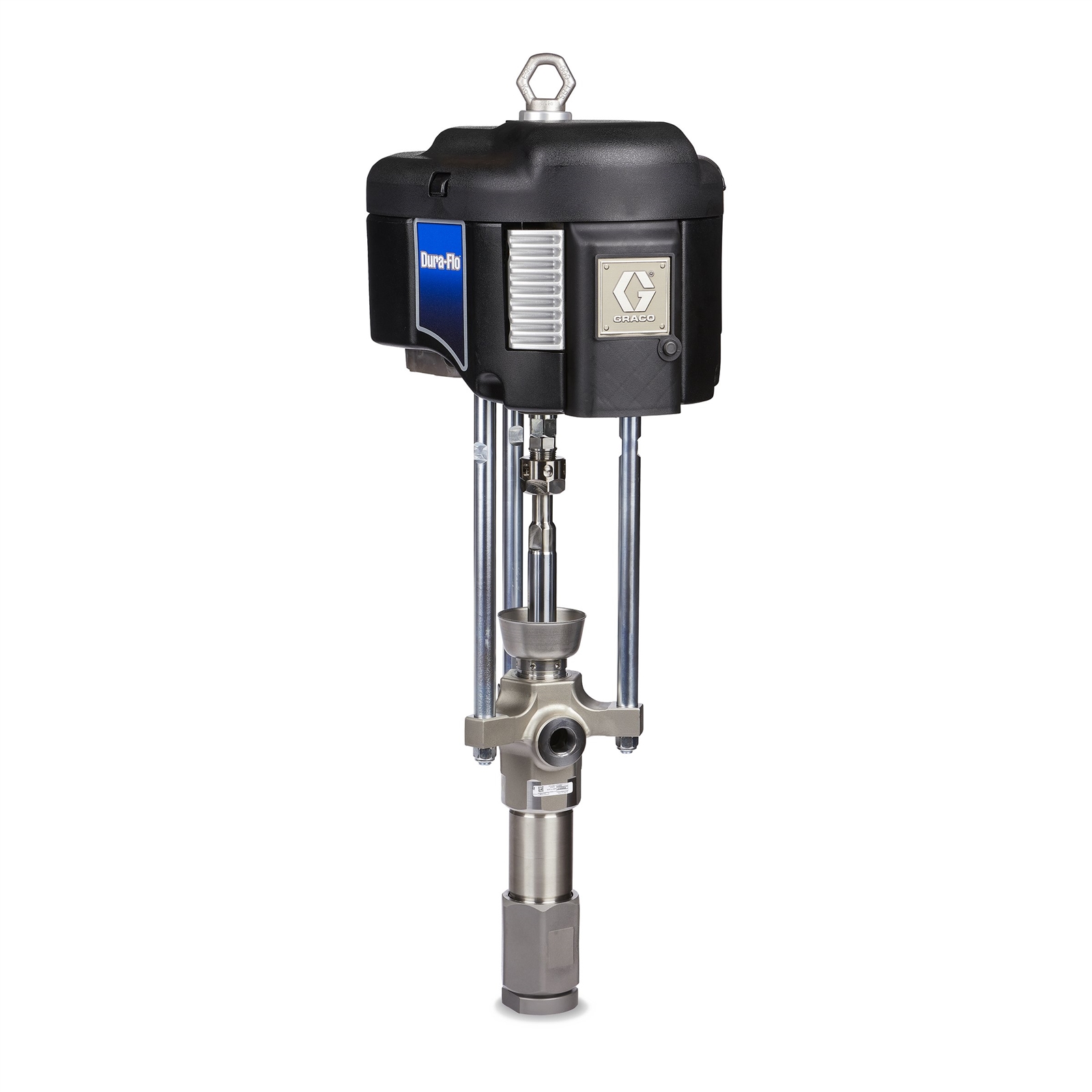

Dura-Flo XL 24000
47:1 - 1000cc Dura-Flo Pump with XL 24000 Air Motor, MaxLife Stainless Steel Construction
Part Number: 25A454
Dura-Flo XL 24000
47:1 - 1000cc Dura-Flo Pump with XL 24000 Air Motor, MaxLife Stainless Steel Construction
Part Number: 25A454
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.
Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer
- XL 24000 Air Motor
- Modular design for easier maintenance
- Rugged body armor won't rust or dent
- Highest technology air motor on the market
- 1000cc Dura-Flo Lower
- MaxLife coatings on rods and cylinder maximizes wear life
Standard Threaded Coupler -
Replaceable Outlet Fitting
- Reduces repair costs
Replaceable Seat
- Minimizes service costs
Cast Outlet and Inlet Housing
- Improves structural integrity
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Construction | Stainless Steel, Chrome Plating, Tungsten Carbide, Acetal, PTFE, Carbon-Filled PTFE, UHMWPE, Leather |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 30 |
| Maximum Flow Rate (GPM) | 7.9 |
| Maximum Operating Temperature (°F) | 100 |
| Maximum Working Pressure (MPa) | 31 |
| Maximum Working Pressure (psi) | 4500 |
| Model | Dura-Flo |
| Portable | Non-Portable |
| Power Type | Pneumatic |
| Pump Ratio | 47:1 |
| Series | XL 24000 |
| Type | Pneumatic Piston Pump |
| Air Inlet Size (in) | 1 |
| Air Inlet Size (mm) | 25.4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Construction | Stainless Steel, Chrome Plating, Tungsten Carbide, Acetal, PTFE, Carbon-Filled PTFE, UHMWPE, Leather |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 30 |
| Maximum Flow Rate (L/min) | 29.9 |
| Maximum Operating Temperature (°C) | 38 |
| Maximum Working Pressure (MPa) | 31 |
| Maximum Working Pressure (bar) | 310.3 |
| Maximum Working Pressure (kPa) | 31030 |
| Maximum Working Pressure (psi) | 4500 |
| Model | Dura-Flo |
| Portable | Non-Portable |
| Power Type | Pneumatic |
| Pump Ratio | 47:1 |
| Series | XL 24000 |
| Type | Pneumatic Piston Pump |
