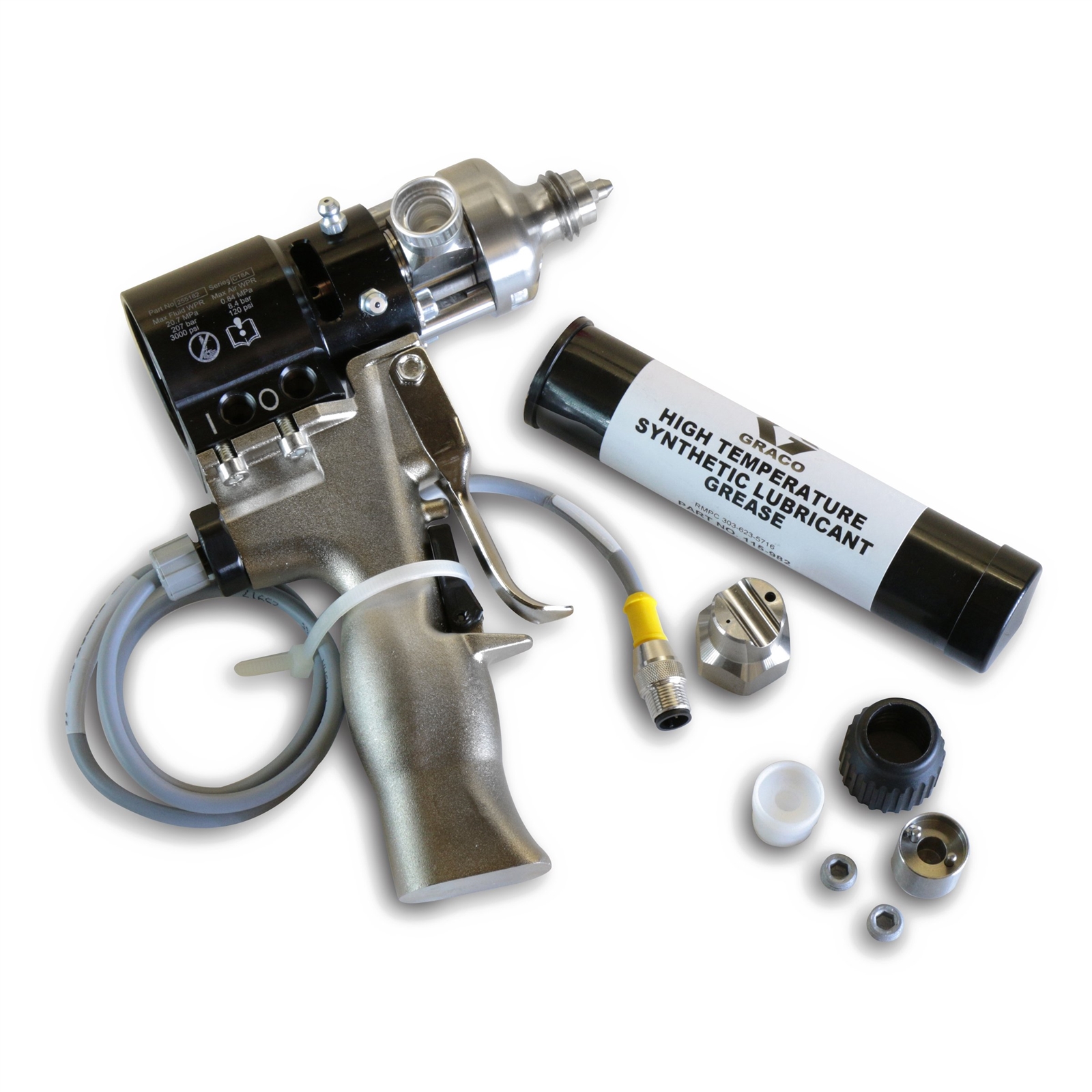

Two Component Mixing Dispense Valve MD2
10:1 Wide Ratio, Hard Seat, Electric Actuated, Non-adjustable Snuff-back, Manual Handle
Part Number: 255446
Two Component Mixing Dispense Valve MD2
10:1 Wide Ratio, Hard Seat, Electric Actuated, Non-adjustable Snuff-back, Manual Handle
Part Number: 255446
Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production.
Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives.
- Wide ratio valve with center injection tip works well when the low volume material has a much lower viscosity than the high volume material. Frequent cleaning intervals may be required to maintain the tip.
- Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications.
- Hand held valve with electric switch signals the controller to open and close the ports on the MD2 valve. The process uses a remote four-way air control (not included; must be ordered separately).
- Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity.
- Snuff-back control prevents dripping as it brings material back into the valve until next dispense.
- Hand held electric handle eases manual dispense.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding |
| Compatible Material | 2K Sealants, Adhesives |
| Component Type | Plural-Component |
| Fluid Inlet Size (in) | 9/16-18 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | UNF |
| Fluid Outlet Size (in) | 7/8-9 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNC |
| Gun Activation | Manual |
| Includes | 2K Dispense Handle, 10:1 Hard Seat Dispense Valve, 10:1 Ratio Check Kit, 10:1 Night Cap, ASM Aid Tool |
| Inlet Size (in) | 9/16-18 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Two Component Mixing Dispense Valve |
| Mount Hole Thread Gender | Female |
| Mount Hole Thread Type | Metric |
| Series | MD2 |
| Type | Metering Valve |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding |
| Compatible Material | 2K Sealants, Adhesives |
| Component Type | Plural-Component |
| Fluid Inlet Size (in) | 9/16-18 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | UNF |
| Fluid Outlet Size (in) | 7/8-9 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNC |
| Gun Activation | Manual |
| Includes | 2K Dispense Handle, 10:1 Hard Seat Dispense Valve, 10:1 Ratio Check Kit, 10:1 Night Cap, ASM Aid Tool |
| Inlet Size (in) | 9/16-18 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Two Component Mixing Dispense Valve |
| Mount Hole Thread Gender | Female |
| Mount Hole Thread Type | Metric |
| Series | MD2 |
| Type | Metering Valve |
