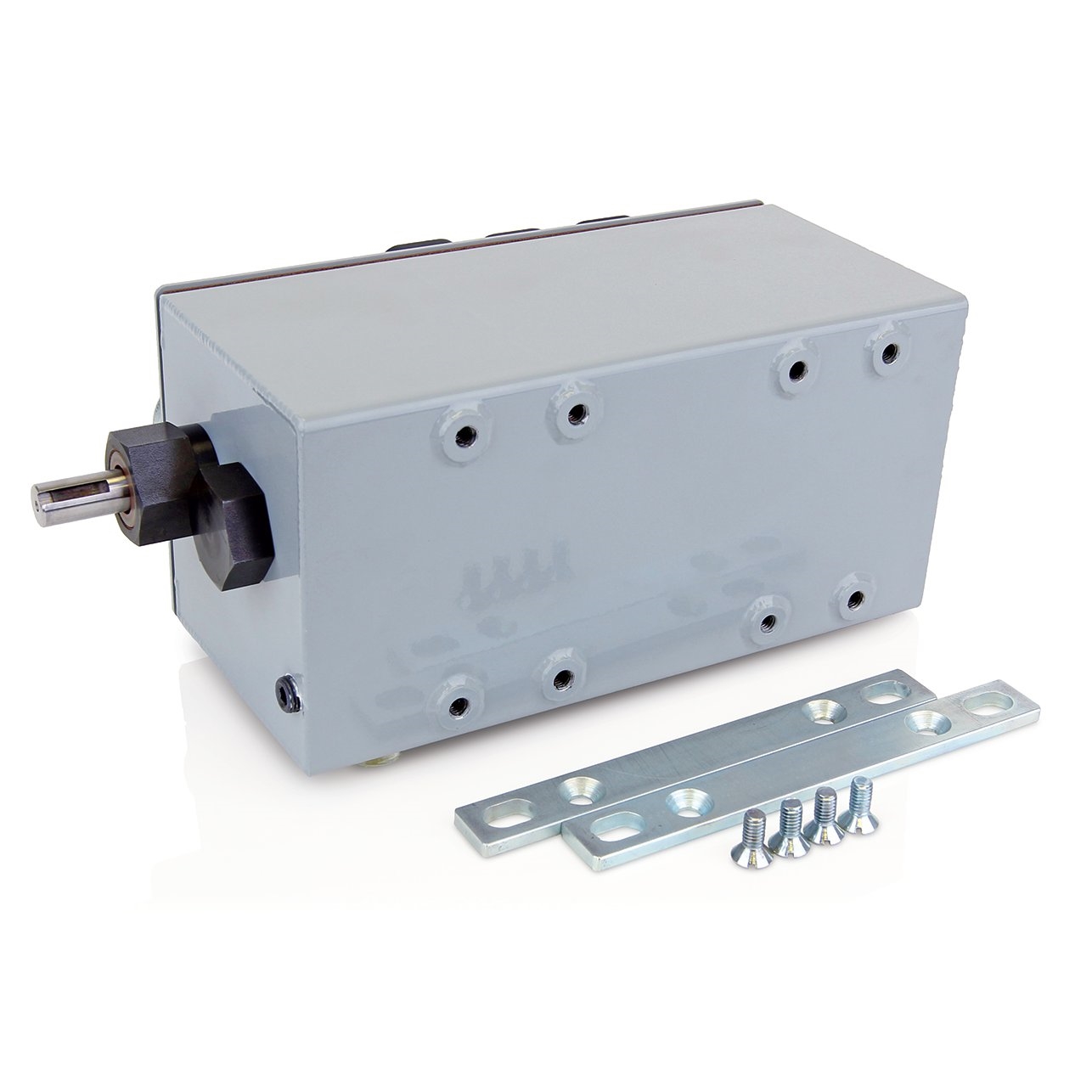

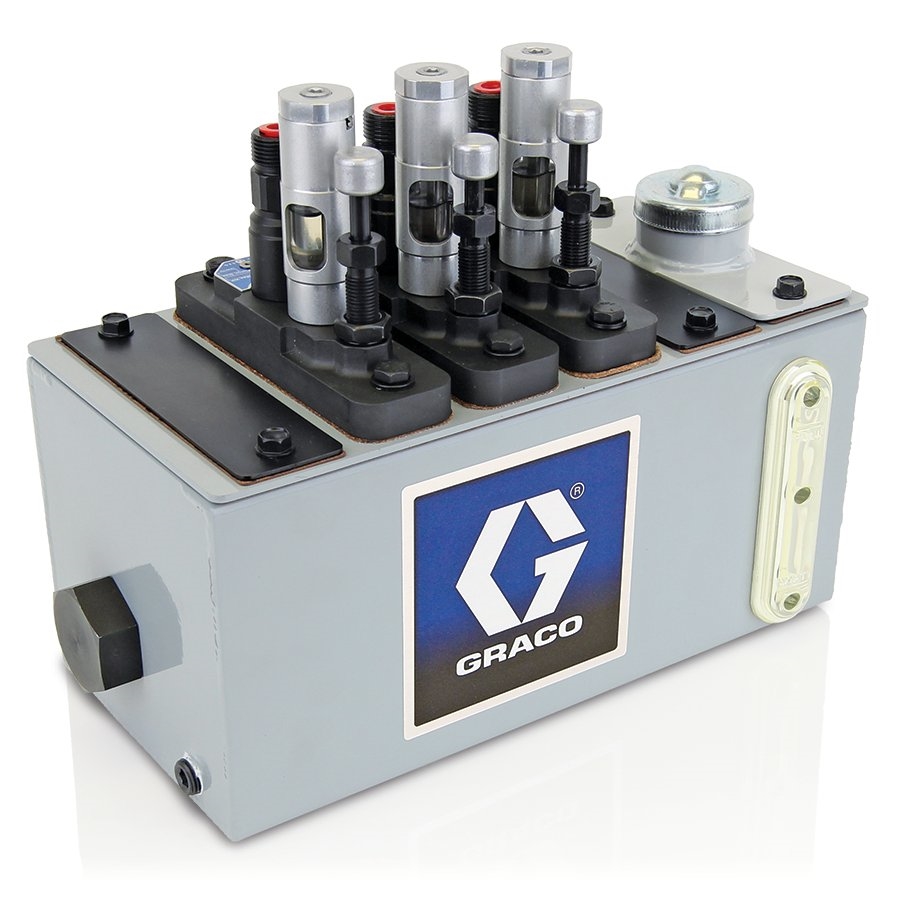

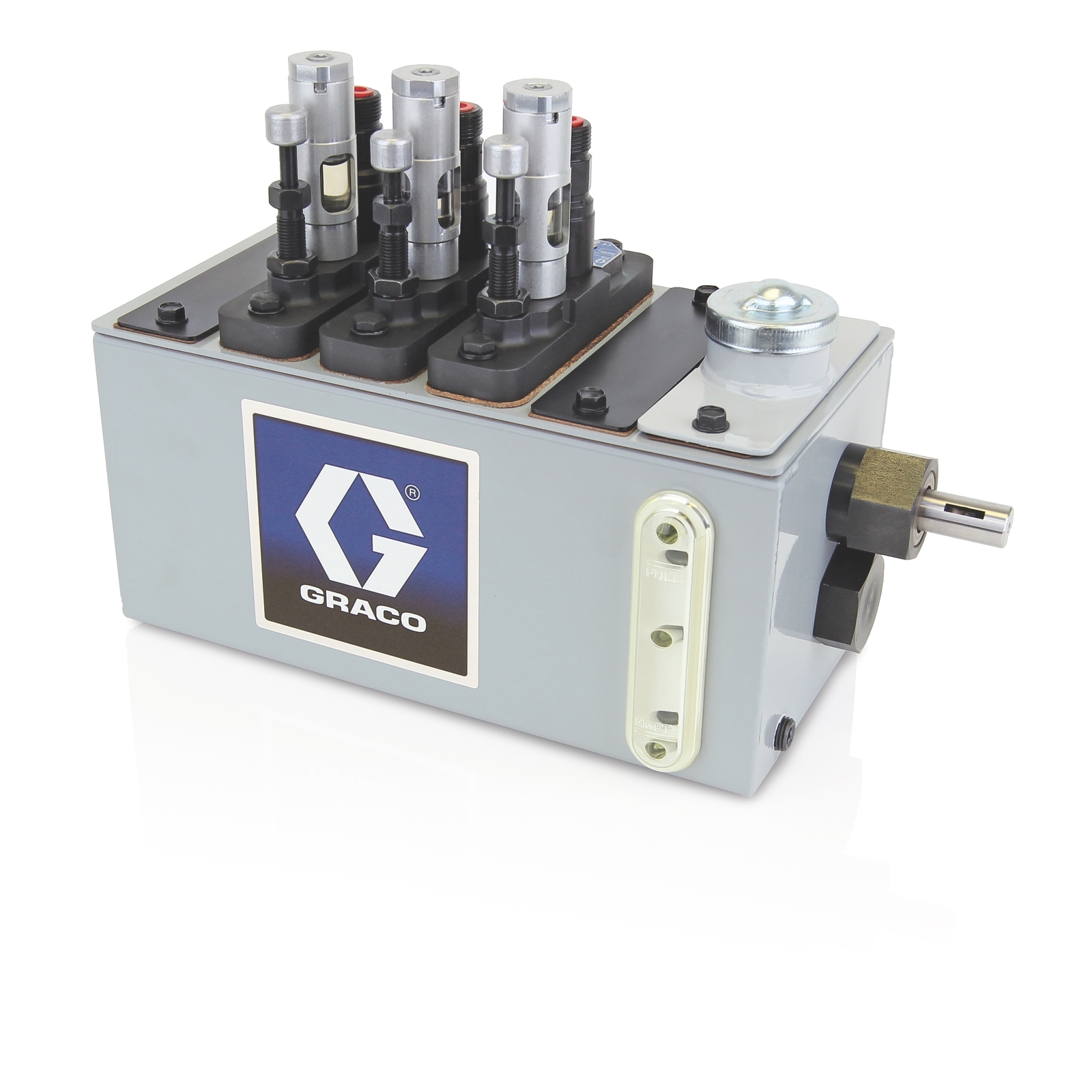

Manzel® MB118 Series Lubricator - 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), 1/4 in GBL 7500 Pump (qty 3), 118:1 drive on right hand end
Part Number: 24W636
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Manzel MB
Manzel® MB118 Series Lubricator - 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), 1/4 in GBL 7500 Pump (qty 3), 118:1 drive on right hand end
Part Number: 24W636
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.
MB118 is the right size for triplex and quintuplex mud pump applications.
- Provide a proven, cost-effective way to assemble customized oil systems that meet specific requirements by using standard modular components
- Increase opportunities to standardize lube system components and reduce lube maintenance and service costs
- 4 pint (1.9 liter) reservoir (4 pump stations max), 1/4 inch GBL 7500 pump (qty 3), 118:1 drive on RH end
Specifications & Documents
Technical Specifications
Convert to Metric| Cam Type | Single Lobe |
|---|---|
| Compatible Material | Oil |
| Construction | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminum |
| Drive Location | Right Hand Mount |
| Drive Option | Internal Gear Reduction |
| Includes | 24J392 GBL 7500 1/4" Suction pumps (qty 3) |
| Lubricator Feed Type | Suction Feed, Force Feed |
| Lubricator Gear Ratio | 118:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Drops Per Stroke (drops/stroke) | 12 |
| Maximum Number of Pump Stations | 4 |
| Maximum Number of Strokes (SPM) | 15 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Outlet Pressure (psi) | 6000 |
| Maximum Output Displacement (drops/stroke) | 12 |
| Maximum Output Volume (in³) | 0.024 |
| Maximum Reservoir Capacity (gal) | 0.5 |
| Maximum Reservoir Capacity (pt) | 4 |
| Maximum Reservoir Capacity (qt) | 2 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Drive Speed (RPM) | 354 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Minimum Number of Strokes (SPM) | 3 |
| Minimum Operating Temperature (°F) | -20 |
| Model | Manzel |
| Number of Pumps | 3 |
| Outlet Size (in) | 1/8 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT, NPTF |
| Overall Depth (in) | 14.25 |
| Overall Height (in) | 9.67 |
| Overall Width (in) | 5.5 |
| Piston Size (in) | 0.25 |
| Pump Size (in) | 1/4 |
| Reservoir Material | Steel |
| Series | MB |
| Type | Box Lubricator |
| Cam Type | Single Lobe |
| Compatible Material | Oil |
| Construction | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminum |
| Drive Location | Right Hand Mount |
| Drive Option | Internal Gear Reduction |
| Includes | 24J392 GBL 7500 1/4" Suction pumps (qty 3) |
| Lubricator Feed Type | Suction Feed, Force Feed |
| Lubricator Gear Ratio | 118:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Drops Per Stroke (drops/stroke) | 12 |
| Maximum Number of Pump Stations | 4 |
| Maximum Number of Strokes (SPM) | 15 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Outlet Pressure (psi) | 6000 |
| Maximum Output Displacement (drops/stroke) | 12 |
| Maximum Reservoir Capacity (L) | 1.9 |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41369 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Drive Speed (RPM) | 354 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Minimum Number of Strokes (SPM) | 3 |
| Minimum Operating Temperature (°C) | -29 |
| Model | Manzel |
| Number of Pumps | 3 |
| Outlet Size (in) | 1/8 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT, NPTF |
| Overall Depth (cm) | 36.2 |
| Overall Depth (mm) | 362 |
| Overall Height (cm) | 24.6 |
| Overall Height (mm) | 245 |
| Overall Width (cm) | 13.97 |
| Overall Width (mm) | 139.7 |
| Piston Size (cm) | 0.64 |
| Piston Size (mm) | 6.35 |
| Pump Size (cm) | 0.635 |
| Pump Size (mm) | 6.35 |
| Reservoir Material | Steel |
| Series | MB |
| Type | Box Lubricator |
