Endura-Flo 4D150
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, Tri-Clamp, DataTrak
Part Number: 24W348

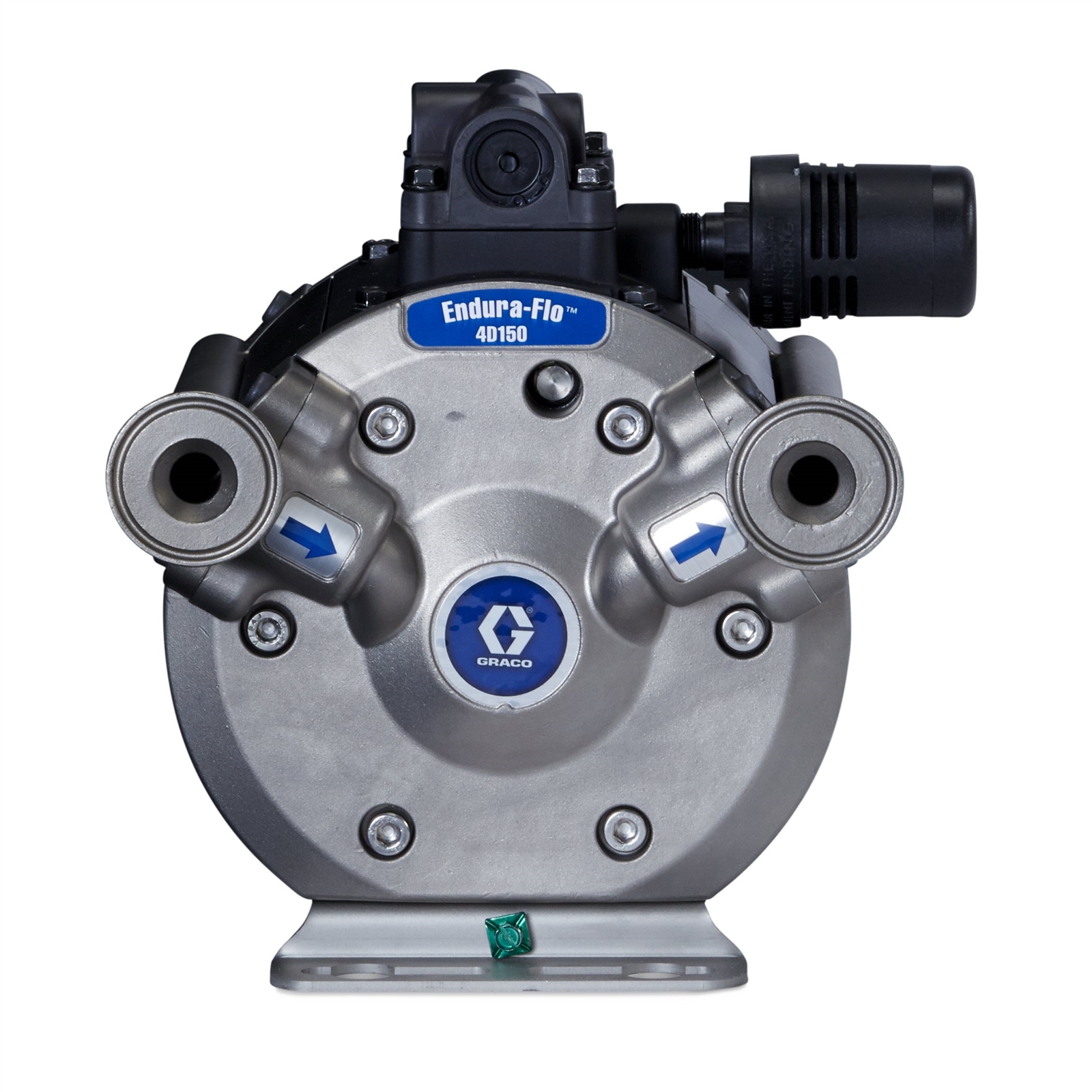

Image is for illustrative purposes only.
Endura-Flo 4D150
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, Tri-Clamp, DataTrak
Part Number: 24W348
The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.
- Endure-Flo diaphragms last longer against extreme operating conditions
- Easy access to critical components for fast online maintenance
- Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
- Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems
- Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
- DataTrek option prevents runaway and tracks material usage
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Circulation |
| Compatible Material | High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set |
| Connection Type | Tri-Clamp |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Includes | Tri-Clamp Fittings, DataTrak |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (GPM) | 2.4 |
| Maximum Fluid Pressure (MPa) | 2.8 |
| Maximum Fluid Pressure (psi) | 400 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | 32 |
| Model | Endura-Flo |
| Power Source | Air |
| Pump Ratio | 4:1 |
| Series | 4D150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 31 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Circulation |
| Compatible Material | High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set |
| Connection Type | Tri-Clamp |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Includes | Tri-Clamp Fittings, DataTrak |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (L/min) | 9.1 |
| Maximum Fluid Pressure (MPa) | 2.8 |
| Maximum Fluid Pressure (bar) | 28 |
| Maximum Fluid Pressure (kPa) | 2800 |
| Maximum Fluid Pressure (psi) | 400 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | 0 |
| Model | Endura-Flo |
| Power Source | Air |
| Pump Ratio | 4:1 |
| Series | 4D150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
Repair Parts
| Part No. | Description |
|---|---|
| 17H326 | Air Section Fastener Kit for Endura-Flo 3D150 and 4D150 |
| 24Y304 | Endura-Flo 4D150 DataTrak Conversion Kit, Includes replacement air valve compatible with solenoid |
| 17J610 | Fluid Pressure Limit Kit for Endura-Flo 3D150 and 4D150, limits air pressure to 70 psi (4.8 bar) maximum |
| 17H302 | Overmolded Diaphragm Kit for Endura-Flo 3D150 & 4D150, includes 2 diaphragms, diaphragm replacement tools, and o-rings |
| 17N356 | Carbide Seat Check Valve Kit for Endura-Flo 3D150 and 4D150, includes 4 check valve cartridges with carbide seats and 4 o-rings |
| 17H308 | Piston Repair Kit for Endura-Flo 4D150 |
| 17H311 | Air Cover Replacement Kit for Endura-Flo 4D150 |
| 17H315 | Floor Stand Kit for Endura-Flo Pumps |
| 17H318 | Endura-Flo 4D150 DataTrak Air Valve |
| 17H320 | Solenoid Replacement Kit for Endura-Flo 3D150 and 4D150 |
| 17H324 | Fluid Section Fastener Kit for Endura-Flo 3D150 and 4D150 |
