Endura-Flo 4D150
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, Tri-Clamp
Part Number: 24W345

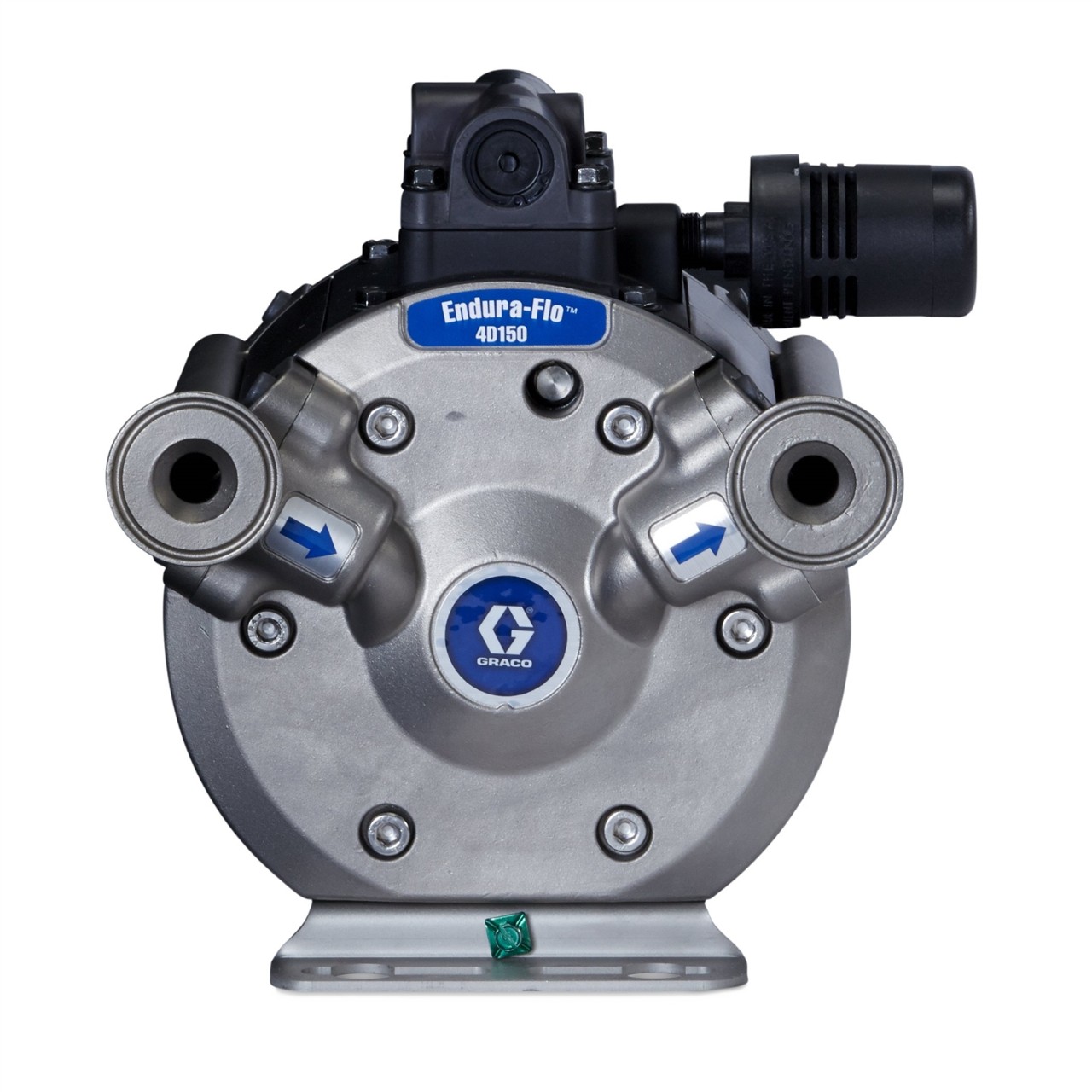

Image is for illustrative purposes only.
Endura-Flo 4D150
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, Tri-Clamp
Part Number: 24W345
The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.
- Endure-Flo diaphragms last longer against extreme operating conditions
- Easy access to critical components for fast online maintenance
- Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
- Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems
- Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Circulation |
| Compatible Material | High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set |
| Connection Type | Tri-Clamp |
| Construction | PTFE, Stainless Steel, Perfluoroelastomer, Polyphenylene Sulfide |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Includes | Tri-Clamp Fittings |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (GPM) | 2.4 |
| Maximum Fluid Pressure (MPa) | 2.8 |
| Maximum Fluid Pressure (psi) | 400 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | 32 |
| Model | Endura-Flo |
| Overall Height (in) | 12.23 |
| Power Source | Air |
| Pump Ratio | 4:1 |
| Series | 4D150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 31 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Circulation |
| Compatible Material | High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set |
| Connection Type | Tri-Clamp |
| Construction | PTFE, Stainless Steel, Perfluoroelastomer, Polyphenylene Sulfide |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Includes | Tri-Clamp Fittings |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (L/min) | 9.1 |
| Maximum Fluid Pressure (MPa) | 2.8 |
| Maximum Fluid Pressure (bar) | 28 |
| Maximum Fluid Pressure (kPa) | 2800 |
| Maximum Fluid Pressure (psi) | 400 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | 0 |
| Model | Endura-Flo |
| Power Source | Air |
| Pump Ratio | 4:1 |
| Series | 4D150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
Repair Parts
| Part No. | Description |
|---|---|
| 17H319 | Endura-Flo 4D150 Standard Air Valve |
Related Products
Recommended Accessories
Demo & Service Videos
Learn how to maintain and repair the 4:1 Endura-Flo Extended Pressure Diaphragm Pump. Playlist begins with a color change demonstration.
