Merkur ES

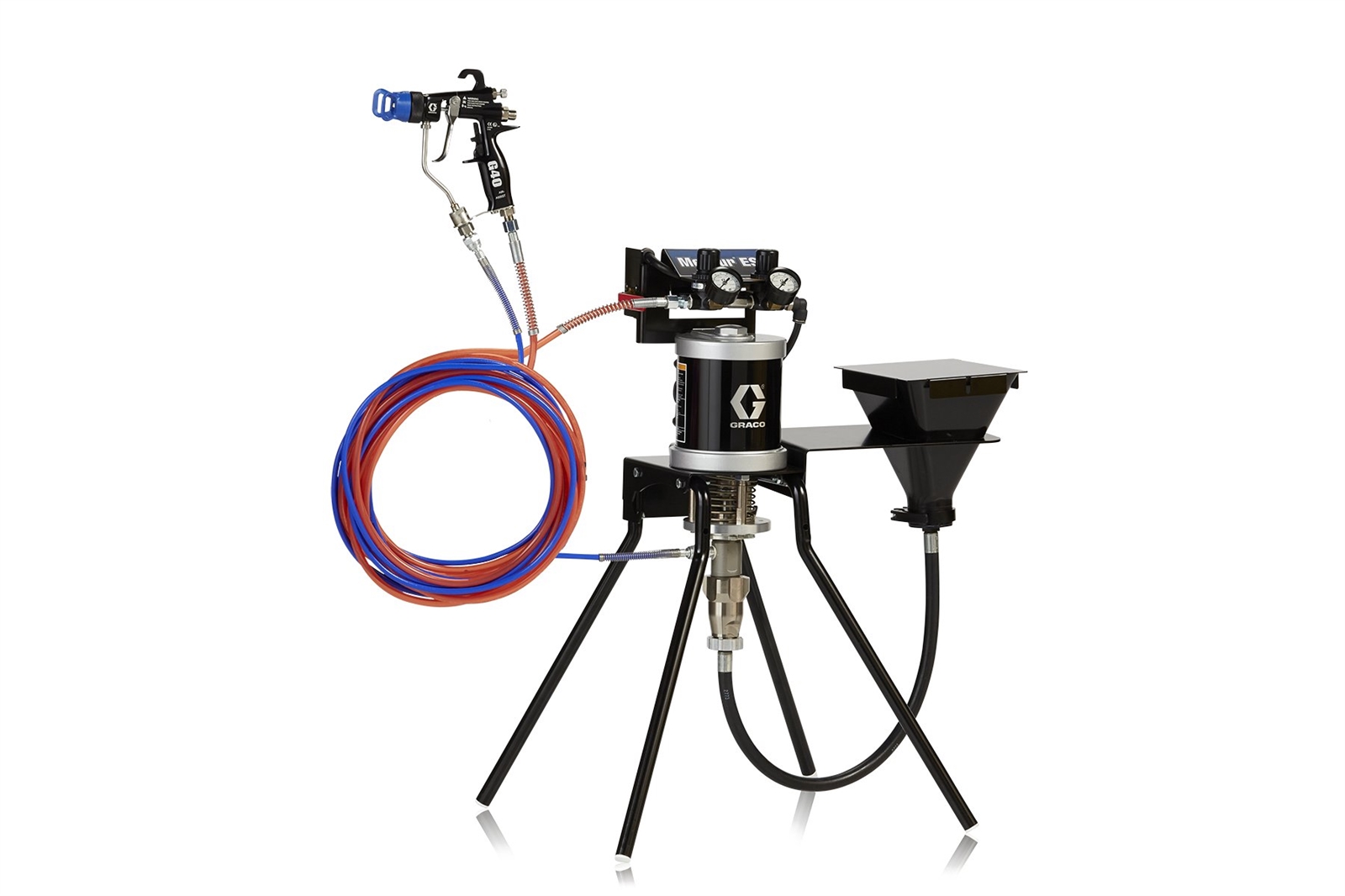

30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 gun, hopper, and plated steel
Part Number: 24W285
Image is for illustrative purposes only.
Merkur ES
30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 gun, hopper, and plated steel
Part Number: 24W285
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
|---|---|
| Convertible | Non-Convertible |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G40 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (in) | 0.125 |
| Includes | G40 Gun, Hopper, Stand Mount |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 35 |
| Construction | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
| Convertible | Non-Convertible |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G40 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (cm) | 0.3175 |
| Hose Inlet Diameter (in) | 0.125 |
| Hose Inlet Diameter (mm) | 3 |
| Includes | G40 Gun, Hopper, Stand Mount |
| Maximum Hose Length (m) | 7.6 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (cm) | 0.0483 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size (mm) | 0.4826 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Type | Air-Assisted Airless Sprayer |
| Weight (kg) | 15.9 |
