InvisiPac HM50
InvisiPac HM50 System, 2 Channel, 480 Voltage
Part Number: 24V201
InvisiPac HM50
InvisiPac HM50 System, 2 Channel, 480 Voltage
Part Number: 24V201
High volume, end-of-line packaging benefits the most from the InvisiPac HM50’s hot melt rate of 50 pounds per hour (lb/hr).
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
High volume, end-of-line packaging benefits the most from the InvisiPac HM50’s hot melt rate of 50 pounds per hour (lb/hr).
Tank-Free™ system delivers hot melt adhesive on-demand for case and carton sealing applications.

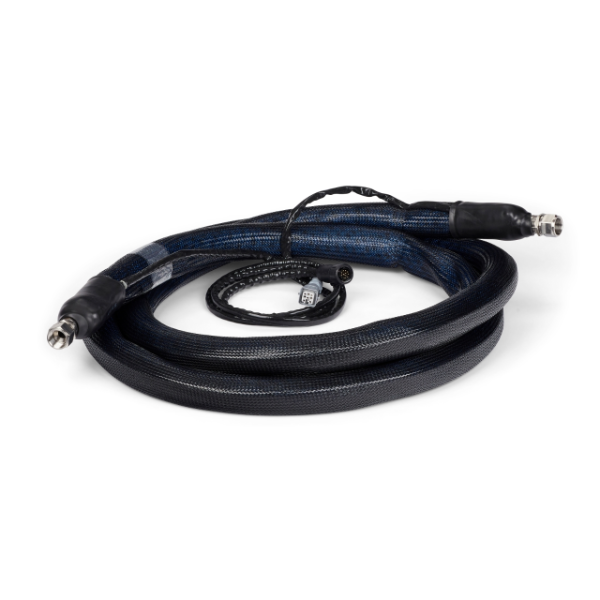

- Two channels can each connect to a Plug-Free™ applicator and heated hose, producing quick, precise adhesive dispense.
- In-line melter has an output dispense 50 lb (22 kg) per hour and can reach operating temperature in 10 minutes – the quickest start-up time for any packaging line.
- Proprietary melt-on-demand technology maintains a continuous flow of adhesive. Less time at high temperature means more uptime and little maintenance-related downtime.
- Integrated automatic vacuum feed system saves labor costs by automatically pulling adhesive pellets from a drum or bulk container.
- No exposure to molten hot melt adhesive improves operator safety by reducing burn hazard risks.
- Light tower indicates system status at a glance.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Amperage (A) | 14 |
| Application | Bonding |
| Applicator Type | Automatic |
| Channels | 2 |
| Component Type | Single Component |
| Construction | Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings |
| Footprint (in) | 22.3 x 18.3 x 41.9 |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (lb/hr) | 130 |
| Maximum Fluid Temperature (°F) | 400 |
| Maximum Hose Length (ft) | 30 |
| Maximum Working Pressure (MPa) | 8.3 |
| Maximum Working Pressure (psi) | 1200 |
| Melt Rate (lb/hr) | 50 |
| Model | InvisiPac |
| Overall Depth (in) | 18.3 |
| Overall Height (in) | 41.9 |
| Overall Width (in) | 22.3 |
| Pattern Controller | No |
| Power Source | Electric |
| Power Type | Electric |
| Pump | Pneumatic piston, 12:1 |
| Series | HM50 |
| Time to Temperature | Less than 15 minutes |
| Transformer | Yes |
| Type | Dispensing System |
| Voltage (V ac) | 400-480 |
| Weight (lb) | 105 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Amperage (A) | 14 |
| Application | Bonding |
| Applicator Type | Automatic |
| Channels | 2 |
| Component Type | Single Component |
| Construction | Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings |
| Footprint (in) | 22.3 x 18.3 x 41.9 |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 70.0000 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (kg/hr) | 59 |
| Maximum Fluid Temperature (°C) | 204 |
| Maximum Hose Length (m) | 9.14 |
| Maximum Working Pressure (MPa) | 8.3 |
| Maximum Working Pressure (bar) | 83 |
| Maximum Working Pressure (kPa) | 8300 |
| Maximum Working Pressure (psi) | 1200 |
| Melt Rate (kg/hr) | 22.6 |
| Model | InvisiPac |
| Overall Depth (cm) | 46.5 |
| Overall Depth (mm) | 465 |
| Overall Height (cm) | 106.4 |
| Overall Height (mm) | 1064 |
| Overall Width (cm) | 56.6 |
| Overall Width (mm) | 566 |
| Pattern Controller | No |
| Power Source | Electric |
| Power Type | Electric |
| Pump | Pneumatic piston, 12:1 |
| Series | HM50 |
| Time to Temperature | Less than 15 minutes |
| Transformer | Yes |
| Type | Dispensing System |
| Voltage (V ac) | 400-480 |
| Weight (kg) | 48 |
