AirPro EFX
AirPro EFX Auto Air Spray Gun, Direct Connect, HVLP, 0.051 inch (1.3 mm) Nozzle, SST Tip, Lock Ring Fluid Adjust Knob
Part Number: 24B883

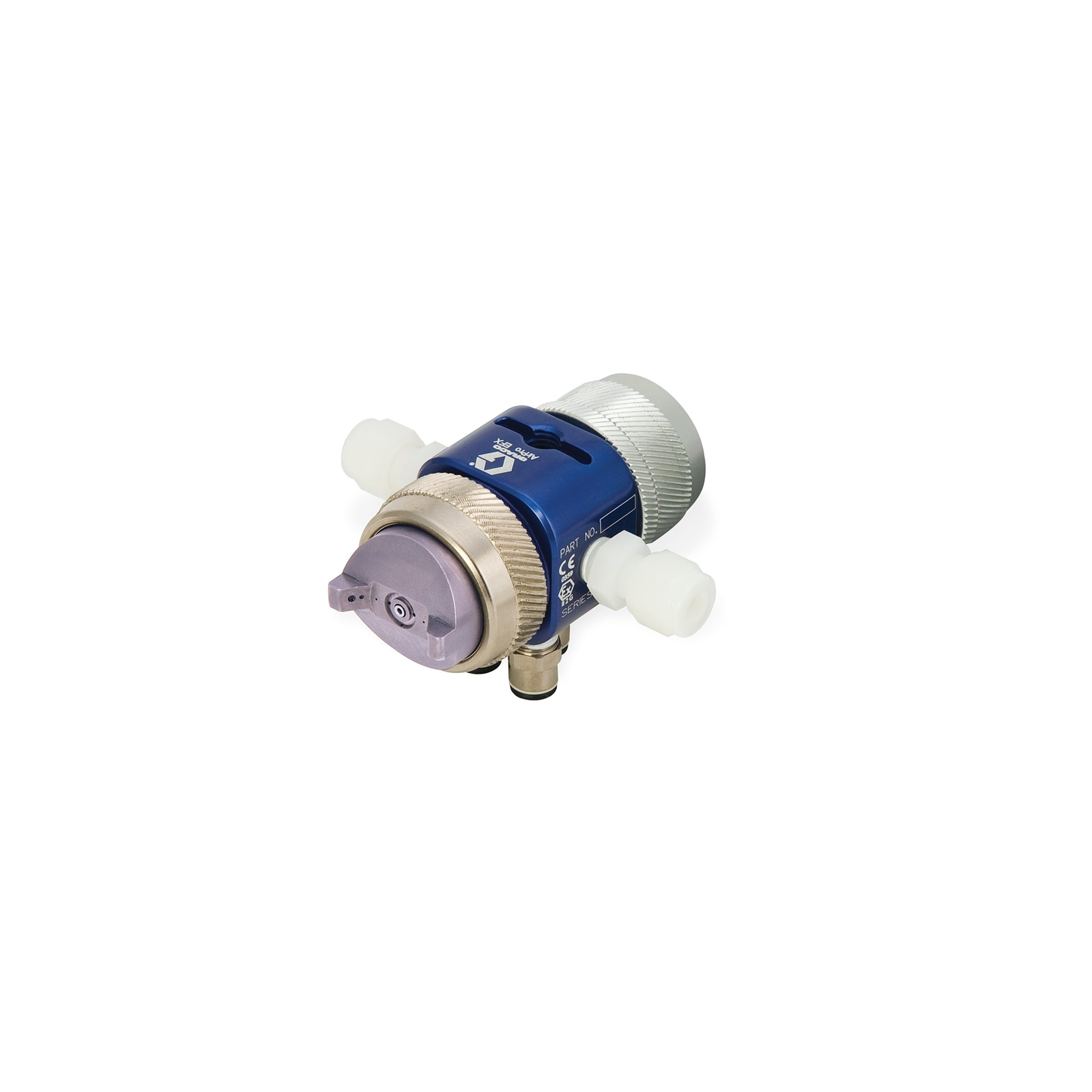

Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
AirPro EFX
AirPro EFX Auto Air Spray Gun, Direct Connect, HVLP, 0.051 inch (1.3 mm) Nozzle, SST Tip, Lock Ring Fluid Adjust Knob
Part Number: 24B883
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciproca...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.
- Aircaps and nozzles deliver superior, precision spray performance
- Precision fluid adjustment with a micrometer-telescoping knob
- High wear components designed for abrasive materials
- Excellent fluid flow rate stability and repeatability
Specifications & Documents
Technical Specifications
Convert to Metric| Applicator Type | Automatic |
|---|---|
| Bleed Type | Bleeder |
| Body Material | Plastic |
| Compatible Material | Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Lock Ring |
| Fluid Orifice Size (in) | 0.051 |
| Gun Activation | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 0.6 |
| Includes | Air Cap with Pin, Needle/Nozzle Kit, Fluid Adjustment Knob |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 11.8 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Flow Rate @ PSI (oz/min) | 1.2 |
| Model | AirPro |
| Needle Tip Material | Stainless Steel |
| Overall Height (in) | 1 |
| Overall Length (in) | 4.1 |
| Overall Width (in) | 1 |
| Purge Method | Air |
| Series | EFX |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Type | Spray Gun |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Plastic |
| Compatible Material | Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Lock Ring |
| Fluid Orifice Size (cm) | 0.13 |
| Fluid Orifice Size (in) | 0.051 |
| Fluid Orifice Size (mm) | 1.3 |
| Gun Activation | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (kg) | 0.27 |
| Includes | Air Cap with Pin, Needle/Nozzle Kit, Fluid Adjustment Knob |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 11.8 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 49 |
| Minimum Flow Rate @ PSI (oz/min) | 1.2 |
| Model | AirPro |
| Needle Tip Material | Stainless Steel |
| Overall Height (cm) | 2.2 |
| Overall Height (mm) | 25 |
| Overall Length (cm) | 10 |
| Overall Length (mm) | 104 |
| Overall Width (cm) | 3.5 |
| Overall Width (mm) | 25 |
| Purge Method | Air |
| Series | EFX |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Type | Spray Gun |
Repair Parts
| Part No. | Description |
|---|---|
| 24C183 | Air Cap (Pewter), includes pin, for AirPro EFX HVLP Guns, 0.020-0.051 inch (0.5-1.3 mm) Nozzle |
Recommended Accessories
Setup & Service Videos
Learn how to set up your AirPro EFX Automatic Air Spray Gun and keep it working well. Playlist begins with a series of three videos about gun setup. The last two videos show disassembly and assembly for service and maintenance.
