AirPro EFX

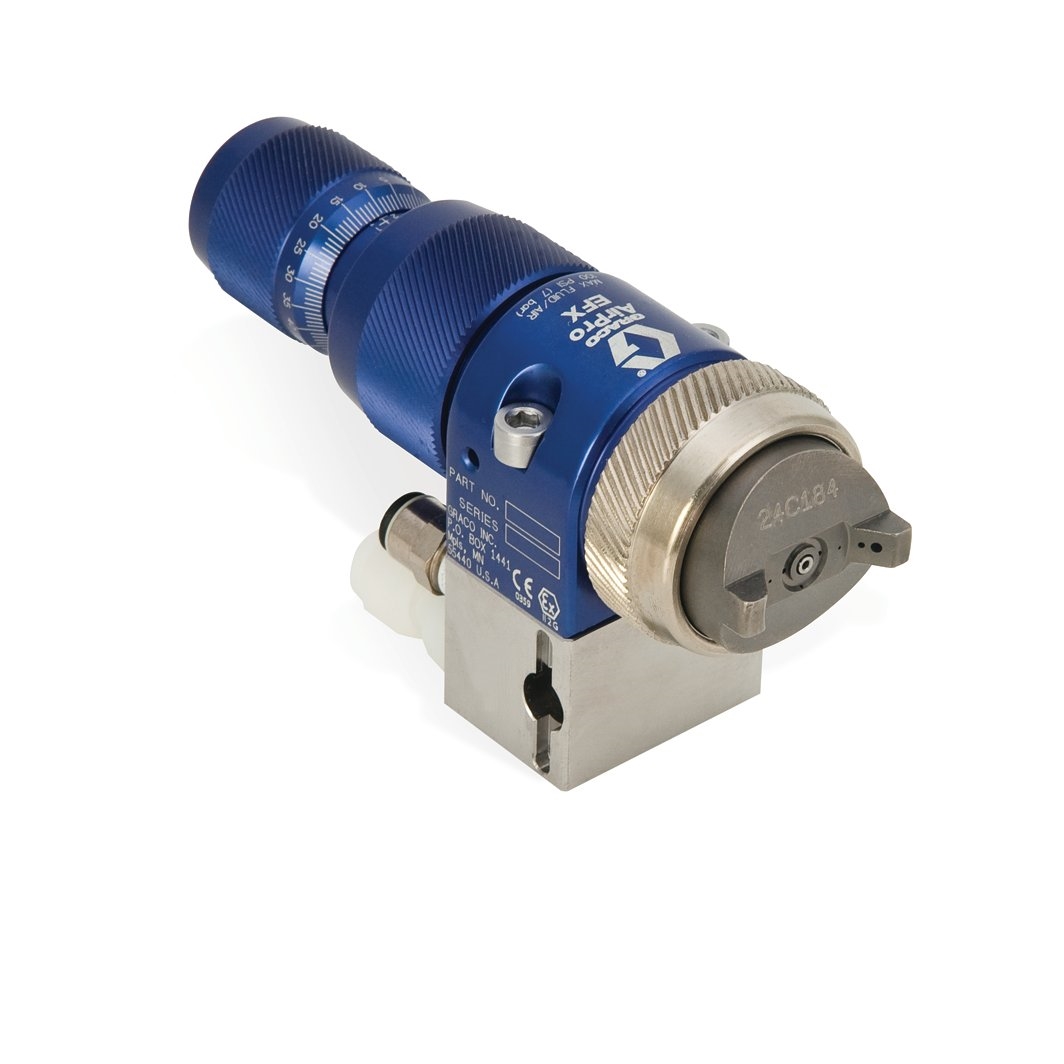

AirPro EFX Auto Air Spray Gun with Manifold, LVMP, 0.020 inch (0.5 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust Knob
Part Number: 24B869
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciproca...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.
- Aircaps and nozzles deliver superior, precision spray performance
- Precision fluid adjustment with a micrometer-telescoping knob
- High wear components designed for abrasive materials
- Excellent fluid flow rate stability and repeatability
Specifications & Documents
Technical Specifications
Convert to MetricApplicator Type | Automatic |
---|---|
Bleed Type | Bleeder |
Body Material | Plastic |
Compatible Material | Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne |
Component Type | Single Component |
Feed Type | Pressure Feed |
Fluid Adjustment Knob | Ultra Precision |
Fluid Orifice Size (in) | 0.020 |
Gun Activation | Automatic |
Gun Type | LVMP Gun |
Gun Weight (lb) | 1.3 |
Includes | Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit |
Maximum Air Inlet Pressure (MPa) | 0.7 |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Air Pressure (MPa) | 0.7 |
Maximum Air Pressure (psi) | 100 |
Maximum Flow Rate @ PSI (oz/min) | 1.7 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Fluid Temperature (°F) | 120 |
Minimum Flow Rate @ PSI (oz/min) | 0.2 |
Model | AirPro |
Needle Tip Material | Stainless Steel |
Overall Height (in) | 1 |
Overall Length (in) | 4.9 |
Overall Width (in) | 1 |
Purge Method | Air |
Series | EFX |
Spray Pattern | Round |
Spray Type | Air Spray |
Technology Type | LVMP |
Type | Spray Gun |
Applicator Type | Automatic |
Bleed Type | Bleeder |
Body Material | Plastic |
Compatible Material | Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne |
Component Type | Single Component |
Feed Type | Pressure Feed |
Fluid Adjustment Knob | Ultra Precision |
Fluid Orifice Size (cm) | 0.051 |
Fluid Orifice Size (in) | 0.020 |
Fluid Orifice Size (mm) | 0.5 |
Gun Activation | Automatic |
Gun Type | LVMP Gun |
Gun Weight (kg) | 0.59 |
Includes | Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit |
Maximum Air Inlet Pressure (MPa) | 0.7 |
Maximum Air Inlet Pressure (bar) | 7 |
Maximum Air Inlet Pressure (kPa) | 700 |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Air Pressure (MPa) | 0.7 |
Maximum Air Pressure (bar) | 7 |
Maximum Air Pressure (kPa) | 700 |
Maximum Air Pressure (psi) | 100 |
Maximum Flow Rate @ PSI (oz/min) | 1.7 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (bar) | 7 |
Maximum Fluid Pressure (kPa) | 700 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Fluid Temperature (°C) | 49 |
Minimum Flow Rate @ PSI (oz/min) | 0.2 |
Model | AirPro |
Needle Tip Material | Stainless Steel |
Overall Height (cm) | 2.6 |
Overall Height (mm) | 25 |
Overall Length (cm) | 12 |
Overall Length (mm) | 124 |
Overall Width (cm) | 3.8 |
Overall Width (mm) | 25 |
Purge Method | Air |
Series | EFX |
Spray Pattern | Round |
Spray Type | Air Spray |
Technology Type | LVMP |
Type | Spray Gun |
Repair Parts
Part No. | Description |
---|---|
24C184 | Air Cap (Brown), includes pin, for AirPro EFX LVMP Guns, 0.020-0.059 inch (0.5-1.5 mm) Nozzle |
Setup & Service Videos
Learn how to set up your AirPro EFX Automatic Air Spray Gun and keep it working well. Playlist begins with a series of three videos about gun setup. The last two videos show disassembly and assembly for service and maintenance.
