AirPro Auto

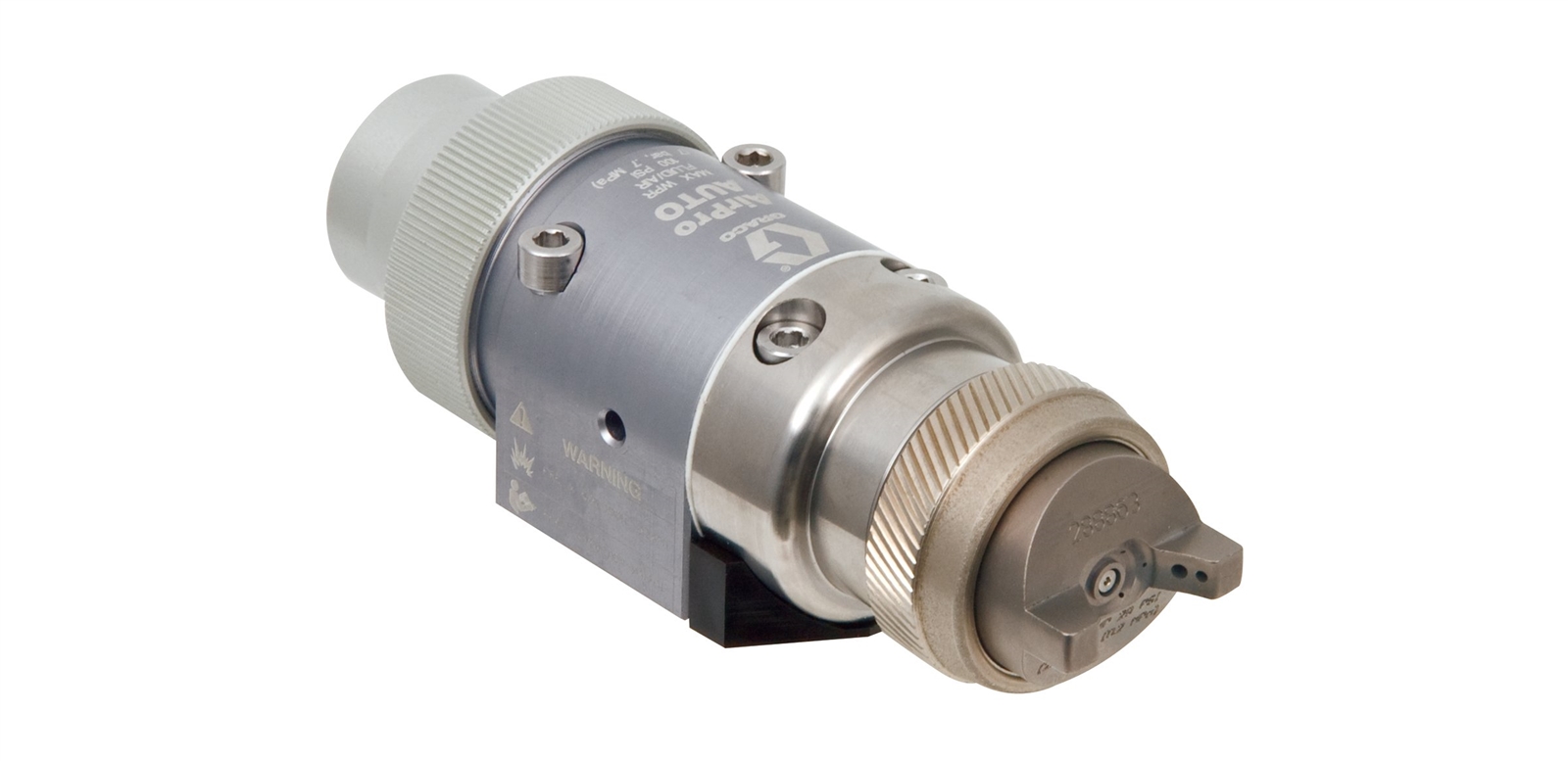

AirPro Automatic Air Spray Gun, compliant, 0.030 in (0.8 mm) nozzle for general metal applications with fluid control knob
Part Number: 24A765
Image is for illustrative purposes only.
AirPro Auto
AirPro Automatic Air Spray Gun, compliant, 0.030 in (0.8 mm) nozzle for general metal applications with fluid control knob
Part Number: 24A765
Graco's automatic applicators are lightweight, compact and provide consistent spray patterns for a high quality finish.
Product is Discontinued
Exact Fit Replacement Product Available

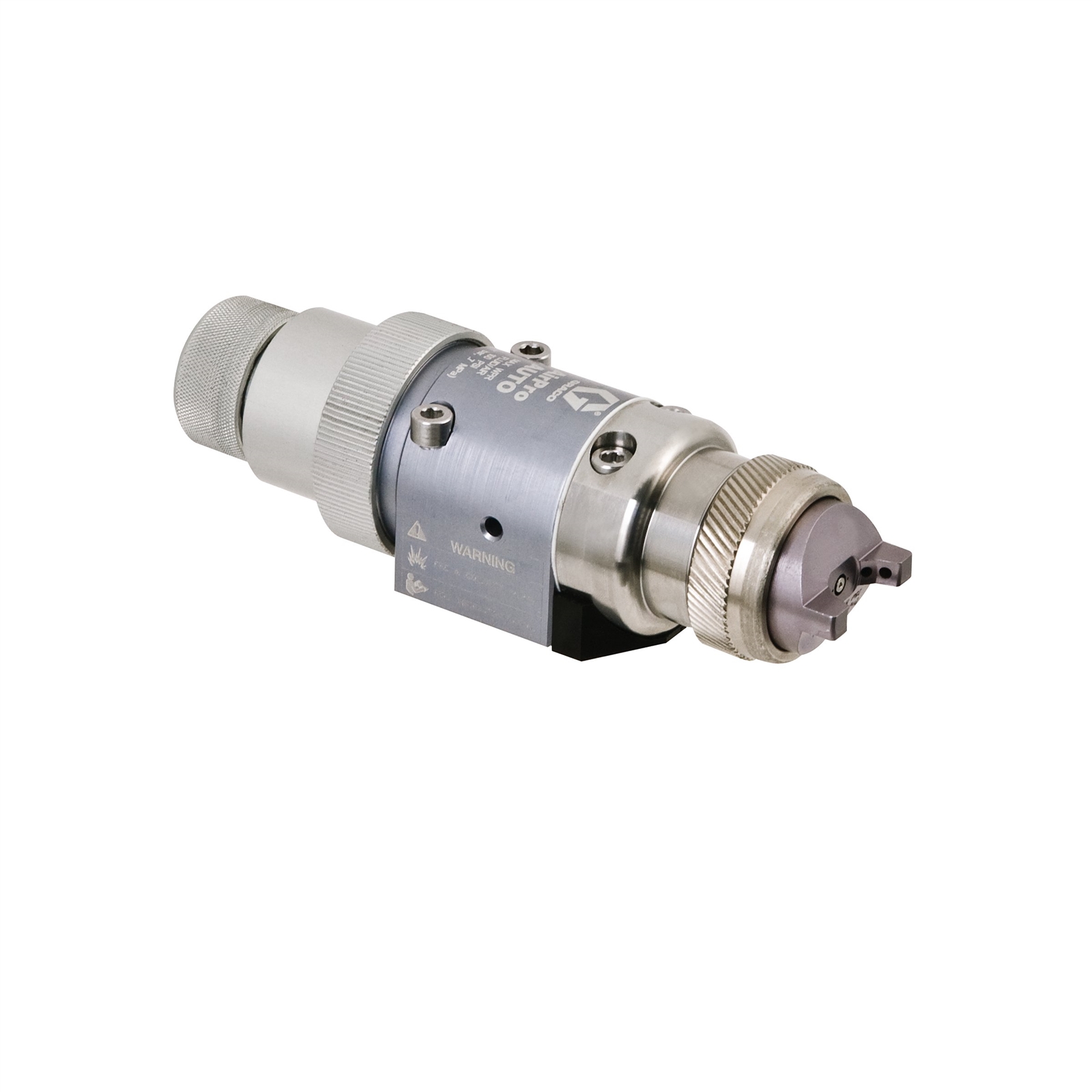

Exact fit products feature the same form, fit and function as the original product.Stellair Automatic Air Spray Gun, Compliant, 0.030 in (0.8 mm) Nozzle for General Applications with fluid control knob
Part Number: 25F181
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco's automatic applicators are lightweight, compact and provide consistent spray patterns for a high quality finish.
- General metal gun models are designed to optimize spray performance
- Fluid control knob for precision fluid adjustment
- Stainless steel construction handles the toughest coatings, from acid to waterborne
- Indexing aircap provides fast and accurate positioning in either the vertical or horizontal position
- Lightweight and compact rounded gun design
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Metal |
|---|---|
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Mortar, High Solids, Sealants, Solventborne, Stains, Waterborne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Orifice Size (in) | 0.030 |
| Gun Activation | Automatic |
| Gun Type | Compliant Gun |
| Gun Weight (lb) | 1.5 |
| Includes | Air Cap With Pin, Air Cap Without Pin, Piston Cap, Manifolds, Nozzle, Needle Tip, Needle Assembly, Needle/Nozzle Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 10 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Flow Rate @ PSI (oz/min) | 4 |
| Model | AirPro |
| Overall Height (in) | 1 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 1 |
| Purge Method | Air |
| Series | Auto |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | Compliant |
| Type | Spray Gun |
| Application | Metal |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Mortar, High Solids, Sealants, Solventborne, Stains, Waterborne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Orifice Size (cm) | 0.08 |
| Fluid Orifice Size (in) | 0.030 |
| Fluid Orifice Size (mm) | 0.8 |
| Gun Activation | Automatic |
| Gun Type | Compliant Gun |
| Gun Weight (g) | 680 |
| Gun Weight (kg) | 0.68 |
| Includes | Air Cap With Pin, Air Cap Without Pin, Piston Cap, Manifolds, Nozzle, Needle Tip, Needle Assembly, Needle/Nozzle Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 10 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 49 |
| Minimum Flow Rate @ PSI (oz/min) | 4 |
| Model | AirPro |
| Overall Height (cm) | 3 |
| Overall Height (mm) | 25 |
| Overall Length (cm) | 13 |
| Overall Length (mm) | 135 |
| Overall Width (cm) | 3.8 |
| Overall Width (mm) | 25 |
| Purge Method | Air |
| Series | Auto |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | Compliant |
| Type | Spray Gun |
Repair Parts
| Part No. | Description |
|---|---|
| 24A512 | Piston Cap, with fluid control knob, for fine adjustment of fluid flow |
| 24A683 | Needle Assembly for AirPro Automatic Guns with 0.030 inch (0.8 mm) Nozzle, General Metal |
| 288183 | Needle Tip Kit (5-pack, 3 grooves) for AirPro Guns with 0.030 inch (0.8 mm) Nozzle |
| 289062 | Nozzle Kit for AirPro Guns with 0.030 inch (0.8 mm) Nozzle, General Metal or Automotive |
| 24B540 | Air Cap, with locating pin, for AirPro Automatic Compliant Guns, General Metal |
| 289042 | Air Cap Kit for AirPro Compliant Guns with 0.020-0.070 inch (0.5-1.8 mm) Nozzle, General Metal |
| 24A687 | Needle/Nozzle Kit for AirPro Automatic Guns with 0.030 inch (0.8 mm) Nozzle, General Metal |
| 289350 | Needle Tip Kit (5-pack, 1 groove), for AirPro Guns with 0.020 inch (0.5 mm) Nozzle |
