Senator

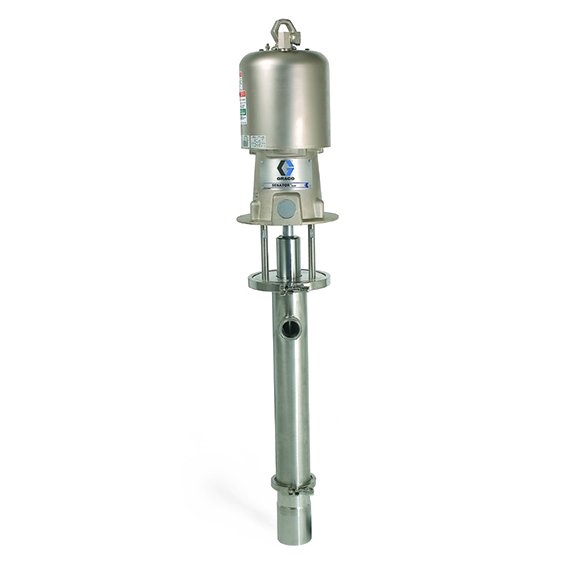

19:1 Ratio Senator Pump for Pail, Drum, or Bulk Tank Ink Applications
Part Number: 246941
![product image](/content/dam/pim/graco/pro/pte/Senator%2019_1.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Senator
19:1 Ratio Senator Pump for Pail, Drum, or Bulk Tank Ink Applications
Part Number: 246941
With higher pump pressures and flow rates, Graco's positive displacement, priming piston pumps handle a broad range of inks with ease. They offer durability, power and reliability in many ink manufacturing or printing applications.
Product is Discontinued
Replacement Product Not Available
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureWith higher pump pressures and flow rates, Graco's positive displacement, priming piston pumps handle a broad range of inks with ease. They offer durability, power and reliability in many ink manufacturing or printing applications.
- Produces up to 1900 psi (131 bar) when mounted on a 800 pump
- Positive displacement, priming piston design provides uniform and easily-controlled delivery
- Extremely durable pump with long-life packing design, and low maintenance
- Evacuates with pails, drums and bins with ease
Specifications & Documents
Technical Specifications
Convert to MetricAir Inlet Size (in) | 3/4 |
---|---|
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPSM |
Application | Industrial |
Compatible Material | Ink |
Fluid Outlet Size (in) | 1 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Material | Carbon Steel |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Continuous Cycle Rate (CPM) | 60 |
Maximum Flow Rate (GPM) | 3 |
Maximum Intermittent Cycle Rate (CPM) | 2.8 |
Maximum Working Pressure (MPa) | 40.3 |
Maximum Working Pressure (psi) | 5850 |
Minimum Flow Rate (GPM) | 2.8 |
Model | Senator |
Package Options | None |
Power Type | Pneumatic |
Pump Ratio | 19:1 |
Type | Piston Transfer Pump |
Air Inlet Size (in) | 3/4 |
Air Inlet Size (mm) | 19.05 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPSM |
Application | Industrial |
Compatible Material | Ink |
Fluid Outlet Size (in) | 1 |
Fluid Outlet Size (mm) | 25.4 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Material | Carbon Steel |
Maximum Air Inlet Pressure (bar) | 6.9 |
Maximum Air Inlet Pressure (kPa) | 690 |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Continuous Cycle Rate (CPM) | 60 |
Maximum Flow Rate (L/min) | 11.4 |
Maximum Intermittent Cycle Rate (CPM) | 2.8 |
Maximum Working Pressure (MPa) | 40.3 |
Maximum Working Pressure (bar) | 403 |
Maximum Working Pressure (kPa) | 40300 |
Maximum Working Pressure (psi) | 5850 |
Model | Senator |
Package Options | None |
Power Type | Pneumatic |
Pump Ratio | 19:1 |
Type | Piston Transfer Pump |
