Corrosion Resistant High Pressure Fluid Regulator, 500-3000 psi Range, 1.0 GPM, SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge
Part Number: 238890

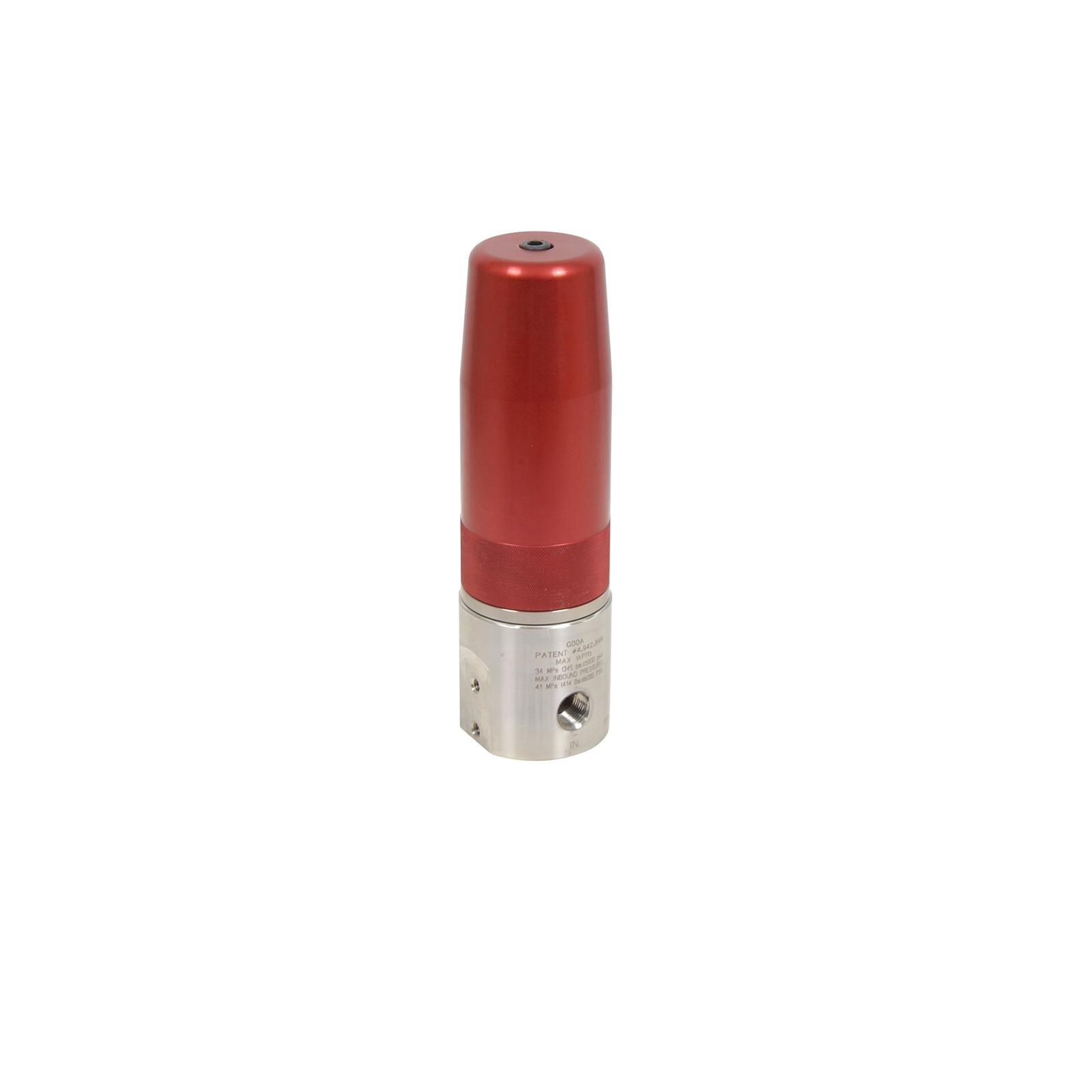

Image is for illustrative purposes only.
Corrosion Resistant High Pressure Fluid Regulator, 500-3000 psi Range, 1.0 GPM, SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge
Part Number: 238890
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Valve cartridge for quick cleaning and replacement – reduce downtime
- Glycerin filled gauge for accurate pressure reading
Specifications & Documents
Technical Specifications
Convert to Metric| Actuation Type | Spring |
|---|---|
| Construction | Stainless Steel |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Type | NPT |
| Includes | Gauge |
| Inlet Size (in) | 3/8 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 1 |
| Maximum Regulated Pressure (MPa) | 21 |
| Maximum Regulated Pressure (psi) | 3000 |
| Maximum Viscosity (cP) | 15000 |
| Maximum Working Pressure (MPa) | 41 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Regulated Pressure (MPa) | 3.4 |
| Minimum Regulated Pressure (psi) | 500 |
| Outlet Size (in) | 3/8 |
| Type | Fluid Regulator |
| Actuation Type | Spring |
| Construction | Stainless Steel |
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Includes | Gauge |
| Inlet Size (cm) | 0.9525 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 3.8 |
| Maximum Regulated Pressure (MPa) | 21 |
| Maximum Regulated Pressure (bar) | 207 |
| Maximum Regulated Pressure (kPa) | 20700 |
| Maximum Regulated Pressure (psi) | 3000 |
| Maximum Viscosity (cP) | 15000 |
| Maximum Working Pressure (MPa) | 41 |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41400 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Regulated Pressure (MPa) | 3.4 |
| Minimum Regulated Pressure (bar) | 34 |
| Minimum Regulated Pressure (kPa) | 3400 |
| Minimum Regulated Pressure (psi) | 500 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Type | Fluid Regulator |
