5 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 30.5 in (77.5 cm), 65 lbs (30 kg), SST
Part Number: 236149

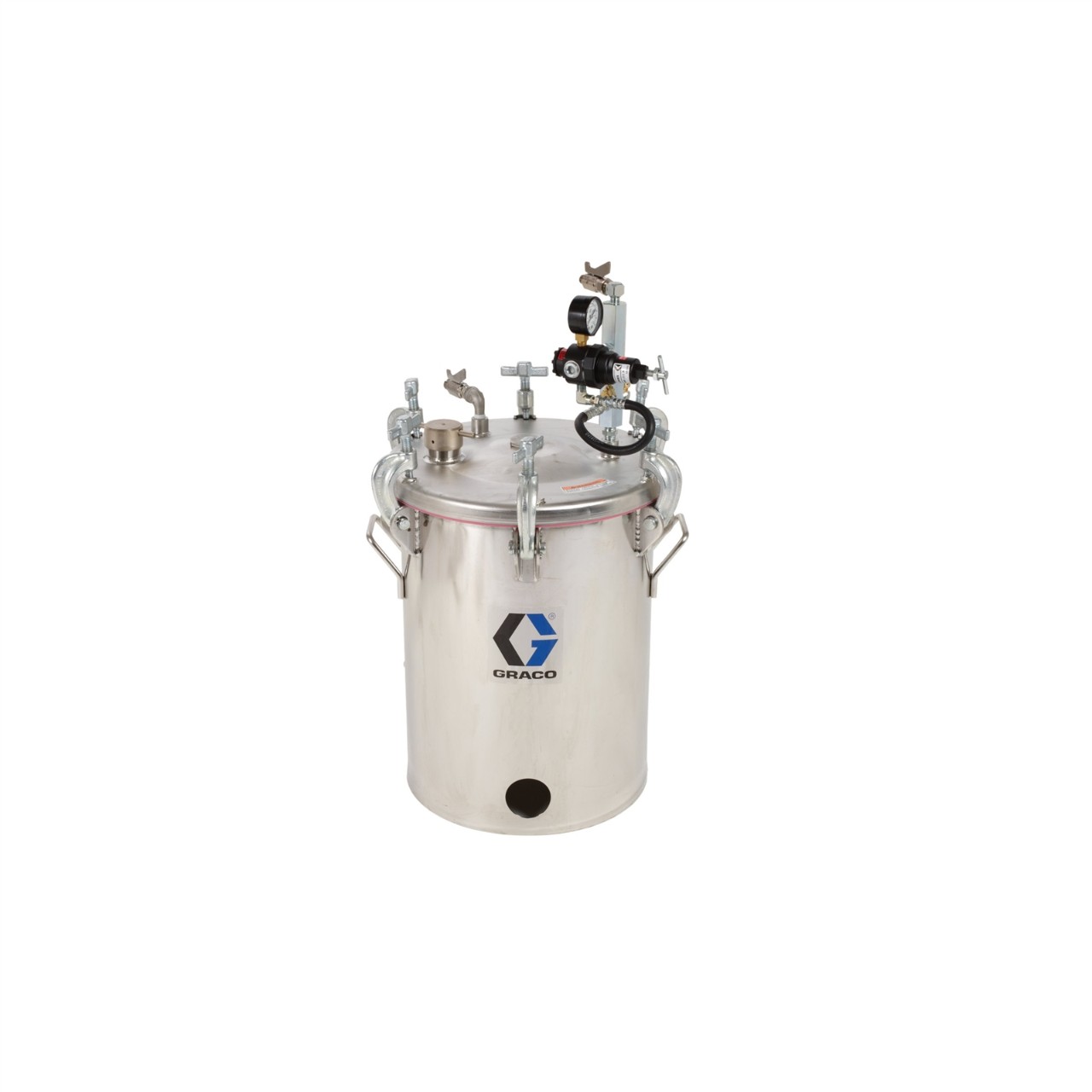

Image is for illustrative purposes only.
5 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 30.5 in (77.5 cm), 65 lbs (30 kg), SST
Part Number: 236149
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Stainless Steel, Santoprene, Polyamide, PET |
|---|---|
| Inlet Size (in) | 1/4 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPT |
| Maximum Volume Capacity (gal) | 5 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (psi) | 100 |
| Outlet Size (in) | 3/8 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPSM |
| Overall Height (in) | 30.5 |
| Overall Width (in) | 19 |
| Type | Tank |
| Weight (lb) | 65 |
| Construction | Stainless Steel, Santoprene, Polyamide, PET |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPT |
| Maximum Volume Capacity (L) | 19 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPSM |
| Overall Height (cm) | 77.5 |
| Overall Height (mm) | 775 |
| Overall Width (cm) | 48.3 |
| Overall Width (mm) | 483 |
| Type | Tank |
| Weight (kg) | 30 |
