2.5 Gallon Pressure Pot. Aluminum construction, up to 50 psi, with dual regulators for fluid and air control.
Part Number: 223833

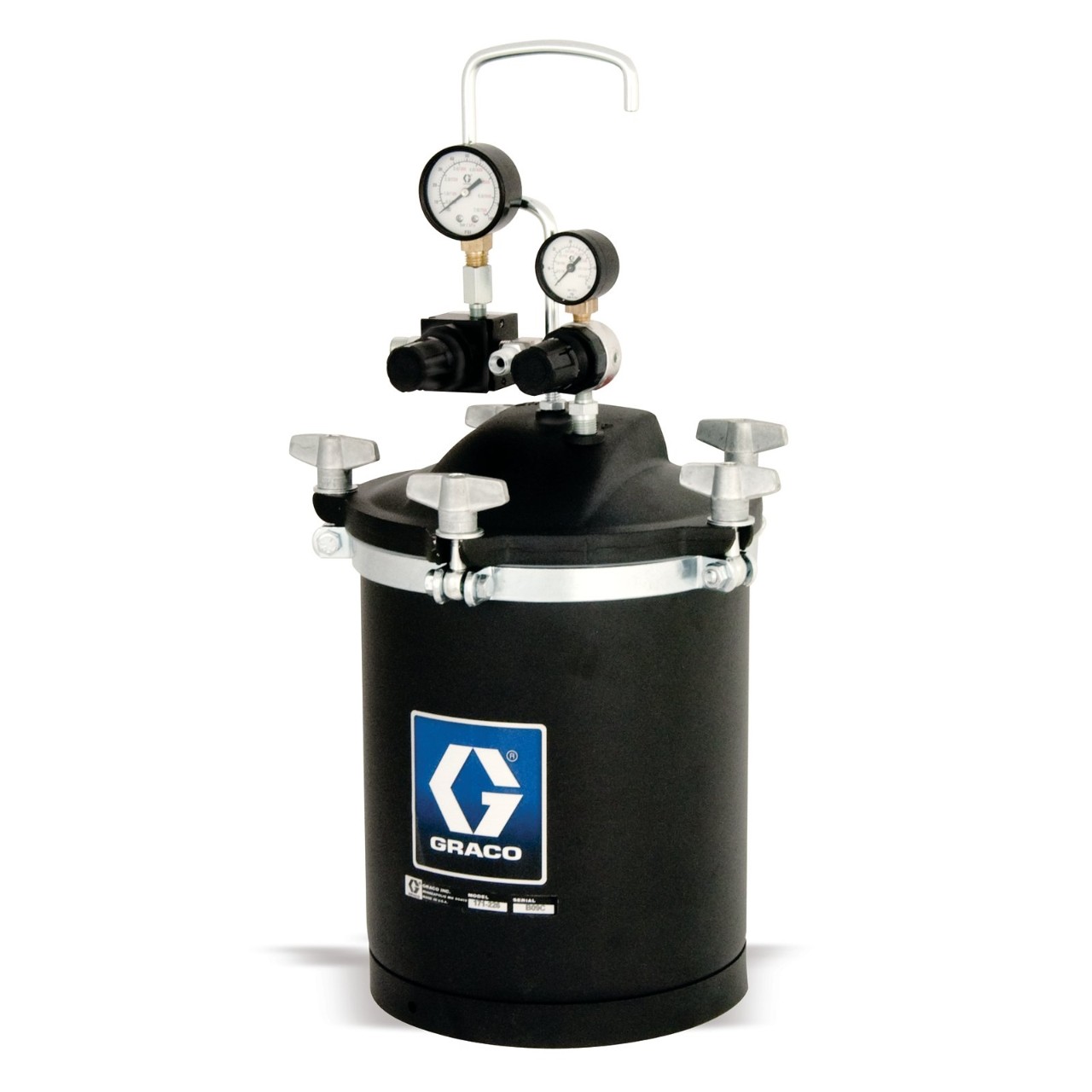

Image is for illustrative purposes only.
2.5 Gallon Pressure Pot. Aluminum construction, up to 50 psi, with dual regulators for fluid and air control.
Part Number: 223833
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
- Painted aluminum tank ideal for adhesives or other coatings
- Dual regulators for pulsation-free fluid delivery
- Built-in handle for easy movement
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Aluminum, Brass, Steel, Buna-N |
|---|---|
| Includes | Dual Regulator |
| Inlet Size (in) | 1/4 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPT |
| Maximum Volume Capacity (gal) | 2.5 |
| Maximum Working Pressure (MPa) | 0.4 |
| Maximum Working Pressure (psi) | 50 |
| Outlet Size (in) | 3/8 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPSM |
| Overall Height (in) | 21 |
| Overall Width (in) | 11.25 |
| Type | Tank |
| Weight (lb) | 11 |
| Construction | Aluminum, Brass, Steel, Buna-N |
| Includes | Dual Regulator |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPT |
| Maximum Volume Capacity (L) | 9 |
| Maximum Working Pressure (MPa) | 0.4 |
| Maximum Working Pressure (bar) | 3.5 |
| Maximum Working Pressure (kPa) | 350 |
| Maximum Working Pressure (psi) | 50 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPSM |
| Overall Height (cm) | 53.3 |
| Overall Height (mm) | 533 |
| Overall Width (cm) | 28.6 |
| Overall Width (mm) | 286 |
| Type | Tank |
| Weight (kg) | 5 |
