Stellair Auto
Stellair Automatic Air Spray Gun, HVLP, 0.070 in (1.8 mm) Ceramic Nozzle
Part Number: 2008543
Video Player is loading.
Video Player is loading.
Image is for illustrative purposes only.
Stellair Auto
Stellair Automatic Air Spray Gun, HVLP, 0.070 in (1.8 mm) Ceramic Nozzle
Part Number: 2008543
High volume low pressure (HVLP) air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
High volume low pressure (HVLP) air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.
Automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.
- High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.

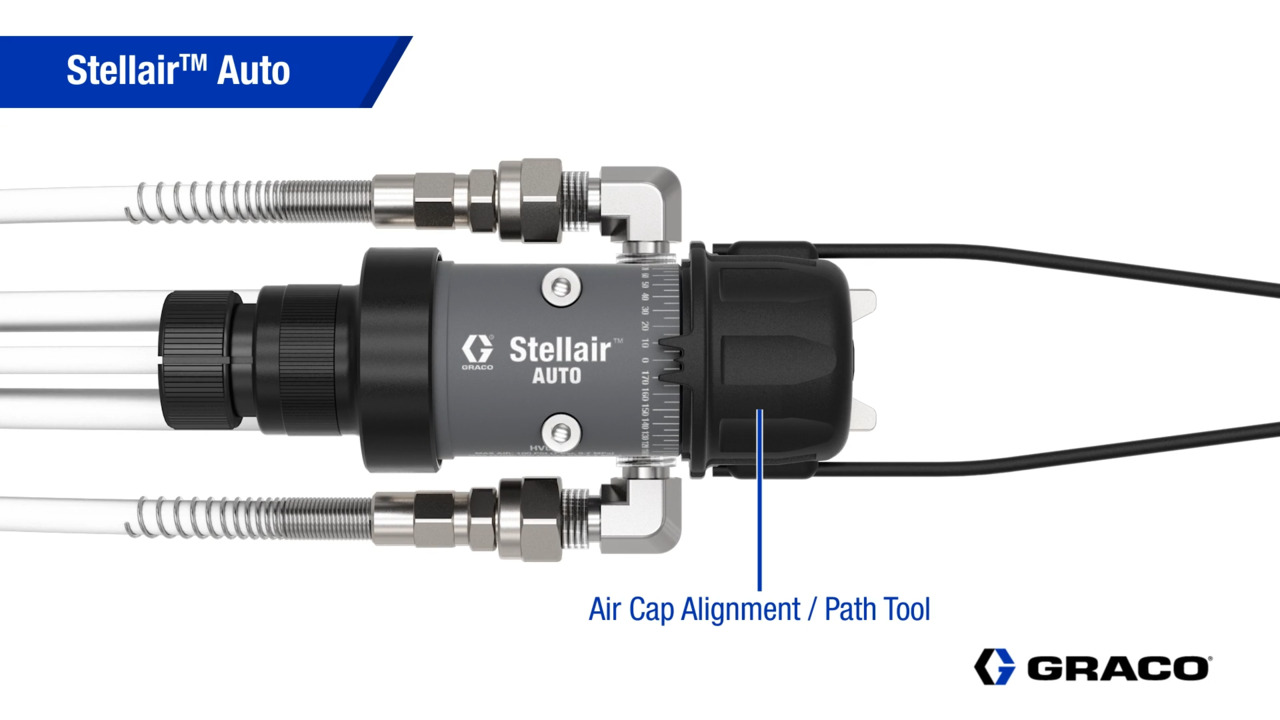

- Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
- One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- Small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
- Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | High Wear |
|---|---|
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Ceramics, High Solids, Solvent-Borne Material, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.070 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Model | Stellair |
| Needle Tip Material | Carbide |
| Nozzle Size (in) | 0.070 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.1 |
| Overall Width (in) | 1.63 |
| Series | Auto |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Application | High Wear |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Ceramics, High Solids, Solvent-Borne Material, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.070 |
| Fluid Orifice Size (mm) | 1.8 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (g) | 430 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Fluid Temperature (°C) | 49 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (bar) | 21 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (bar) | 3.4 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Model | Stellair |
| Needle Tip Material | Carbide |
| Nozzle Size (mm) | 1.8 |
| Overall Height (mm) | 48.3 |
| Overall Length (mm) | 129.5 |
| Overall Width (mm) | 41.4 |
| Series | Auto |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
