i-Series 1"

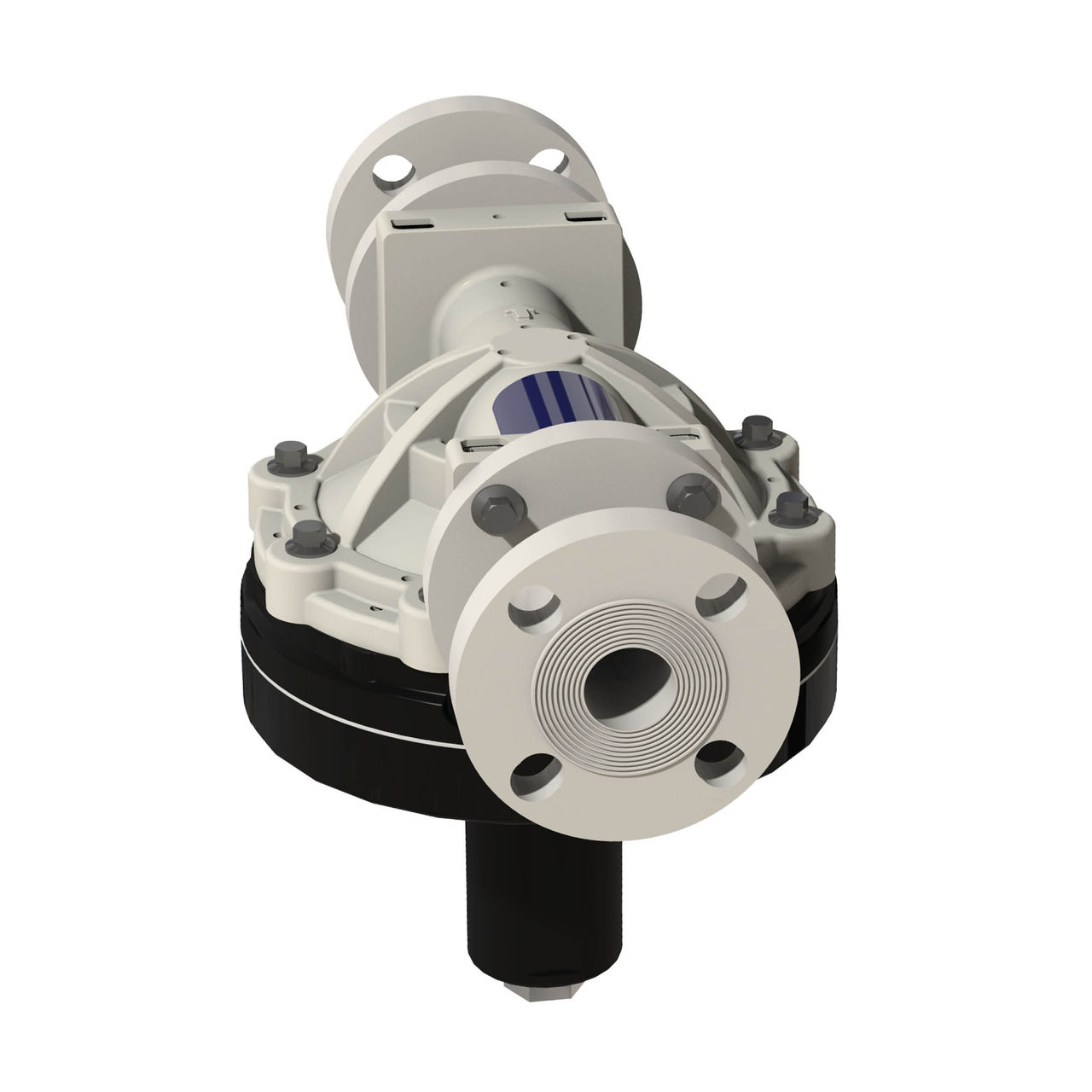

1 in. (25.4 mm) i-Series Polypropylene Pulsation Dampener with PP Seats and SP Diaphragm

Part Number: 2000462

product image

i-Series 1"

1 in. (25.4 mm) i-Series Polypropylene Pulsation Dampener with PP Seats and SP Diaphragm

Part Number: 2000462

Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process

Excess pulsation causes noise, plumbing damage and even product degradation. Dampeners reduce pulsation and vibration, extending the life of your system while maintaining the integrity of the material being pumped.

  • Controlled pulsation for more consistent flow, while minimizing system vibration. Creating a safer work environment.
  • Reduce stress on equipment which improves equipment life, resulting in less maintenance. Absorbing surges and reducing spikes in pressure relieves stress on your pump and system.
  • Minimizes potential fluid shearing; improves product quality, reducing cost.

Specifications & Documents

Technical Specifications

Convert to Metric
Connection Type Flange
Construction Polypropylene
Diaphragm Material Santoprene
Fluid Section Material Polypropylene
Hazardous Location Approval None
Inlet Size (in) 1
Maximum Flow Rate (GPM) 50
Maximum Fluid Operating Temperature (°C) 66
Maximum Fluid Operating Temperature (°F) 150
Maximum Fluid Pressure (MPa) 0.69
Maximum Fluid Pressure (psi) 100
Minimum Fluid Operating Temperature (°C) 0
Minimum Fluid Operating Temperature (°F) 32
Model i-Series
Outlet Size (in) 1
Seat Material Polypropylene
Series 1"
Type Pulsation Dampener
Connection Type Flange
Construction Polypropylene
Diaphragm Material Santoprene
Fluid Section Material Polypropylene
Hazardous Location Approval None
Inlet Size (cm) 2.54
Inlet Size (in) 1
Inlet Size (mm) 25.4
Maximum Flow Rate (L/min) 189
Maximum Fluid Operating Temperature (°C) 66
Maximum Fluid Operating Temperature (°F) 150
Maximum Fluid Pressure (MPa) 0.69
Maximum Fluid Pressure (bar) 6.9
Maximum Fluid Pressure (kPa) 689
Maximum Fluid Pressure (psi) 100
Minimum Fluid Operating Temperature (°C) 0
Minimum Fluid Operating Temperature (°F) 32
Model i-Series
Outlet Size (cm) 2.54
Outlet Size (in) 1
Outlet Size (mm) 25.4
Seat Material Polypropylene
Series 1"
Type Pulsation Dampener
