Renegade TSP Hydraulic Power Pack, Wireless Pendant
Part Number: 17U633





Renegade TSP Hydraulic Power Pack, Wireless Pendant
Part Number: 17U633
The Graco Renegade Torque Series Pump is designed to be different and field-proven to be Faster…Stronger…and Smarter than any other hydraulic bolting pack ever built. The Renegade is designed specifically for bolting applications — not a lifting and jacking pump re-purposed for bolting.
Product is Discontinued
Replacement Product Not Available
Features
Product Brochure
The Graco Renegade Torque Series Pump is designed to be different and field-proven to be Faster…Stronger…and Smarter than any other hydraulic bolting pack ever built. The Renegade is designed specifically for bolting applications — not a lifting and jacking pump re-purposed for bolting.
Oversized, dual-action piston pumps run stronger and cooler to make sure you finish bolt torquing jobs at least 2 times faster. The unique wireless pendant provides less fatigue and the entire system is designed for tough, all-weather operation.

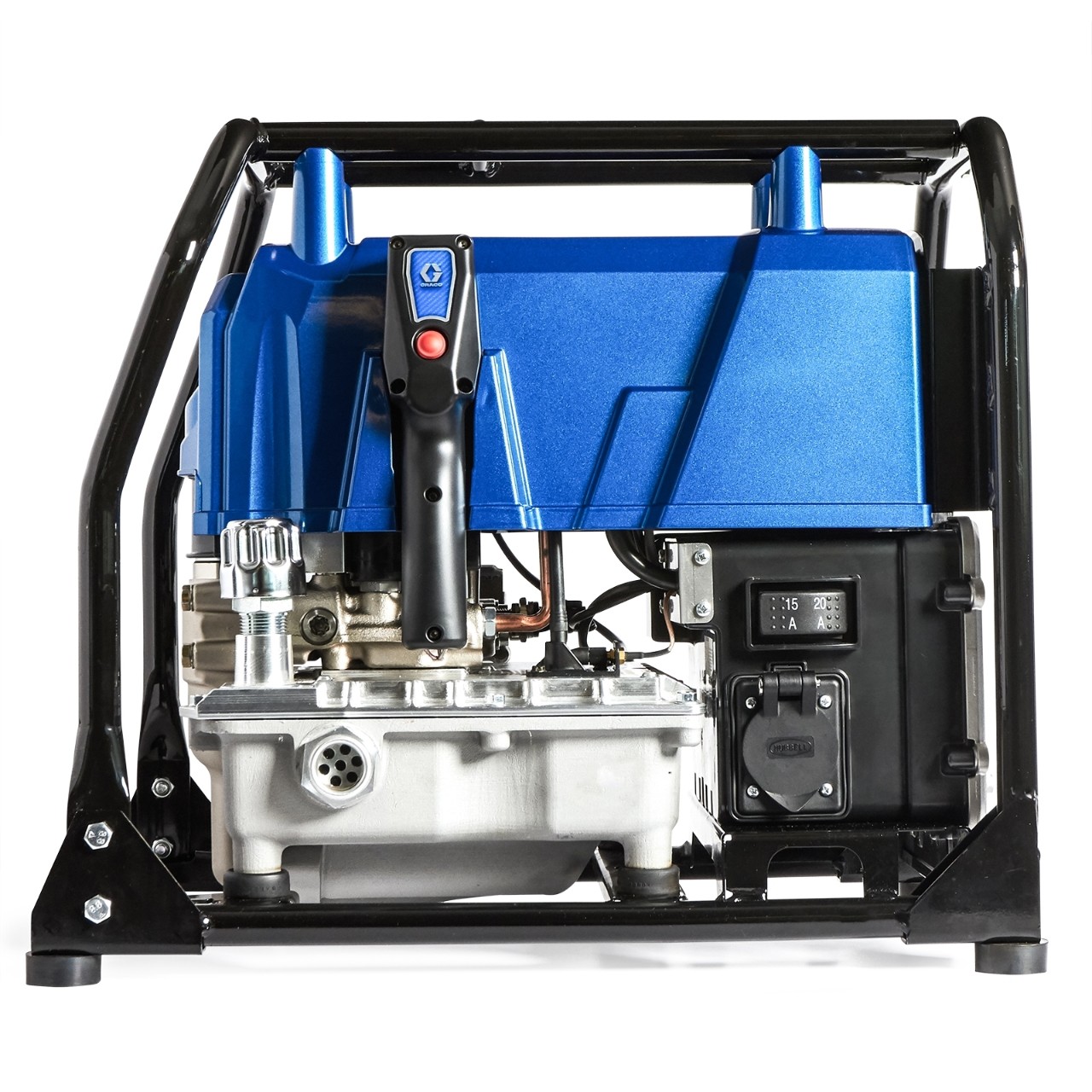

- Wireless Pendant
- No cord to manage, control, repair or wrap up at the end of the day
- Long range antenna, for operating up to 100 ft away
- User-friendly design prevents fatigue
- EZ-Press Thumb Control provides the lightest press force is less fatiguing than any other pendant
- EZ-Pull Trigger allows you to easily switch to a convenient trigger pull operation
- Includes a magnet on its tether strap
- On-Board Manual Advance Switch
- Provides the ability to operate the pack even without a pendant
- Lose the pendant, drive over the pendant, no matter what happens you still get the job done
- Direct Connect Power Port
- Grab your extension cord and plug it right into the pack (up to 100 ft) — easily get a replacement anywhere
- No hard-wired cord to fail or repair

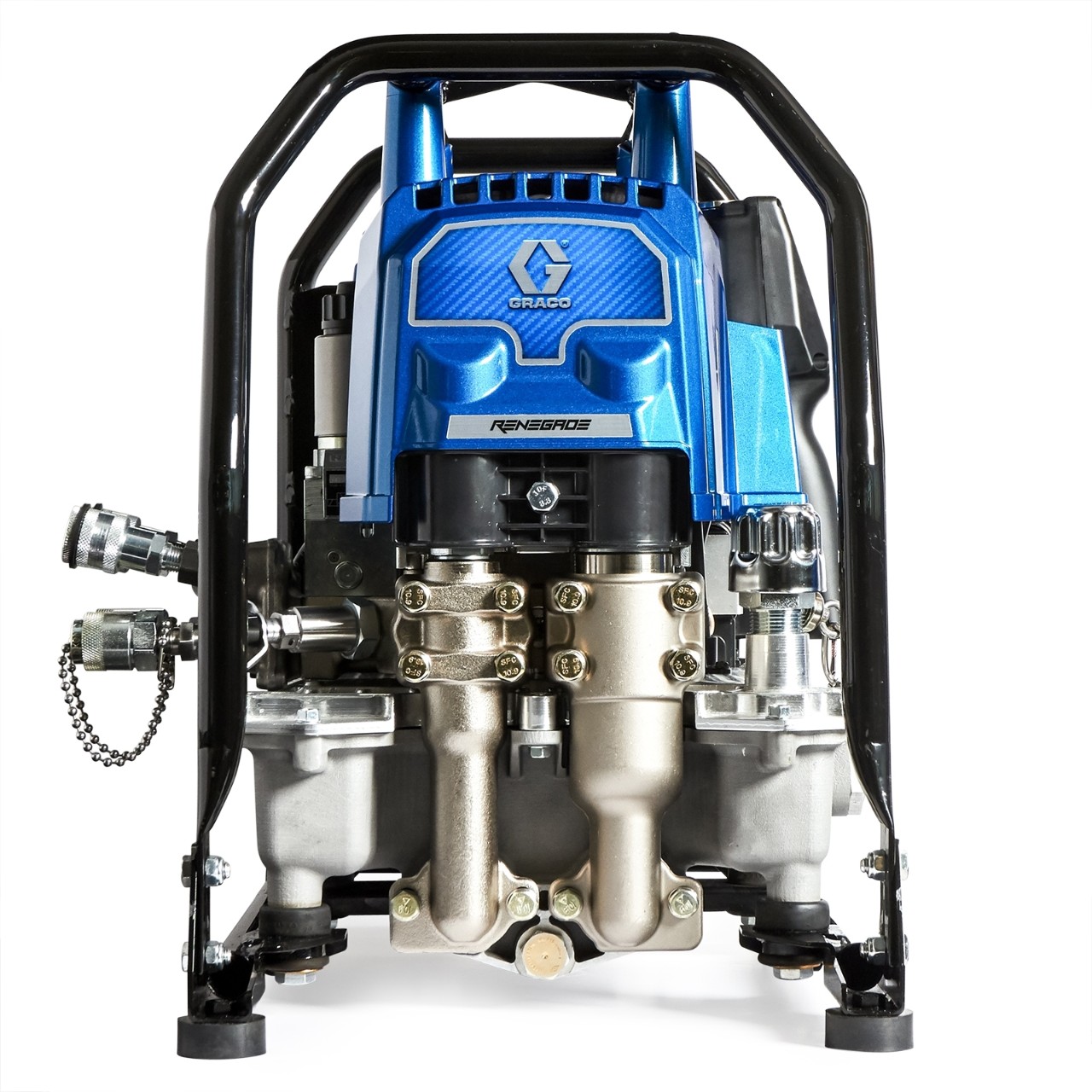

- Oversized Piston Pumps
- Delivers more oil per stroke—in fact, each stroke delivers 15X more oil than
- typical pumps
- Designed to deliver maximum oil flow across the entire bolting application
- Double acting pump design delivers oil flow on both the up and down stroke,
- increasing efficiency and speed
- Run slower and cooler resulting in less wear and longer life
- Variable Speed Brushless Motor
- Automatically changes speed to maximize oil flow
- Most tool cycles occur during run down and return strokes, these are completed at maximum motor speed
- Runs cool even with long extension cords
- Optimized for heat transfer with current carrying windings on the outer motor case
- Heat dissipating cooling fins carry heat away to keep the motor running cool
- ProGuard Protection System prevents damage associated with connecting to incorrect power and provides an error message indicating that high or low voltage was detected
- High-Capacity Oil Cooler
- Over 240 square inches of cooling fins efficiently transfer heat away from the critical system components to ensure long life

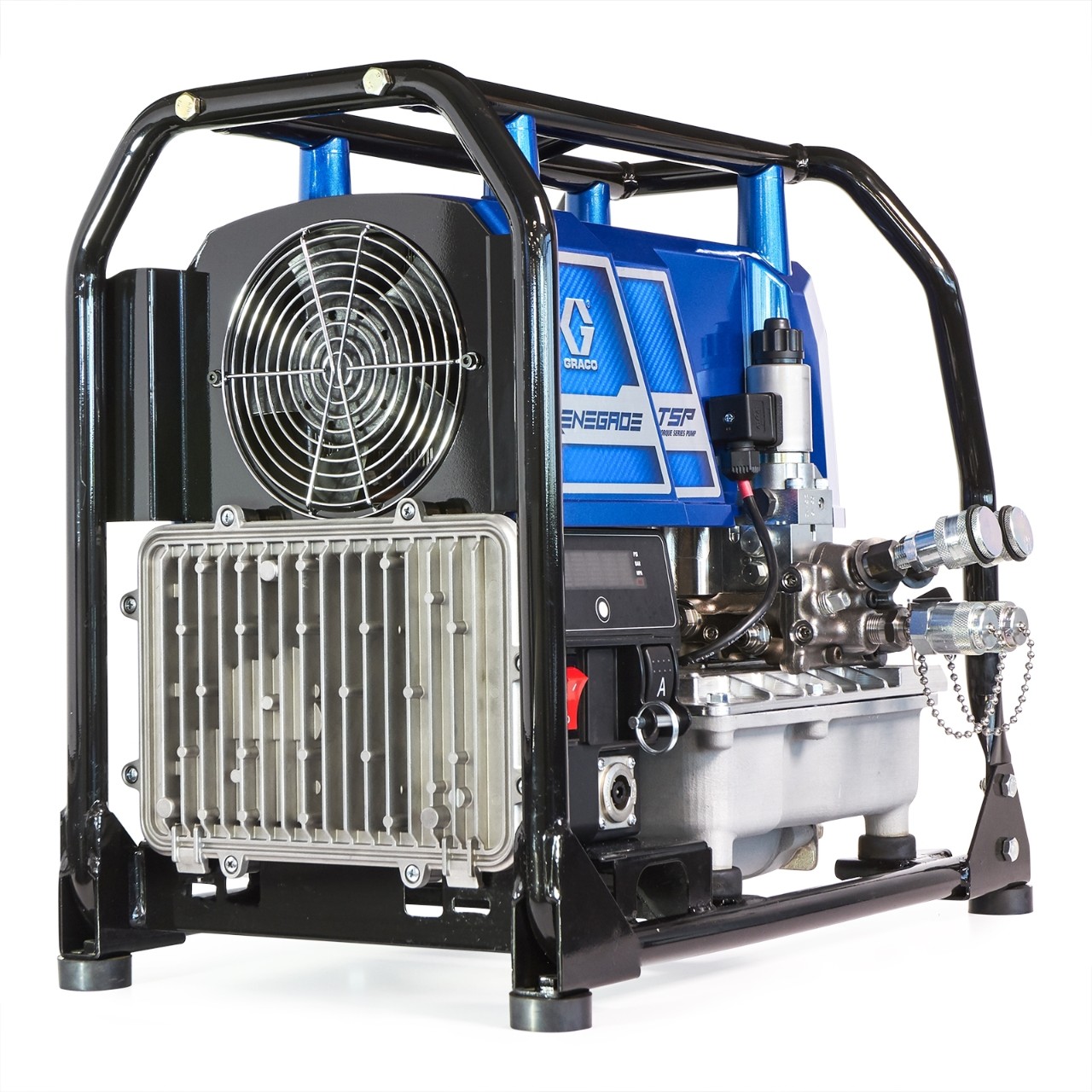

- High-Flow Cooling Fan
- Delivers constant air flow across all critical system components to extend run times
- High-Visibility LED Display Screen
- Readable in all light conditions, long distances and at wide angles
- Pressure read-out displays real time pressure
- Re-settable hour meter is perfect for tracking oil changes
- Tracks the total lifetime operation hours
- Choose the device the pack responds to (wireless pendant, corded pendant, or manual switch)
- Connect a calibrated external gauge and easily re-calibrate in seconds
- 90 second auto priming routine ensures complete system priming
- Real World Filtration
- Dual-layer filter design with 60 mesh outer screen and ultra fine 200 mesh internal screen
- Incoming oil filters are also at the connection point to help decrease the chance of contaminating the oil each time a hose or tool is connected
- ProConnect Pump Replacement System
- One-part pump replacement
- Simply replace the pump on the job using a single tool—without draining the reservoir
- Keep a spare and never be down for more than a few minutes
- Removed pump can be rebuilt and re-used later
Specifications & Documents
Technical Specifications
Convert to MetricType | Piston Pump Package |
---|---|
Type | Piston Pump Package |
