Air Regulator, 1/4(f) inlet/outlet, 0-180 psi (0-12.4 bar), zinc plated
Part Number: 110318

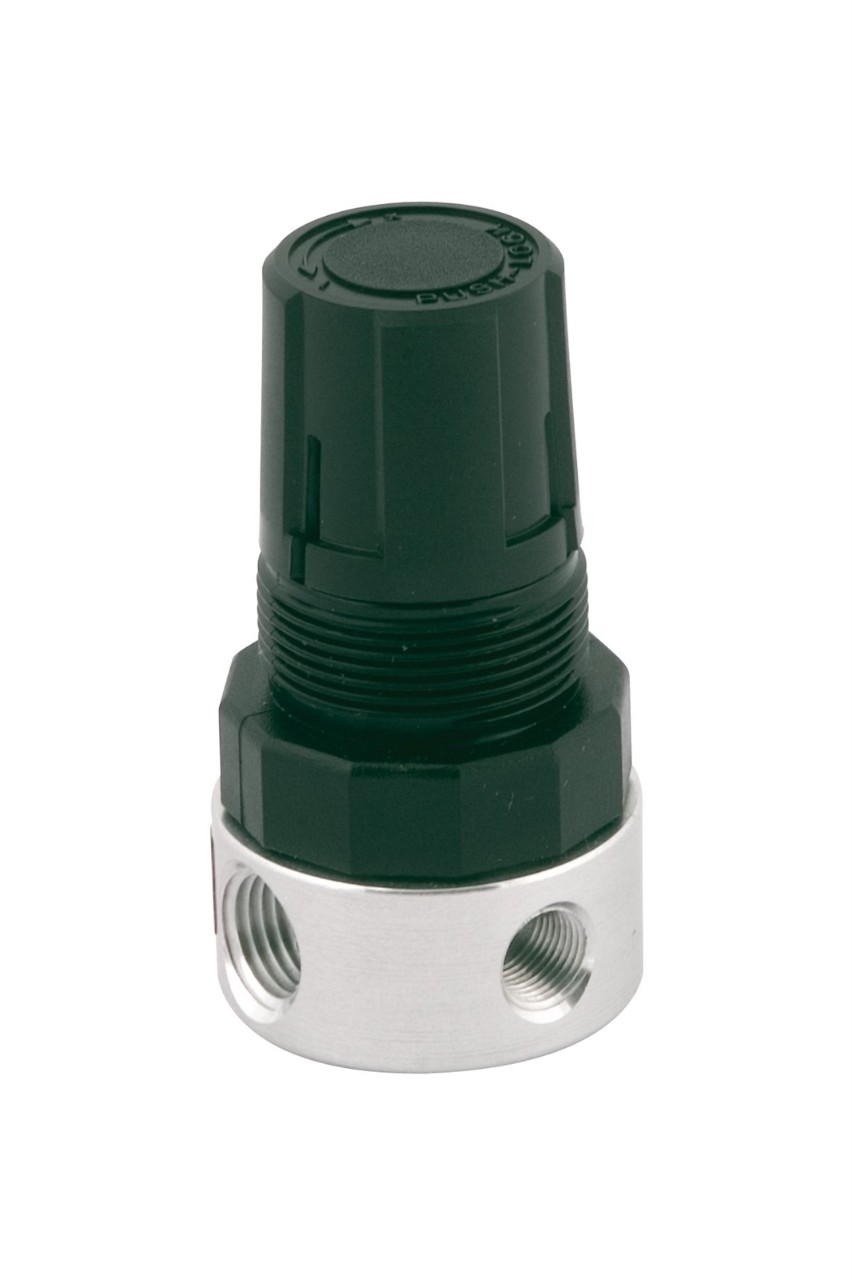

Image is for illustrative purposes only.
Air Regulator, 1/4(f) inlet/outlet, 0-180 psi (0-12.4 bar), zinc plated
Part Number: 110318
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
- Multiple outlets for connecting equipment, gauges, or ball valves
- Accurate adjustment of air pressure for process control
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| For Use With | Mini-Flo, Standard, Fast-Ball |
| Gauge Port Size (in) | 1/8 |
| Gauge Port Type | NPT |
| Handle Type | Knob |
| Includes | Regulator Only |
| Maximum Air Flow Rate (SCFM) | 15 |
| Maximum Air Inlet Pressure (MPa) | 2.1 |
| Maximum Air Inlet Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Regulated Pressure (MPa) | 1.1 |
| Maximum Regulated Pressure (psi) | 180 |
| Minimum Operating Temperature (°F) | 40 |
| Minimum Regulated Pressure (psi) | 0 |
| Outlet Size (in) | 1/4 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT |
| Type | Air Regulator |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| For Use With | Mini-Flo, Standard, Fast-Ball |
| Gauge Port Size (cm) | 0.3175 |
| Gauge Port Size (in) | 1/8 |
| Gauge Port Size (mm) | 3.175 |
| Gauge Port Type | NPT |
| Handle Type | Knob |
| Includes | Regulator Only |
| Maximum Air Inlet Pressure (MPa) | 2.1 |
| Maximum Air Inlet Pressure (bar) | 21 |
| Maximum Air Inlet Pressure (kPa) | 2100 |
| Maximum Air Inlet Pressure (psi) | 300 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Regulated Pressure (MPa) | 1.1 |
| Maximum Regulated Pressure (bar) | 11 |
| Maximum Regulated Pressure (kPa) | 1100 |
| Maximum Regulated Pressure (psi) | 180 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Regulated Pressure (bar) | 0 |
| Minimum Regulated Pressure (kPa) | 0 |
| Minimum Regulated Pressure (psi) | 0 |
| Outlet Size (cm) | 0.635 |
| Outlet Size (in) | 1/4 |
| Outlet Size (mm) | 6.35 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT |
| Type | Air Regulator |
