Air Regulator, 1/2(f) inlet/outlet, 0-125 psi (0-8.6 bar), zinc plated
Part Number: 104267

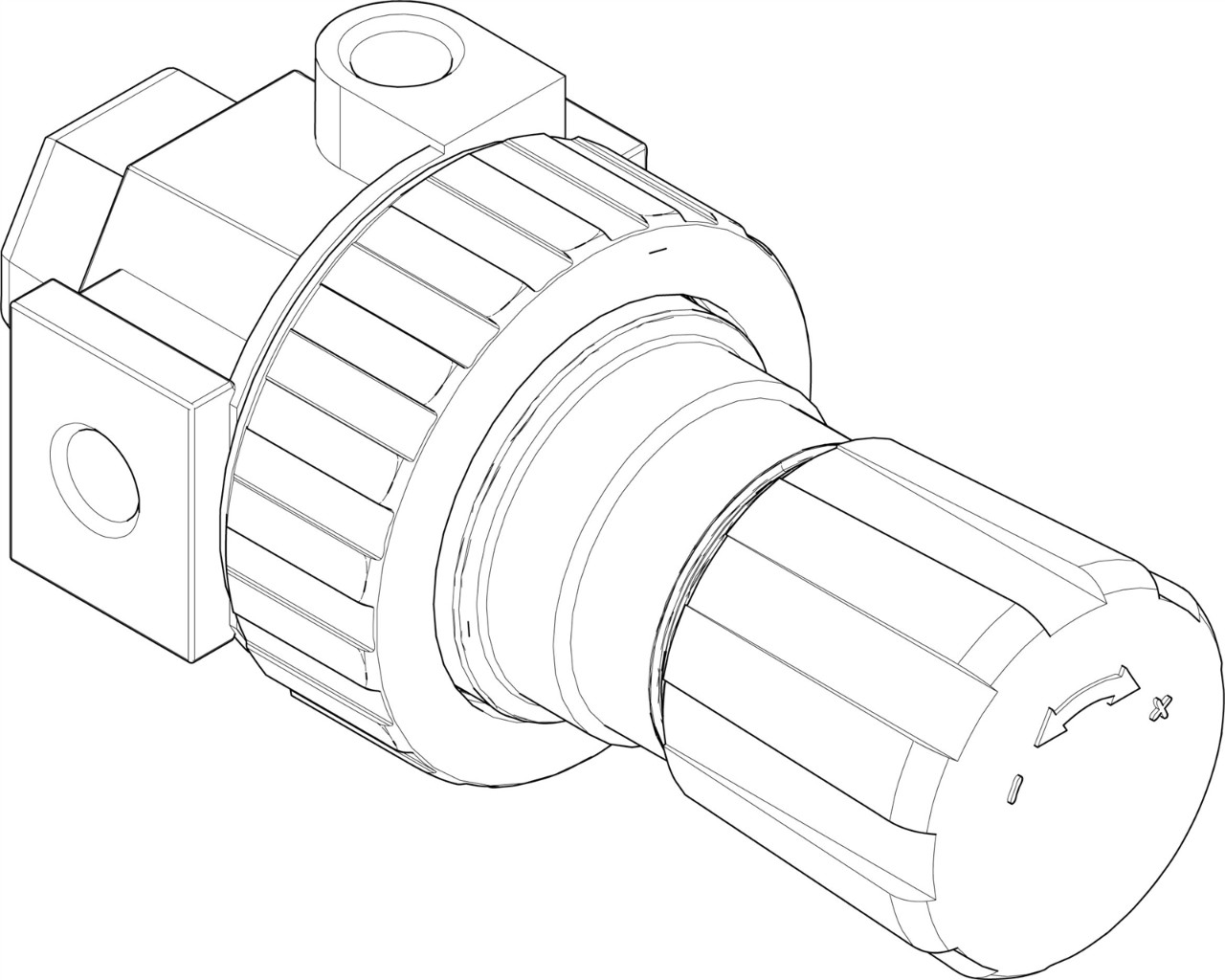

Image is for illustrative purposes only.
Air Regulator, 1/2(f) inlet/outlet, 0-125 psi (0-8.6 bar), zinc plated
Part Number: 104267
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
- Multiple outlets for connecting equipment, gauges, or ball valves
- Accurate adjustment of air pressure for process control
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/2 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| For Use With | Monark, President, Husky 1030, Glutton |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Type | NPT |
| Handle Type | Tee |
| Includes | Regulator Only |
| Maximum Air Flow Rate (SCFM) | 90 |
| Maximum Air Inlet Pressure (MPa) | 2.1 |
| Maximum Air Inlet Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Regulated Pressure (MPa) | 0.9 |
| Maximum Regulated Pressure (psi) | 125 |
| Minimum Operating Temperature (°F) | 40 |
| Minimum Regulated Pressure (psi) | 0 |
| Outlet Size (in) | 1/2 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT |
| Type | Air Regulator |
| Air Inlet Size (cm) | 1.27 |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Size (mm) | 12.7 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| For Use With | Monark, President, Husky 1030, Glutton |
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Handle Type | Tee |
| Includes | Regulator Only |
| Maximum Air Inlet Pressure (MPa) | 2.1 |
| Maximum Air Inlet Pressure (bar) | 21 |
| Maximum Air Inlet Pressure (kPa) | 2100 |
| Maximum Air Inlet Pressure (psi) | 300 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Regulated Pressure (MPa) | 0.9 |
| Maximum Regulated Pressure (bar) | 9 |
| Maximum Regulated Pressure (kPa) | 900 |
| Maximum Regulated Pressure (psi) | 125 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Regulated Pressure (bar) | 0 |
| Minimum Regulated Pressure (kPa) | 0 |
| Minimum Regulated Pressure (psi) | 0 |
| Outlet Size (cm) | 1.27 |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT |
| Type | Air Regulator |
