G-Force II 4240

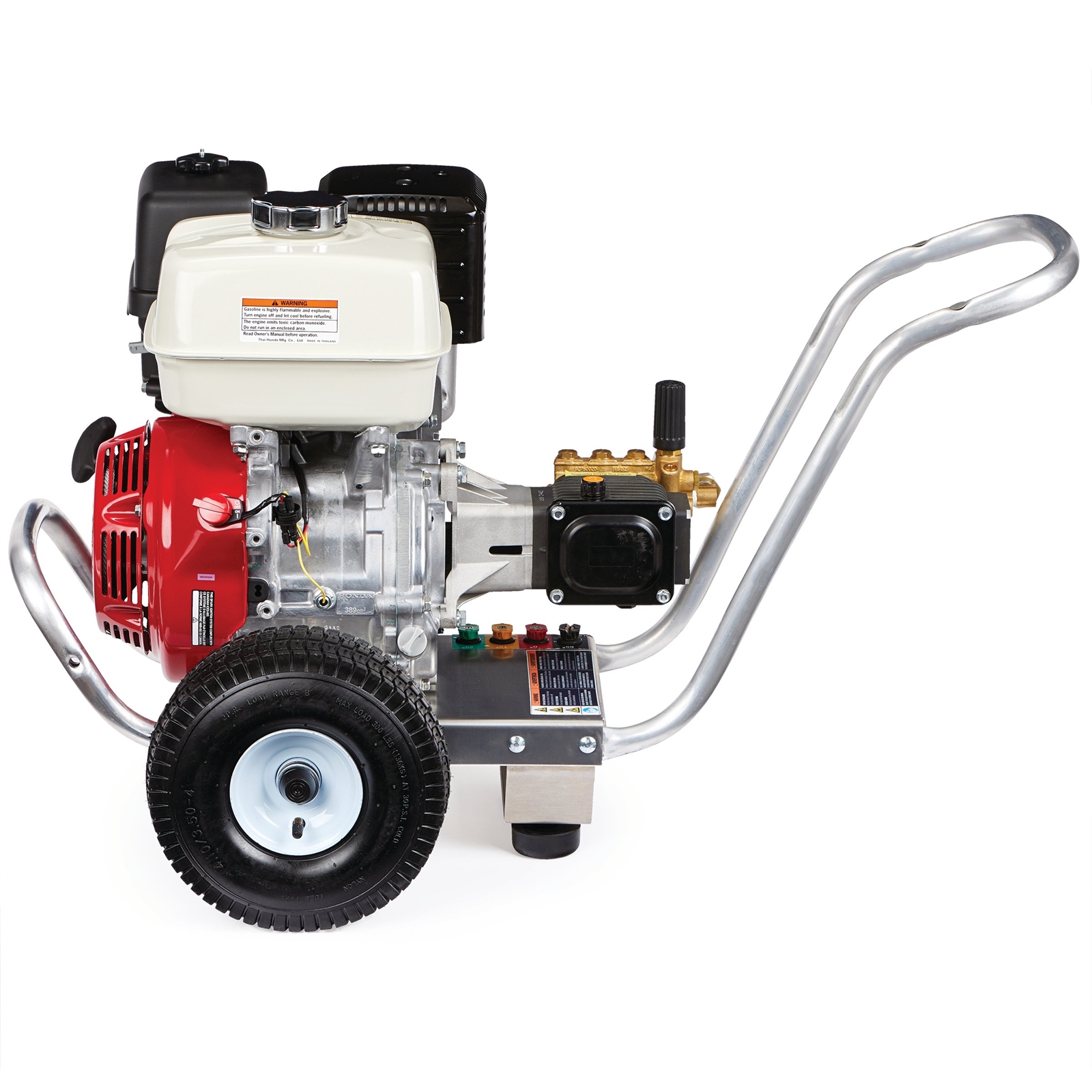

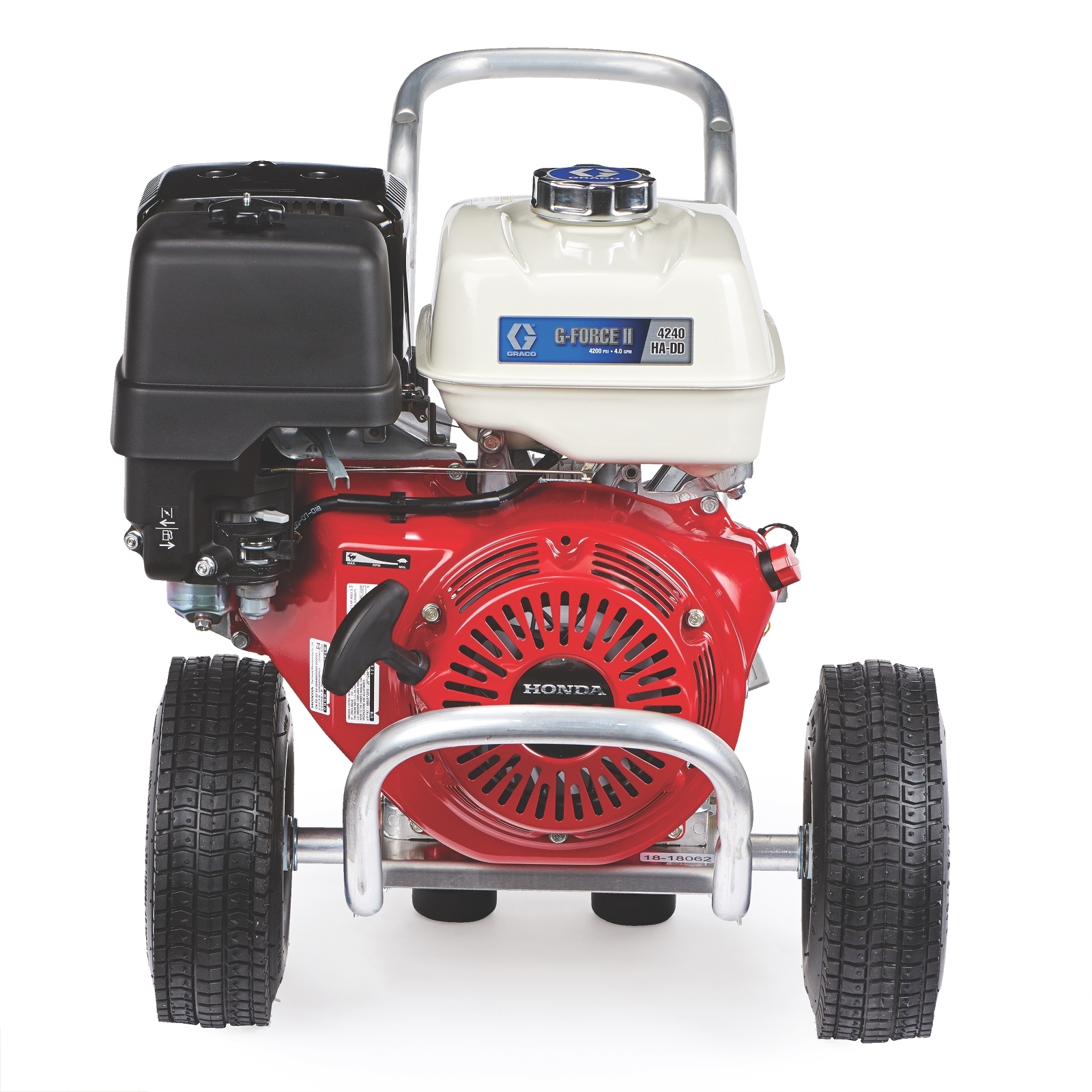

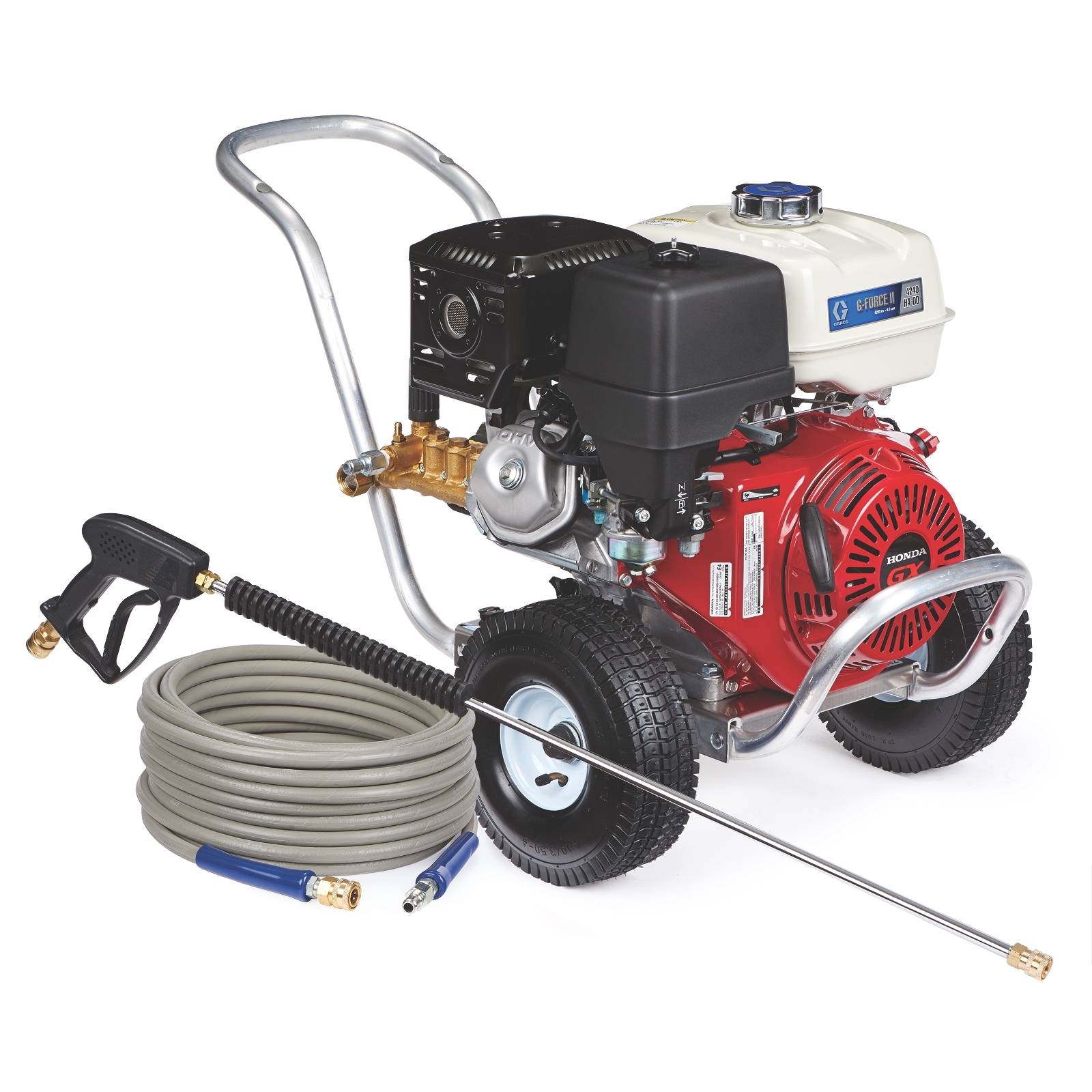

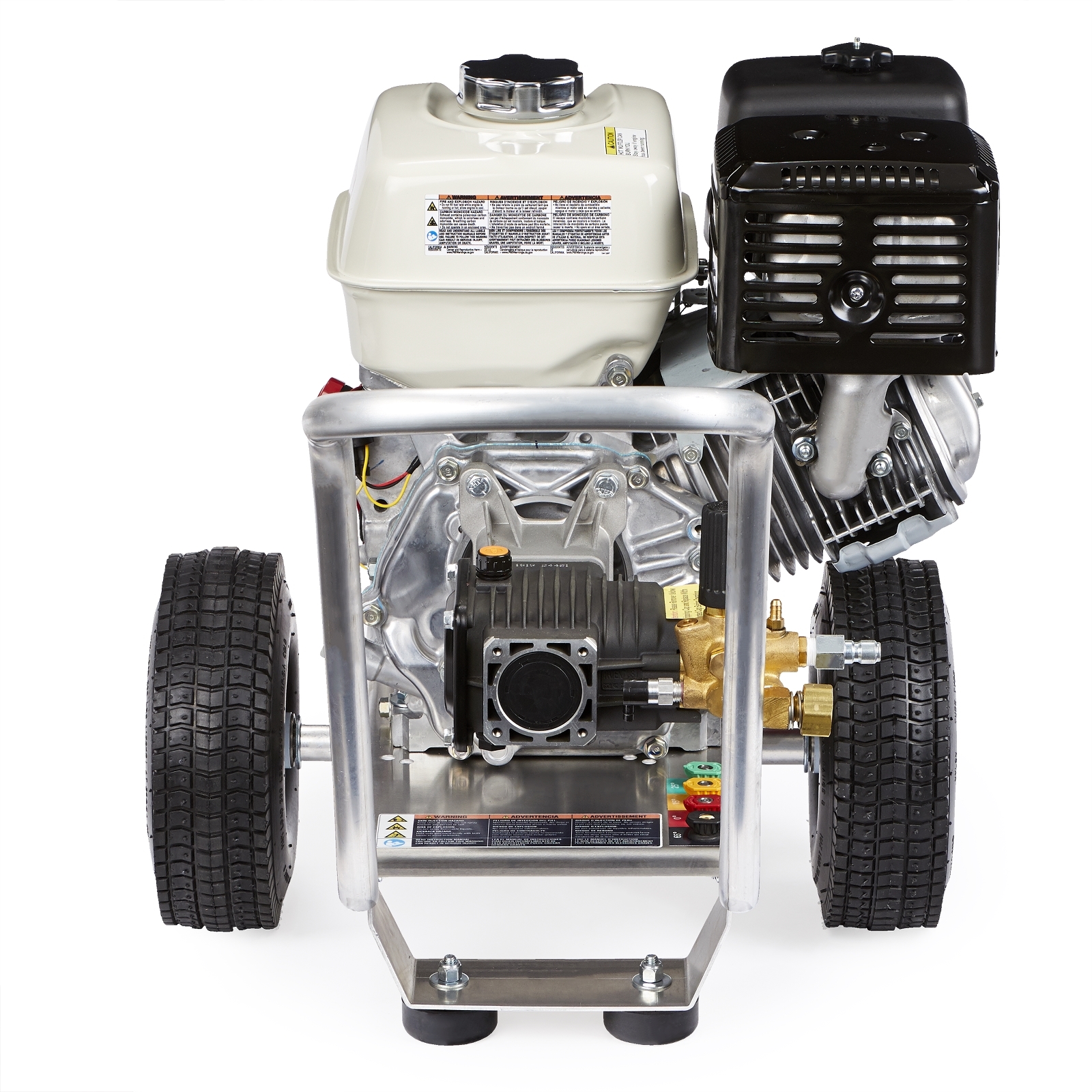

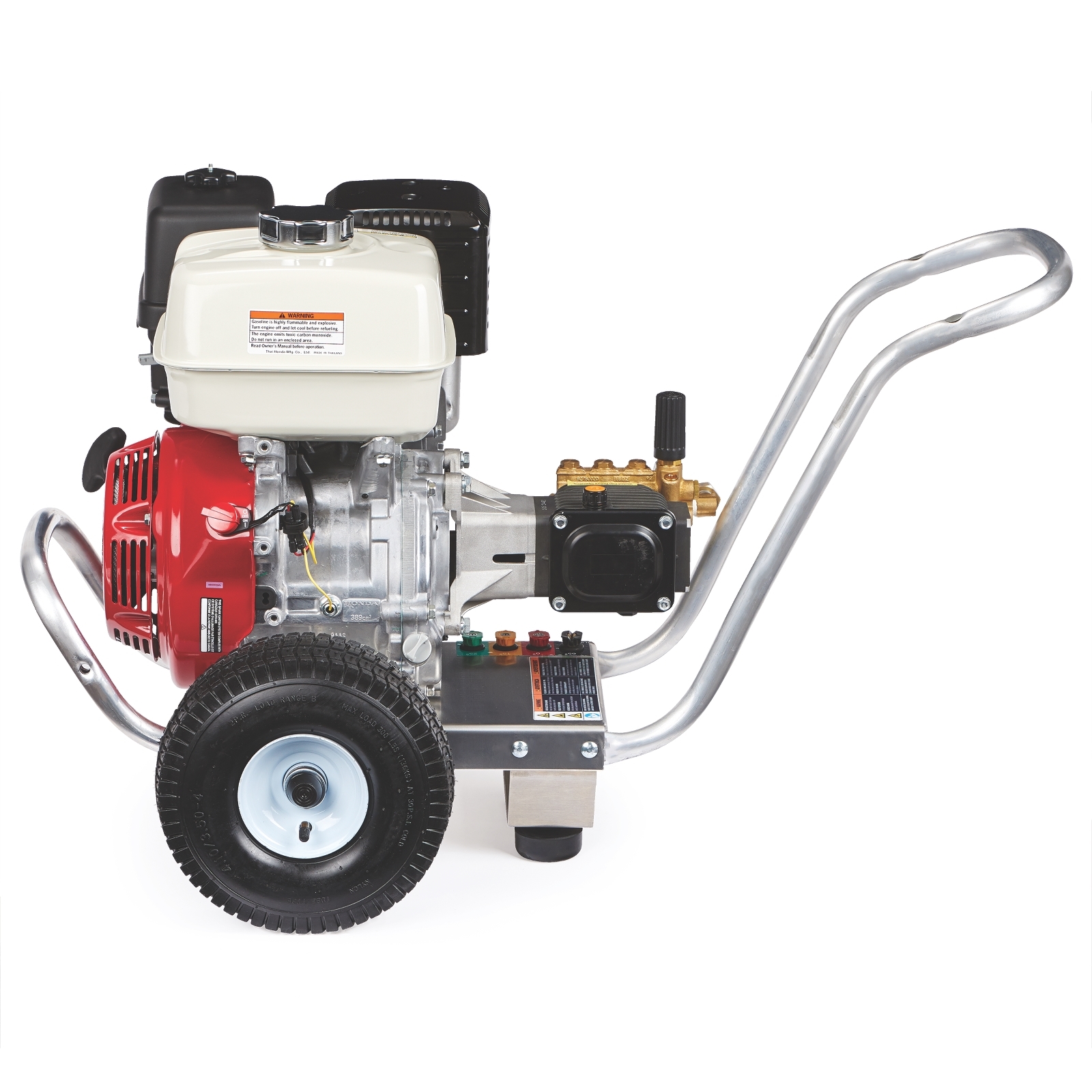

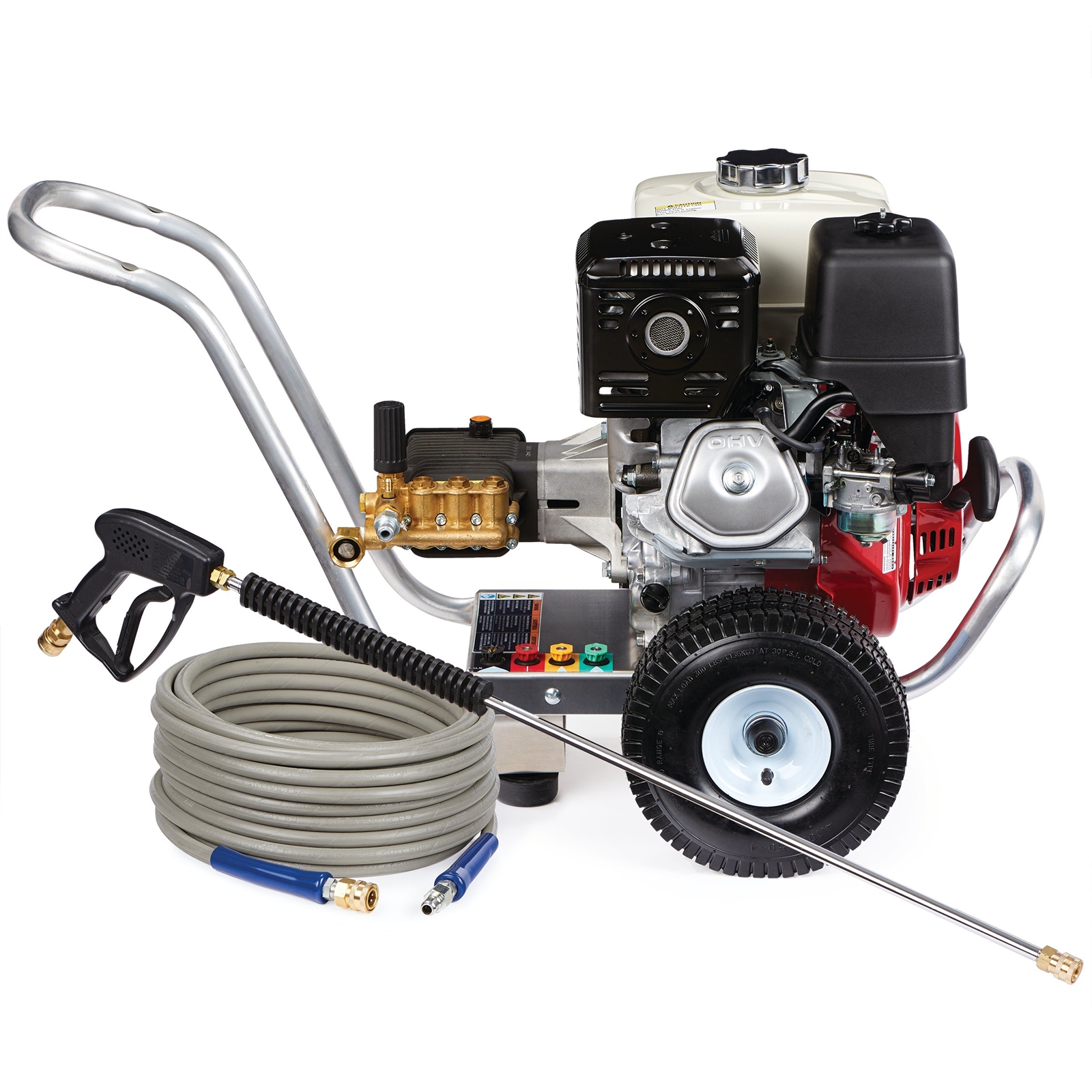

G-Force II 4240 HA-DD Pressure Washer
Part Number: 25N637
![product image](/content/dam/pim/graco/ced/paint/25N637_GForceII_4240_HA-DD_190708_Main.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N637_GForceII_4240_HA-DD_190708_Alt_1.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N637_GForceII_4240_HA-DD_190708_Alt_2.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N637_GForceII_4240_HA-DD_190708_Alt_3.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N637_GForceII_4240_HA-DD_190708_Alt_4.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
G-Force II 4240
G-Force II 4240 HA-DD Pressure Washer
Part Number: 25N637
Ideal for large residential or commercial contractors, the G-Force II 4240 HA-DD pressure washer delivers higher power and flow and is built tough to handle weekly use and deliver high flow and pressure in a compact, durable package.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Ideal for large residential or commercial contractors, the G-Force II 4240 HA-DD pressure washer delivers higher power and flow and is built tough to handle weekly use and deliver high flow and pressure in a compact, durable package.
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Thermal sensor prevents pump from overheating in bypass mode
- Reliable, AR Triplex Plunger Water Pump
- 100% Heavy-Gauge Aluminum Frames
- Up to 40% lighter than steel frames
- Corrosion resistant to water and chemicals
- Standard on all Graco models
- Lifetime Warranty
- EZ Start Pressure Relief For Easier Starting
- Standard Graco feature
- Allows water bypass pump to eliminate pressure build-up in the system
- No need to pull the gun trigger while starting the washer
- Direct Drive
- Compact design with fewer components and lighter weight
- Pump is connected directly to the drive shaft of the engine
- Pump rpm matches that of the engine (usually around 3500 rpm)
Specifications & Documents
Technical Specifications
Convert to MetricEngine Brand | Honda |
---|---|
Engine Model | GX390 |
Fuel Tank Capacity (qt) | 6.9 |
Hose Inlet Diameter (in) | 3/8 |
Hose Length (ft) | 50 |
Includes | Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip |
Maximum Flow Rate (GPM) | 4 |
Maximum Fluid Pressure (psi) | 4200 |
Maximum Operating Temperature (°F) | 145 |
Maximum Working Pressure (MPa) | 29 |
Maximum Working Pressure (psi) | 4200 |
Model | G-Force II |
Motor Drive Type | Direct Drive |
Pump Brand | AR |
Pump Type | Triplex Plunger |
Recommended Weekly Usage (Hours) | 20-30 |
Series | 4240 |
Type | Gas Pressure Washer |
Weight (lb) | 102 |
Engine Brand | Honda |
Engine Model | GX390 |
Fuel Tank Capacity (L) | 6.5 |
Hose Inlet Diameter (cm) | 0.9525 |
Hose Inlet Diameter (in) | 3/8 |
Hose Inlet Diameter (mm) | 9.525 |
Hose Length (cm) | 1524 |
Hose Length (m) | 15.2 |
Hose Length (mm) | 15240 |
Includes | Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip |
Maximum Flow Rate (L/min) | 15.14 |
Maximum Fluid Pressure (bar) | 289.6 |
Maximum Fluid Pressure (kPa) | 28960 |
Maximum Fluid Pressure (psi) | 4200 |
Maximum Operating Temperature (°C) | 63 |
Maximum Working Pressure (MPa) | 29 |
Maximum Working Pressure (bar) | 290 |
Maximum Working Pressure (kPa) | 29000 |
Maximum Working Pressure (psi) | 4200 |
Model | G-Force II |
Motor Drive Type | Direct Drive |
Pump Brand | AR |
Pump Type | Triplex Plunger |
Recommended Weekly Usage (Hours) | 20-30 |
Series | 4240 |
Type | Gas Pressure Washer |
Weight (kg) | 46 |
