G-Force II 4240

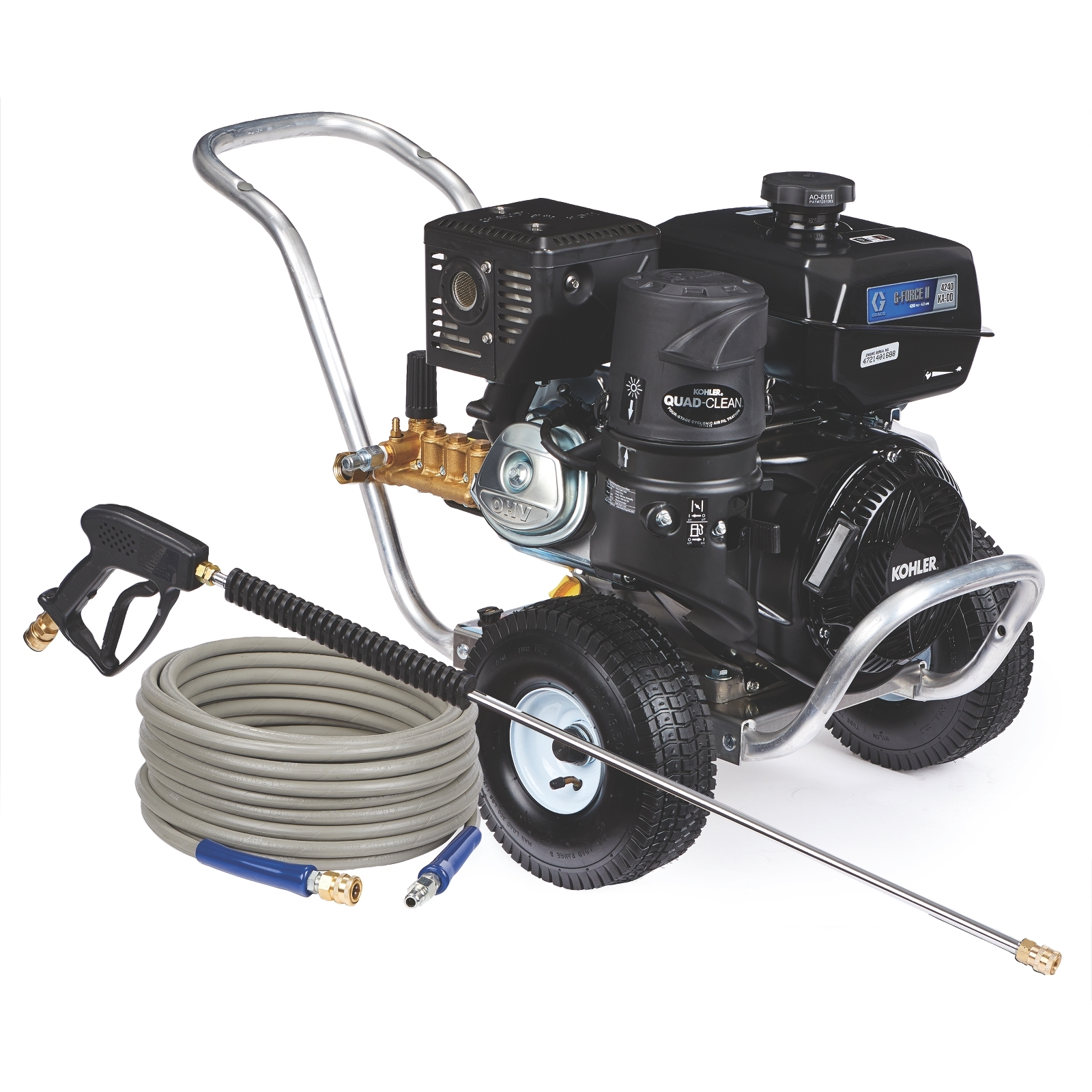

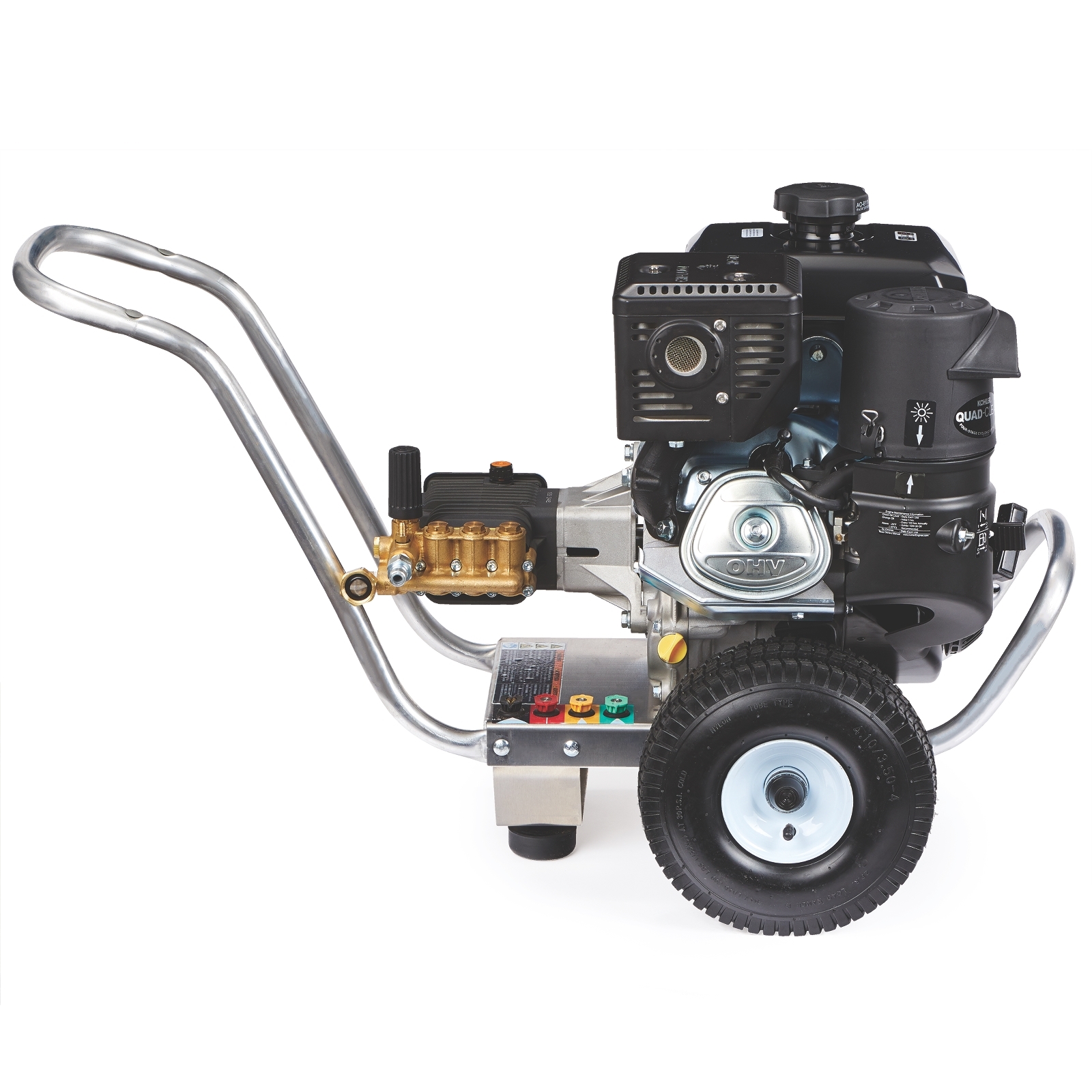

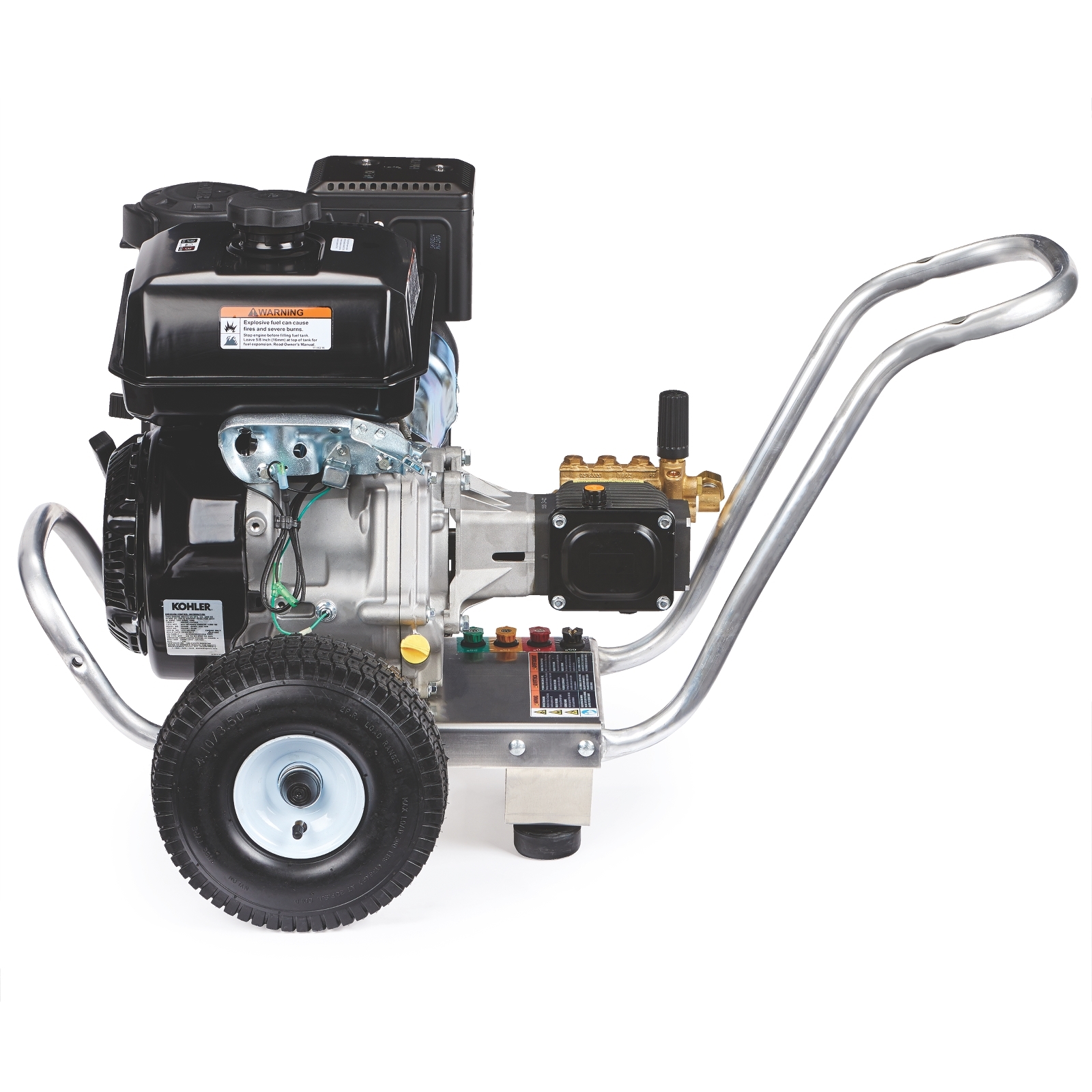

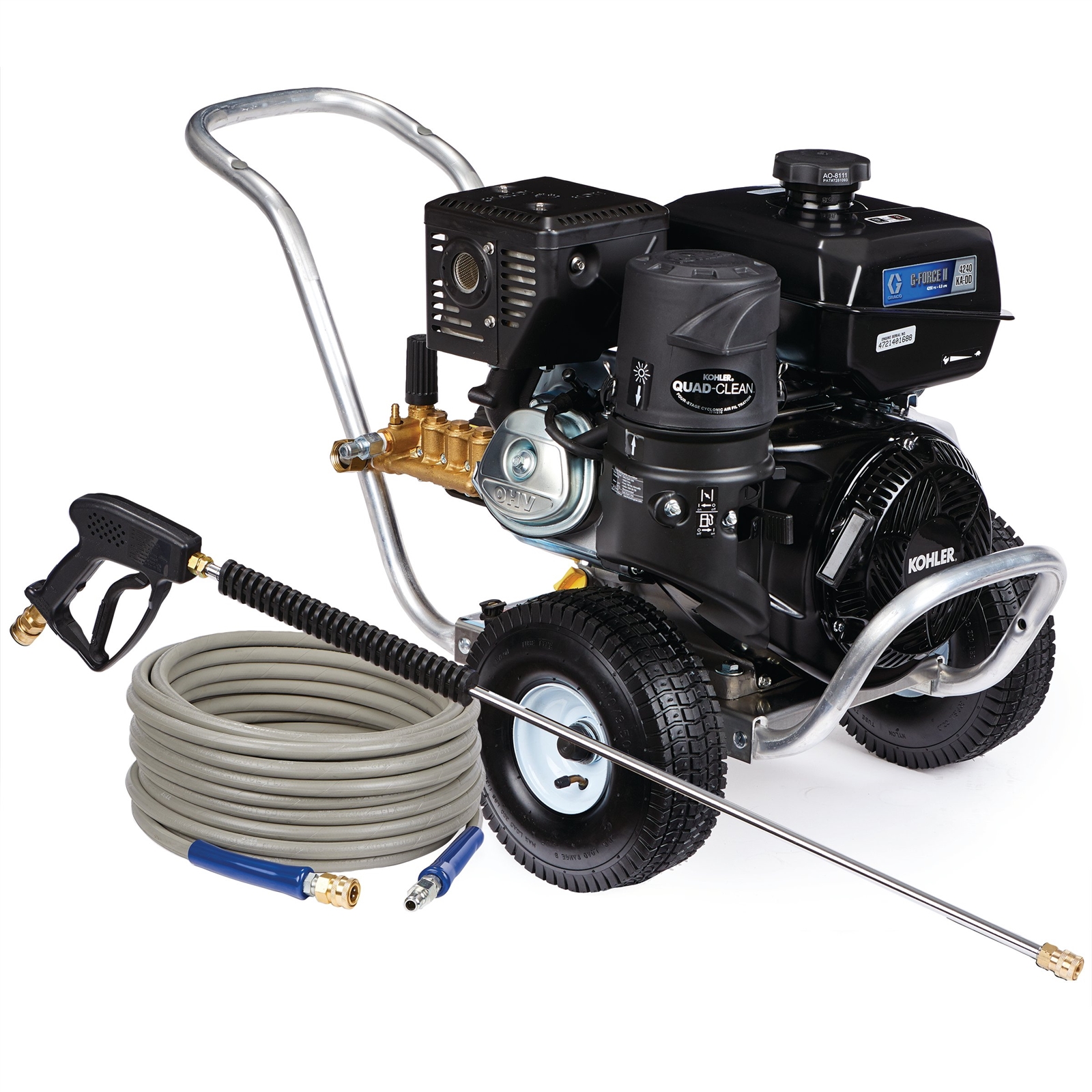

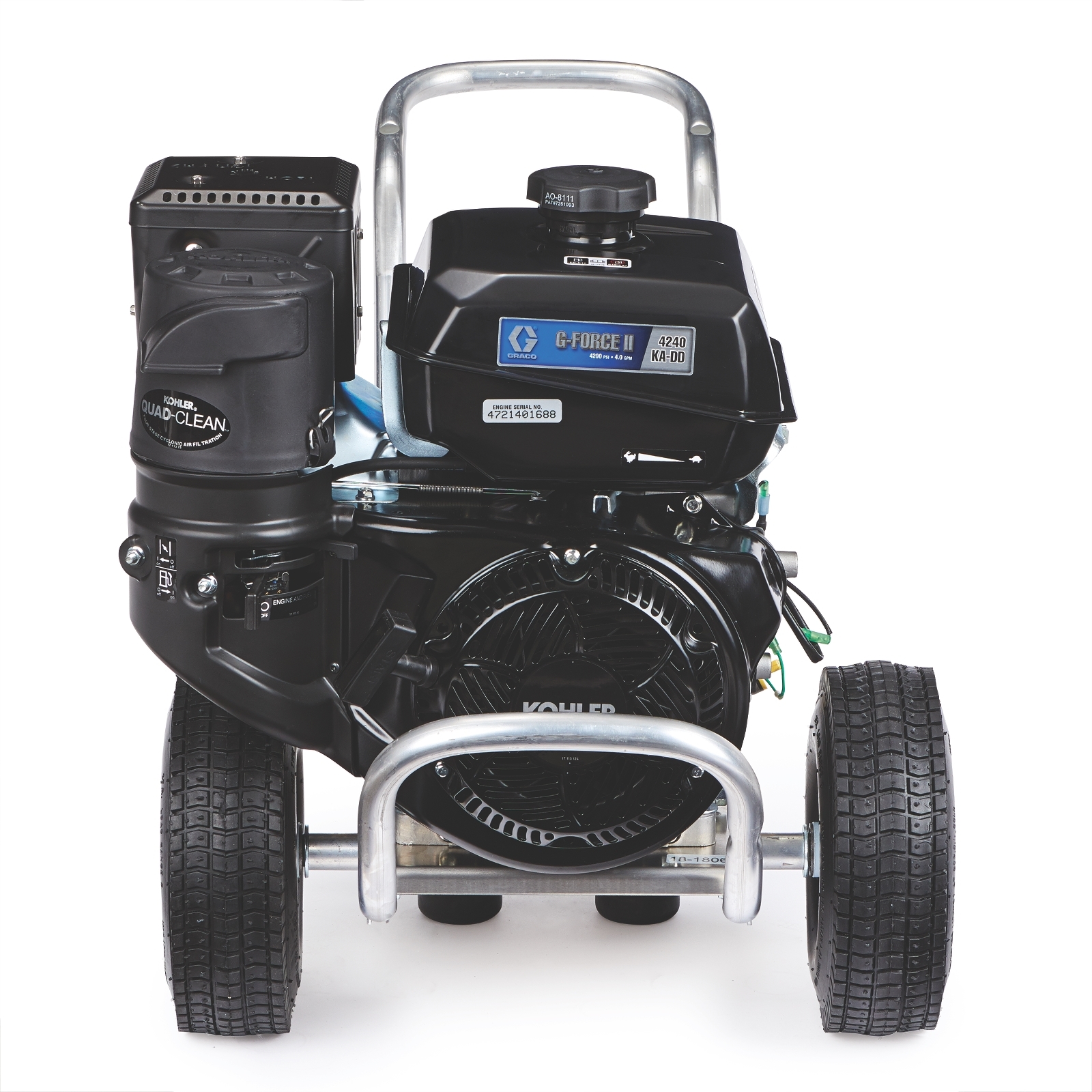

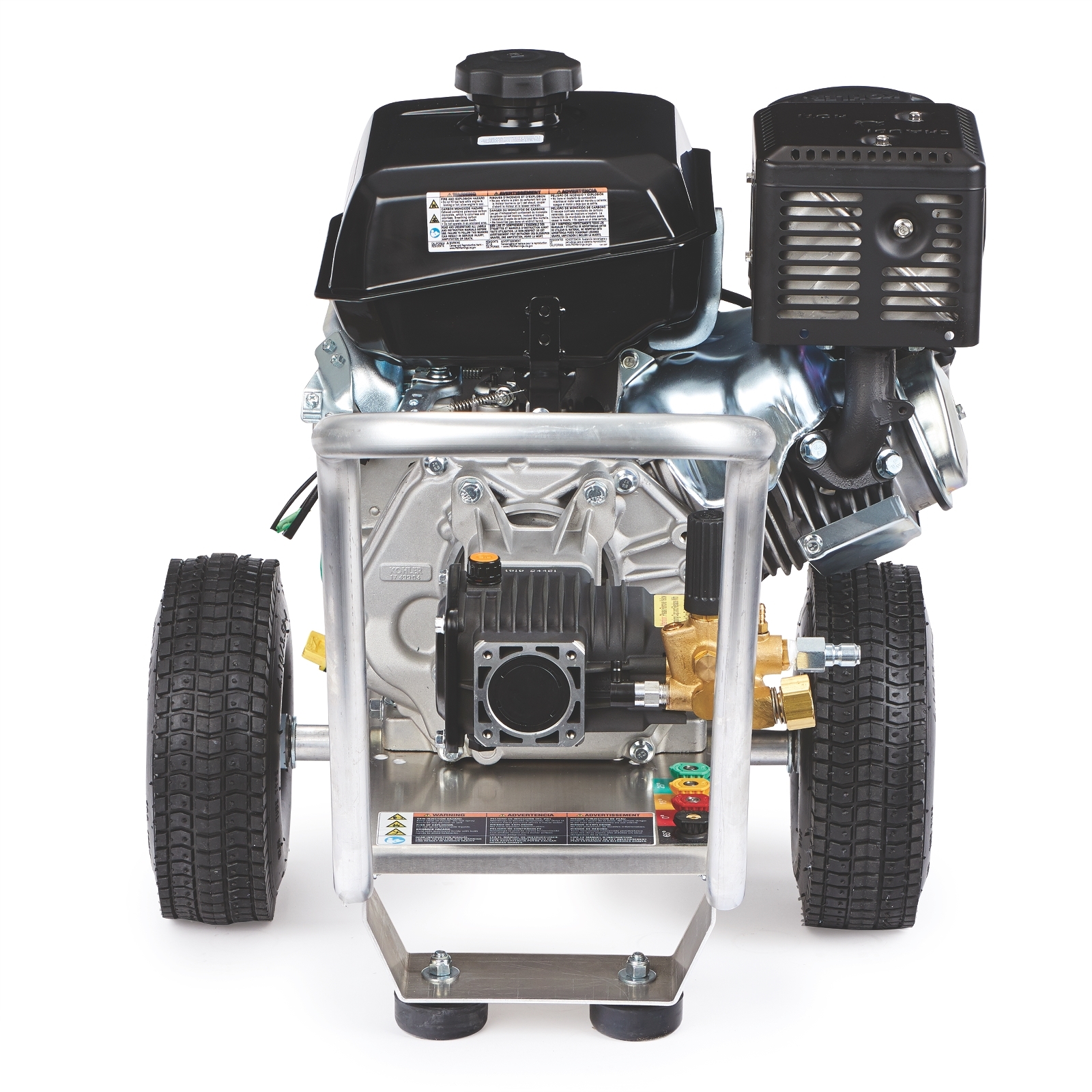

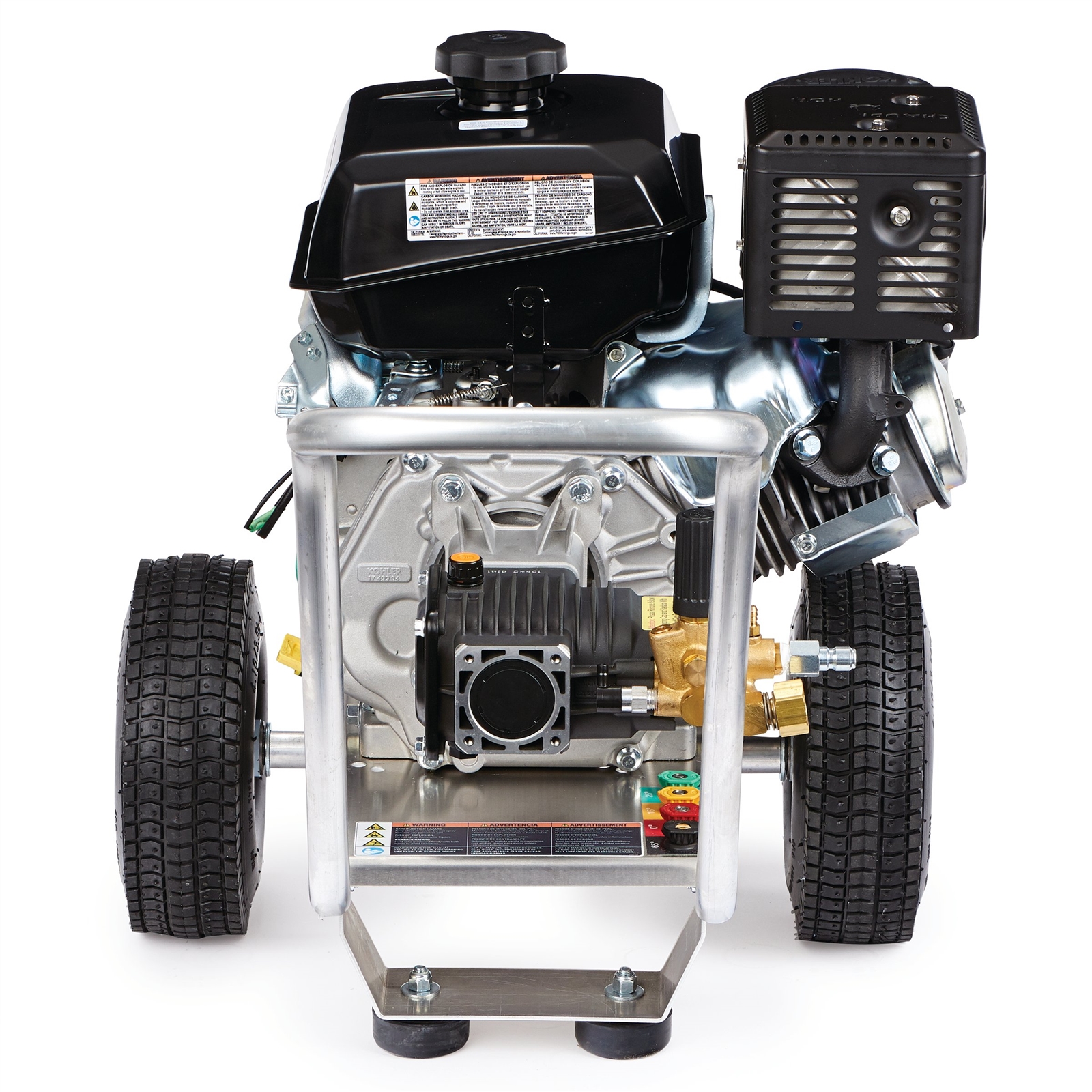

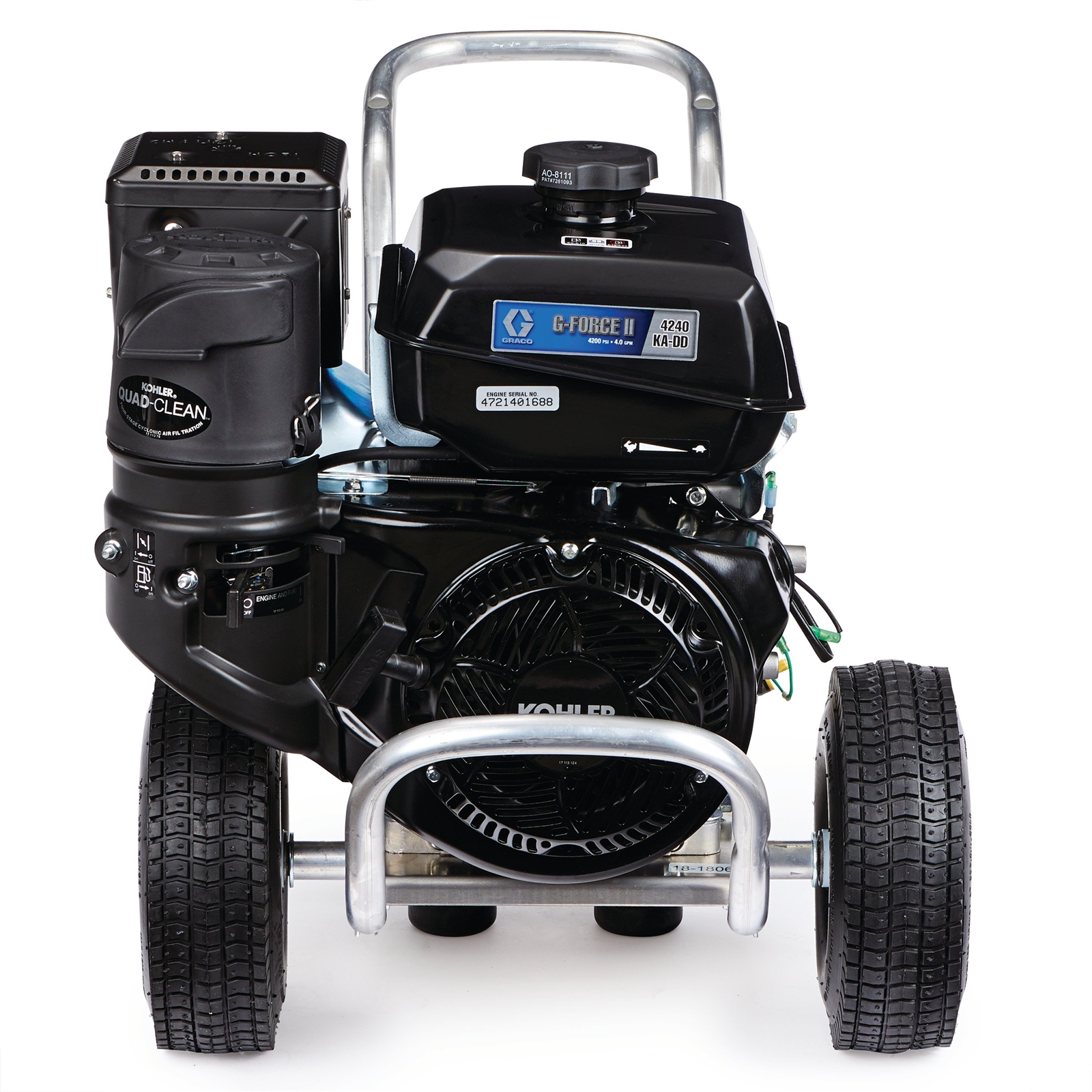

G-Force II 4240 KA-DD Pressure Washer
Part Number: 25N636
![product image](/content/dam/pim/graco/ced/paint/25N636_GForceII_4240_KA-DD_190708_Main.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N636_GForceII_4240_KA-DD_190708_Alt_1.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N636_GForceII_4240_KA-DD_190708_Alt_2.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N636_GForceII_4240_KA-DD_190708_Alt_3.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/paint/25N636_GForceII_4240_KA-DD_190708_Alt_4.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
G-Force II 4240

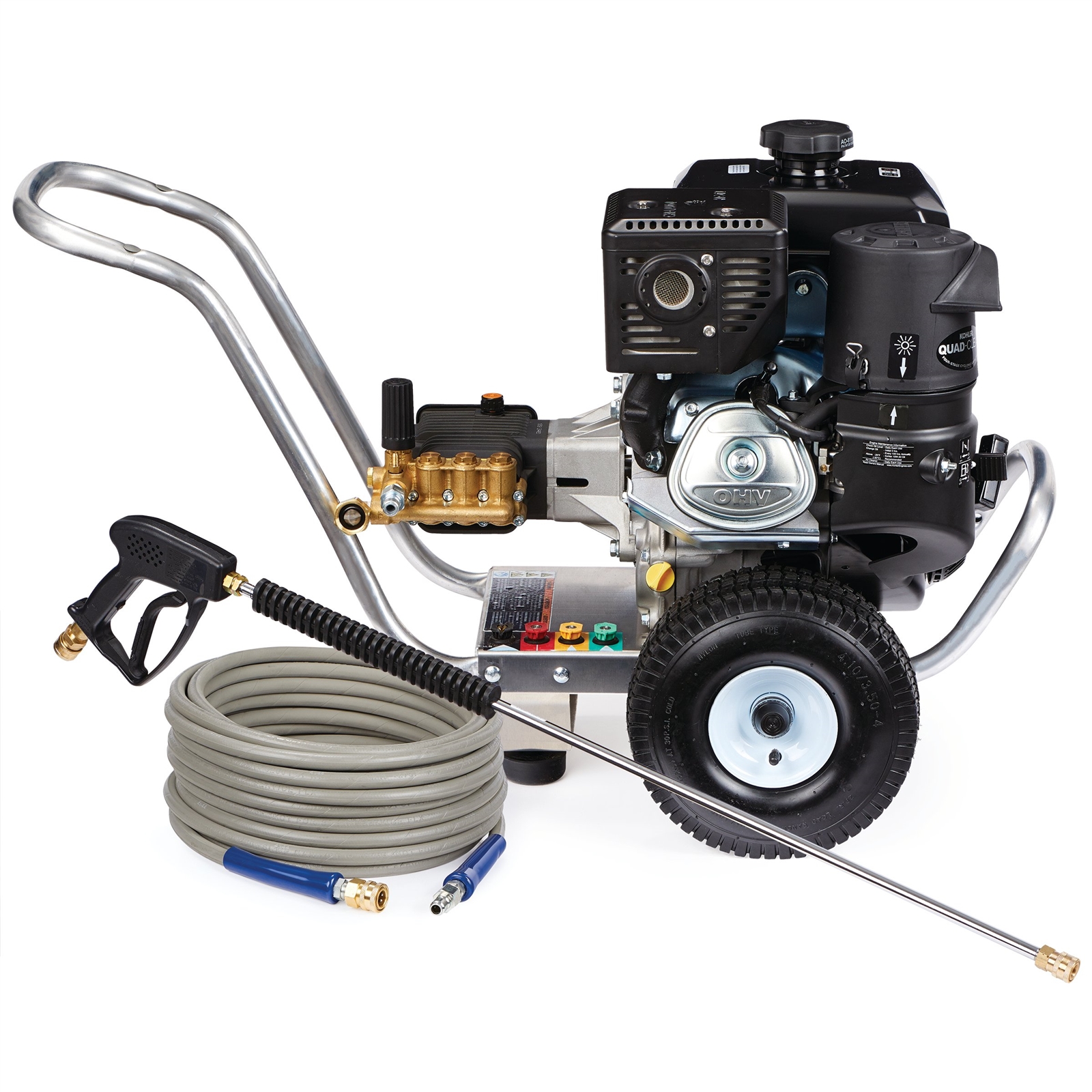

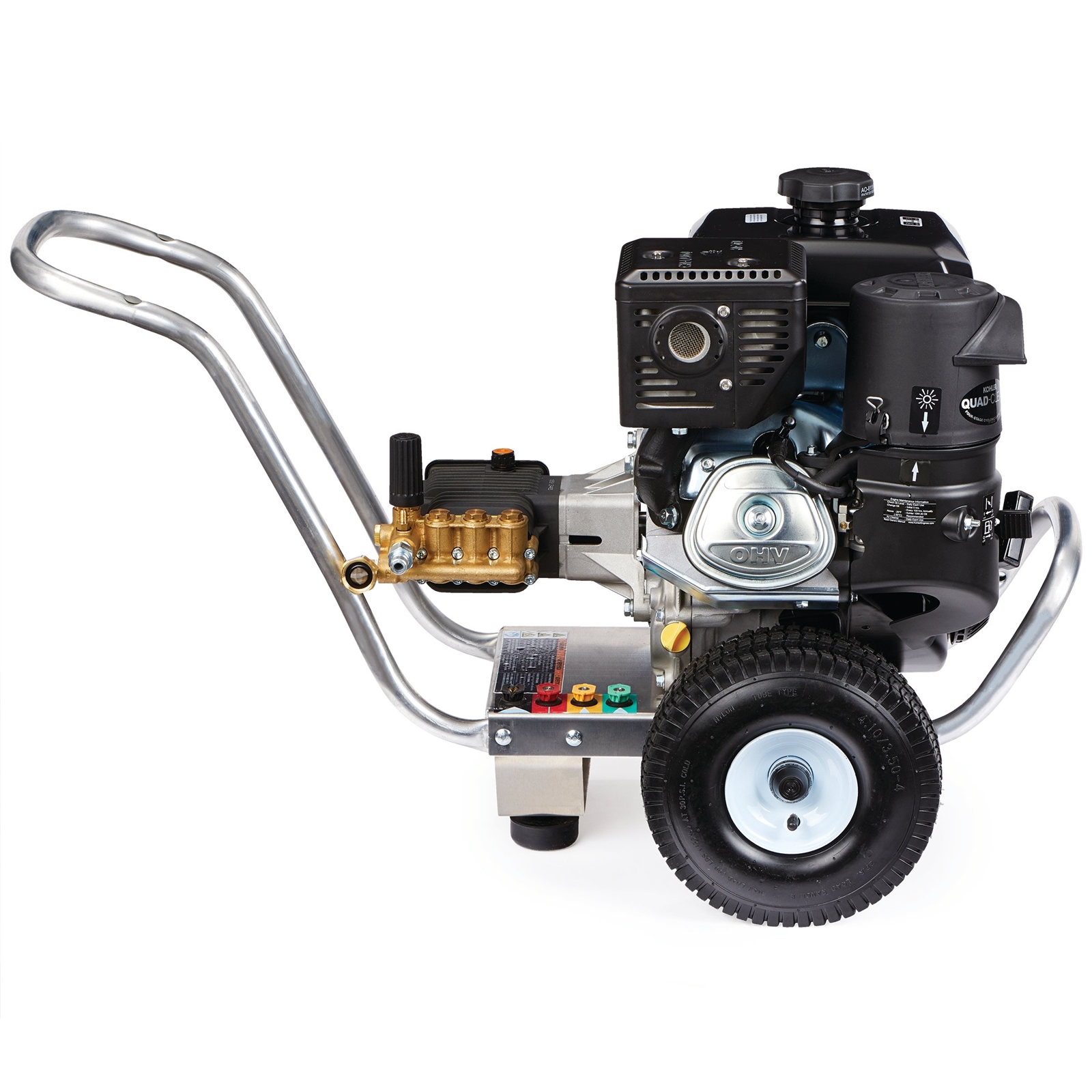

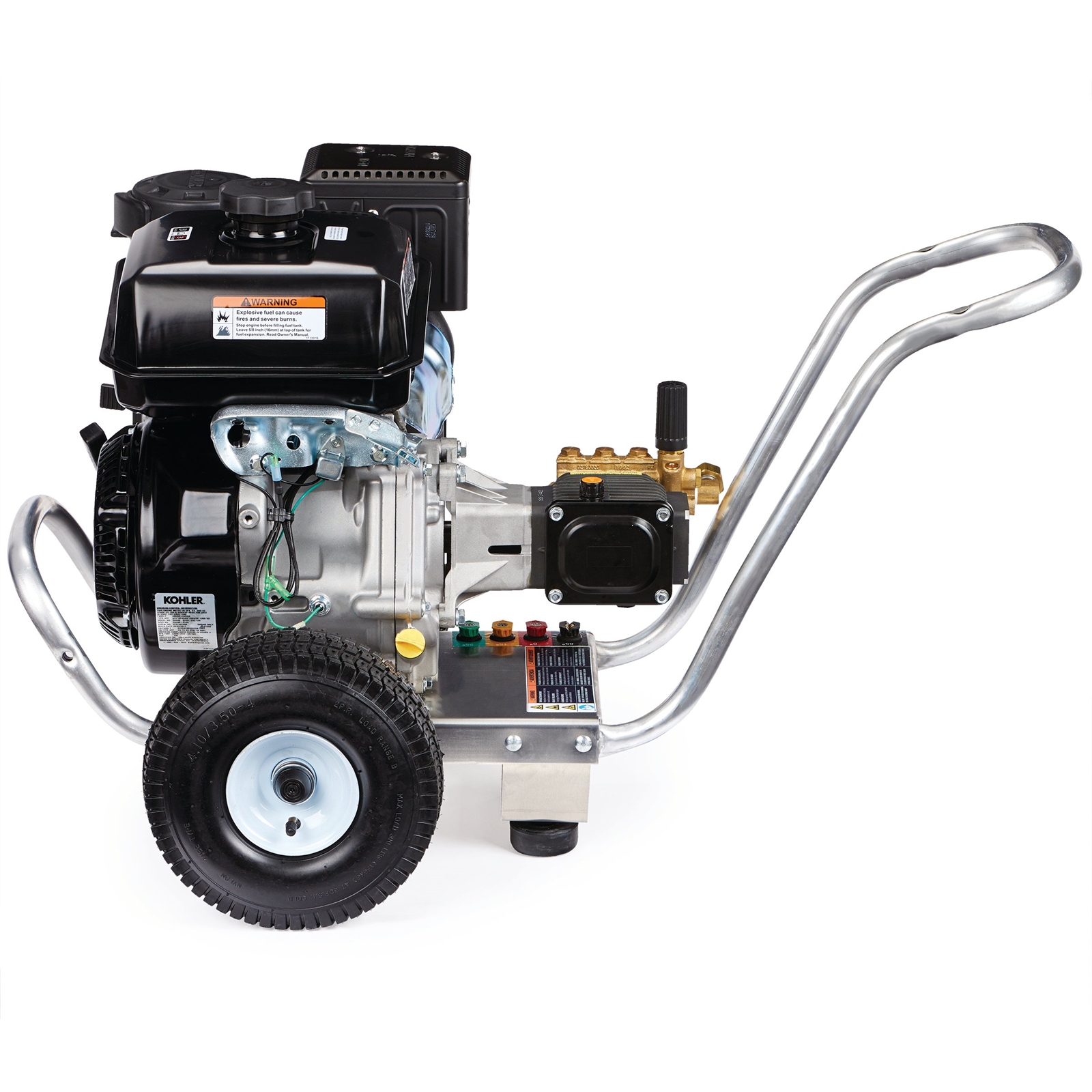

G-Force II 4240 KA-DD Pressure Washer
Part Number: 25N636
Ideal for remodelers & property maintenance cleaning needs, the G-Force II 4240 KA-DD pressure washer is the best choice for medium duty applications. It's light, compact, and is the perfect choice when you need consistent reliability for the occasional cleaning job.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Ideal for remodelers & property maintenance cleaning needs, the G-Force II 4240 KA-DD pressure washer is the best choice for medium duty applications. It's light, compact, and is the perfect choice when you need consistent reliability for the occasional cleaning job.
- Kohler® Engine
- Reliable, powerful & easy-to-start
- Reliable, AR Triplex Plunger Water Pump
- 100% Heavy-Gauge Aluminum Frame
- Up to 40% lighter than steel frames
- Corrosion resistant to water and chemicals
- Standard on all Graco models
- Lifetime Warranty
- EZ Start Pressure Relief For Easier Starting
- Standard Graco feature
- Allows water bypass pump to eliminate pressure build-up in the system
- No need to pull the gun trigger while starting the washer
- Direct Drive
- Compact design with fewer components and lighter weight
- Pump is connected directly to the drive shaft of the engine
- Pump rpm matches that of the engine (usually around 3500 rpm)
Specifications & Documents
Technical Specifications
Convert to MetricEngine Brand | Kohler |
---|---|
Engine Model | CH440 |
Fuel Tank Capacity (qt) | 7.7 |
Hose Inlet Diameter (in) | 3/8 |
Hose Length (ft) | 50 |
Includes | Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip |
Maximum Flow Rate (GPM) | 4 |
Maximum Fluid Pressure (psi) | 4200 |
Maximum Operating Temperature (°F) | 145 |
Maximum Working Pressure (MPa) | 29 |
Maximum Working Pressure (psi) | 4200 |
Model | G-Force II |
Motor Drive Type | Direct Drive |
Pump Brand | AR |
Pump Type | Triplex Plunger |
Recommended Weekly Usage (Hours) | 10-20 |
Series | 4240 |
Type | Gas Pressure Washer |
Weight (lb) | 104 |
Engine Brand | Kohler |
Engine Model | CH440 |
Fuel Tank Capacity (L) | 7.3 |
Hose Inlet Diameter (cm) | 0.9525 |
Hose Inlet Diameter (in) | 3/8 |
Hose Inlet Diameter (mm) | 9.525 |
Hose Length (cm) | 1524 |
Hose Length (m) | 15.2 |
Hose Length (mm) | 15240 |
Includes | Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip |
Maximum Flow Rate (L/min) | 15.14 |
Maximum Fluid Pressure (bar) | 289.6 |
Maximum Fluid Pressure (kPa) | 28960 |
Maximum Fluid Pressure (psi) | 4200 |
Maximum Operating Temperature (°C) | 63 |
Maximum Working Pressure (MPa) | 29 |
Maximum Working Pressure (bar) | 290 |
Maximum Working Pressure (kPa) | 29000 |
Maximum Working Pressure (psi) | 4200 |
Model | G-Force II |
Motor Drive Type | Direct Drive |
Pump Brand | AR |
Pump Type | Triplex Plunger |
Recommended Weekly Usage (Hours) | 10-20 |
Series | 4240 |
Type | Gas Pressure Washer |
Weight (kg) | 47 |
