G-Force II 4040

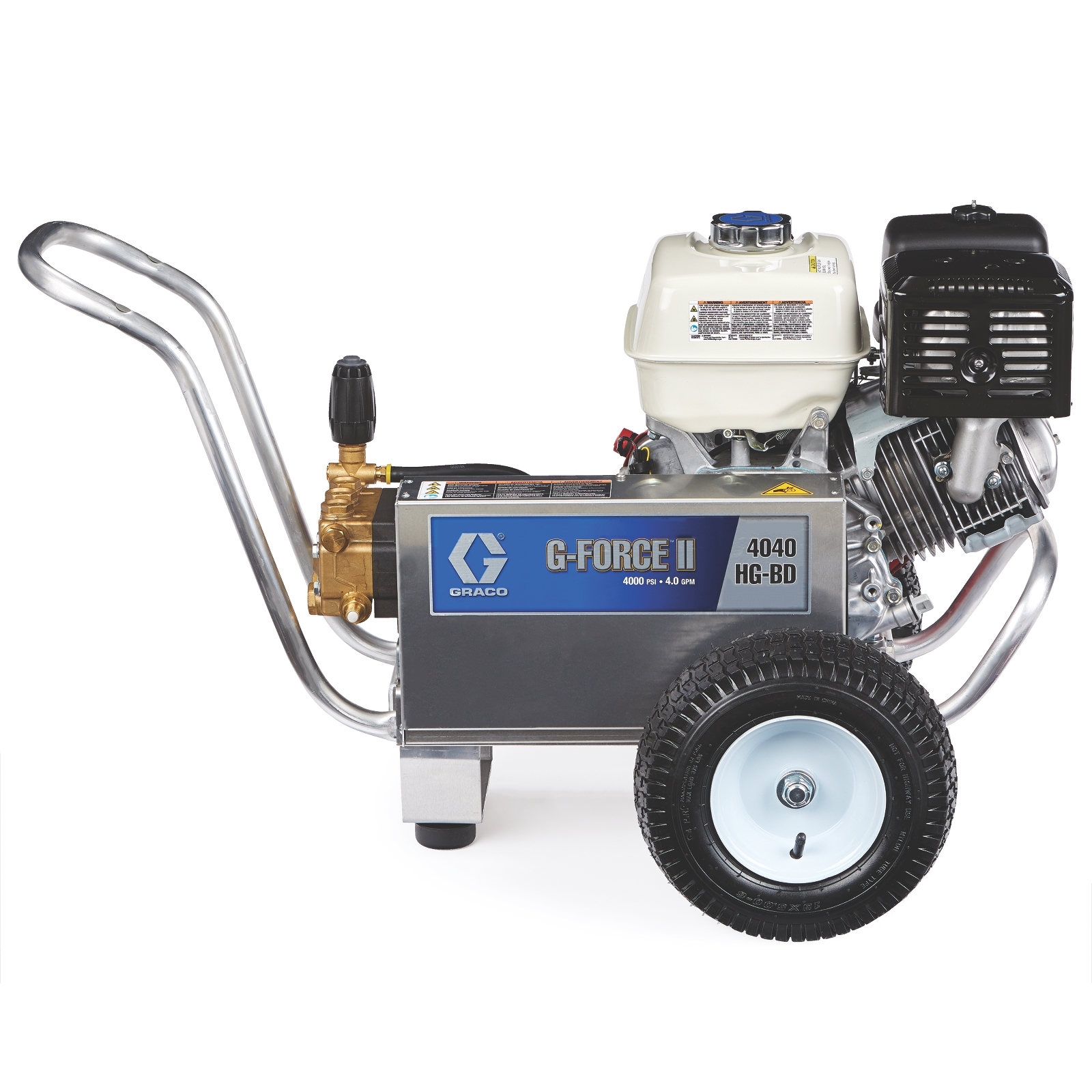

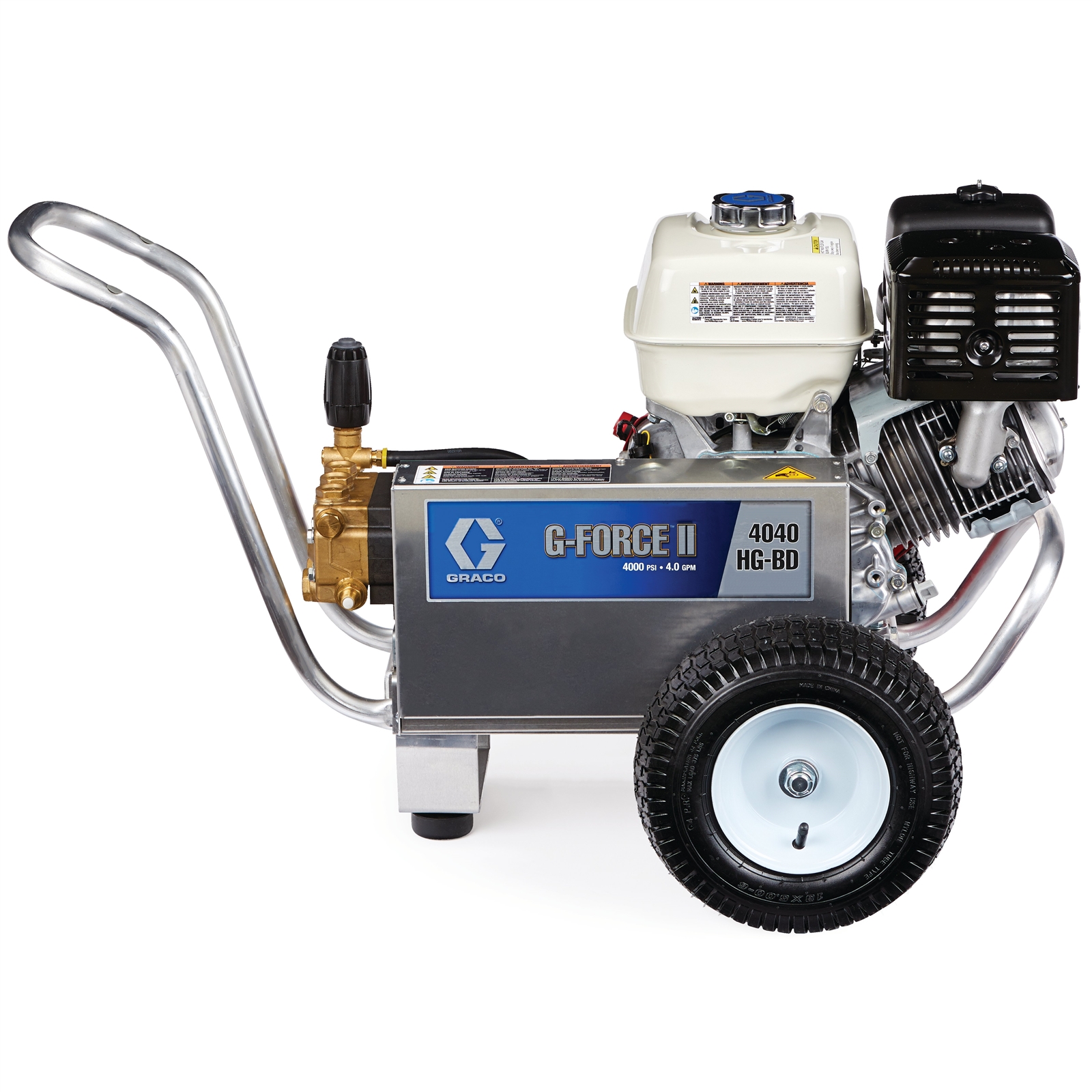

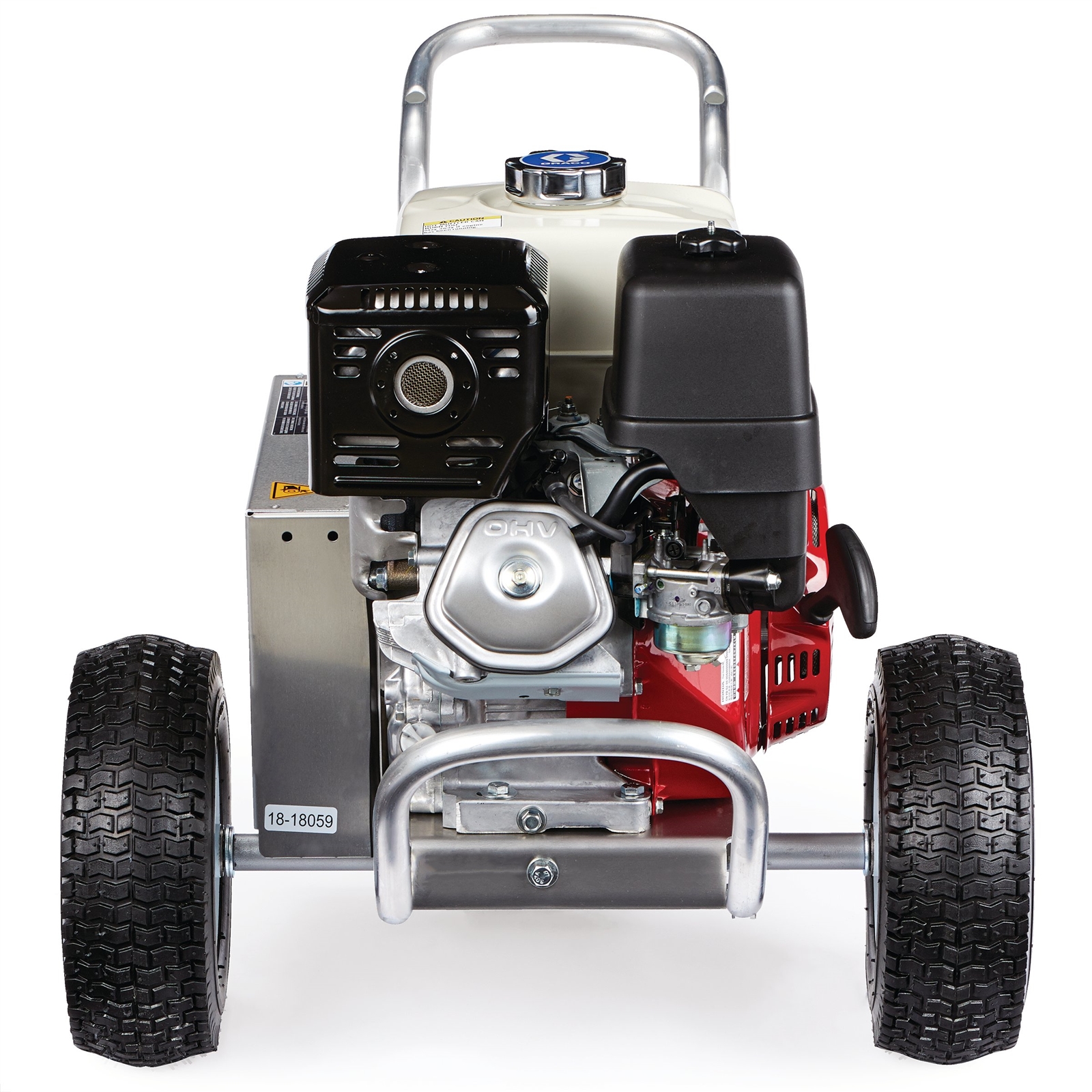

G-Force II 4040 HG-BD Pressure Washer
Part Number: 25N679
G-Force II 4040
G-Force II 4040 HG-BD Pressure Washer
Part Number: 25N679
Ideal for large commercial or industrial contractors, the G-Force II 4040 HG-BD pressure washer is one of Graco’s top-of-the-line units. With a Honda engine and belt-driven performance, this pressure washer can easily handle the most demanding all-day cleaning and surface preparation jobs.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Ideal for large commercial or industrial contractors, the G-Force II 4040 HG-BD pressure washer is one of Graco’s top-of-the-line units. With a Honda engine and belt-driven performance, this pressure washer can easily handle the most demanding all-day cleaning and surface preparation jobs.

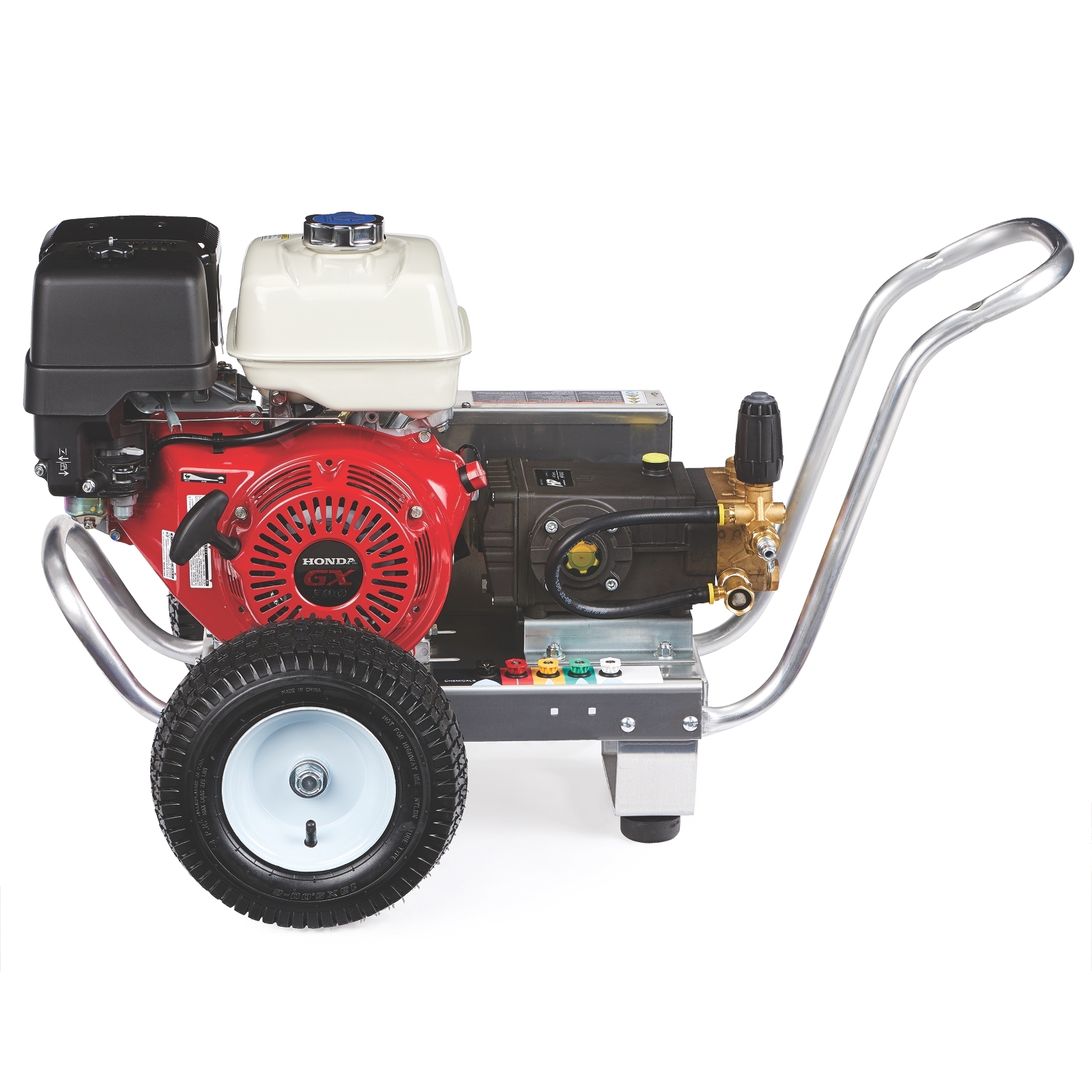

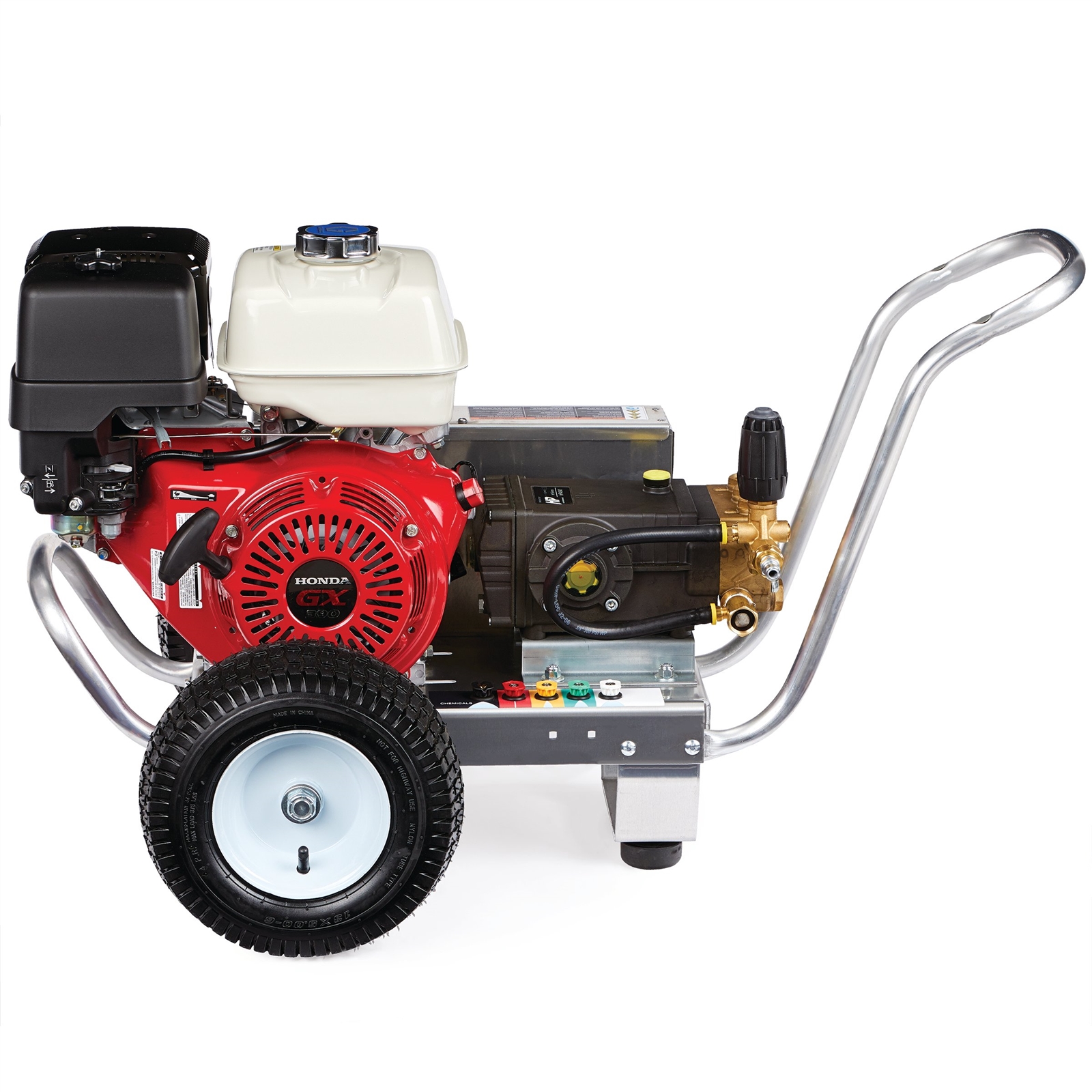

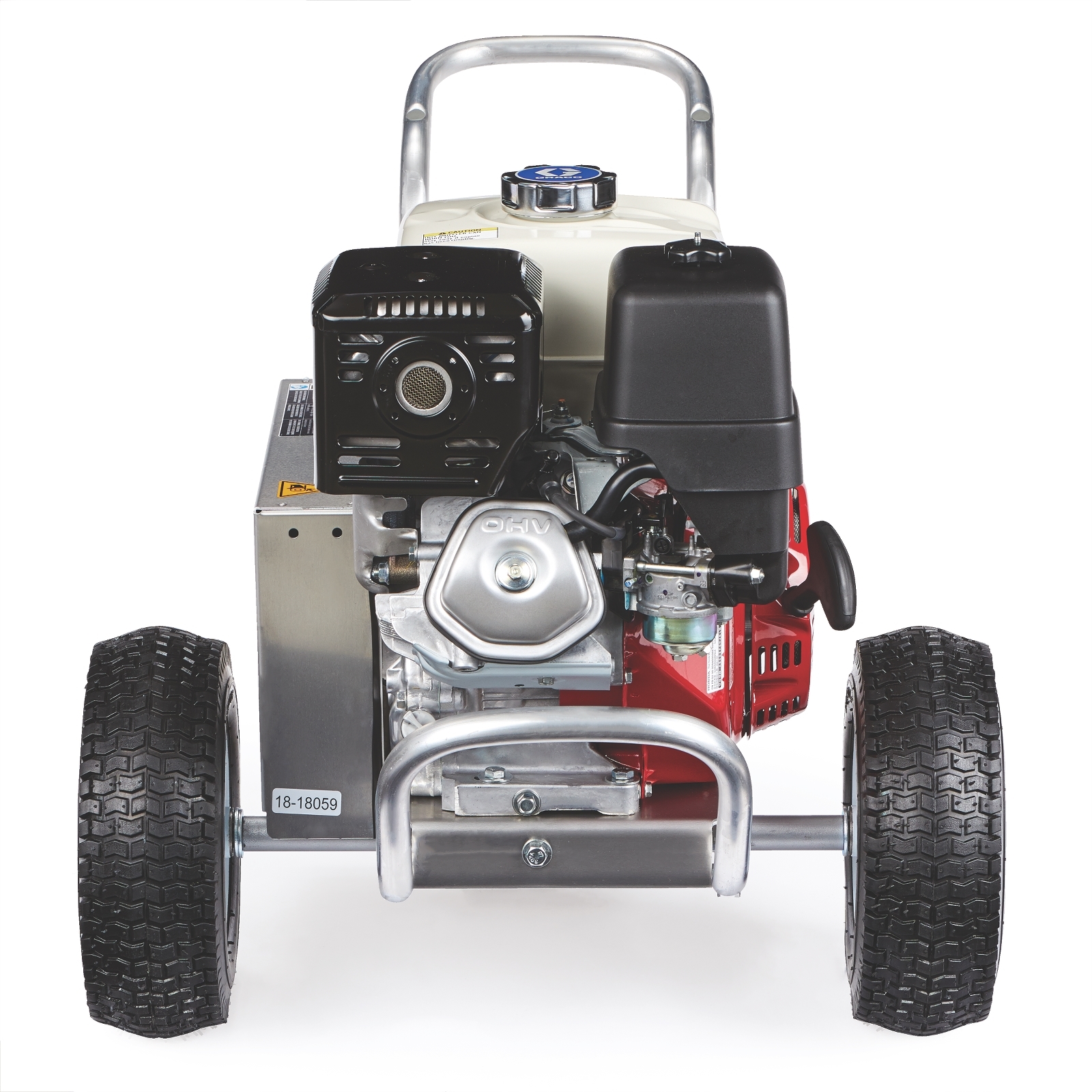

- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Thermal sensor prevents pump from overheating in bypass mode

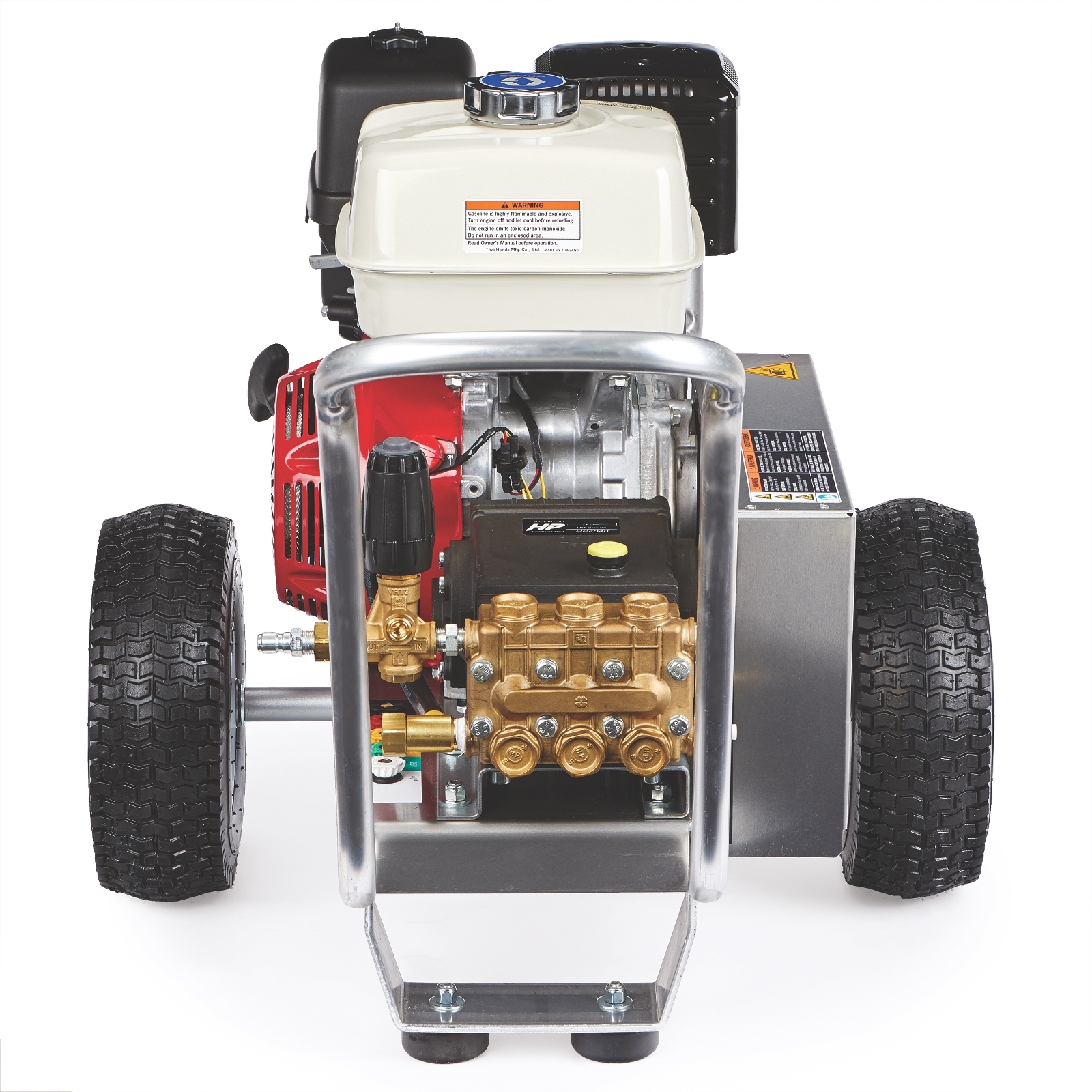

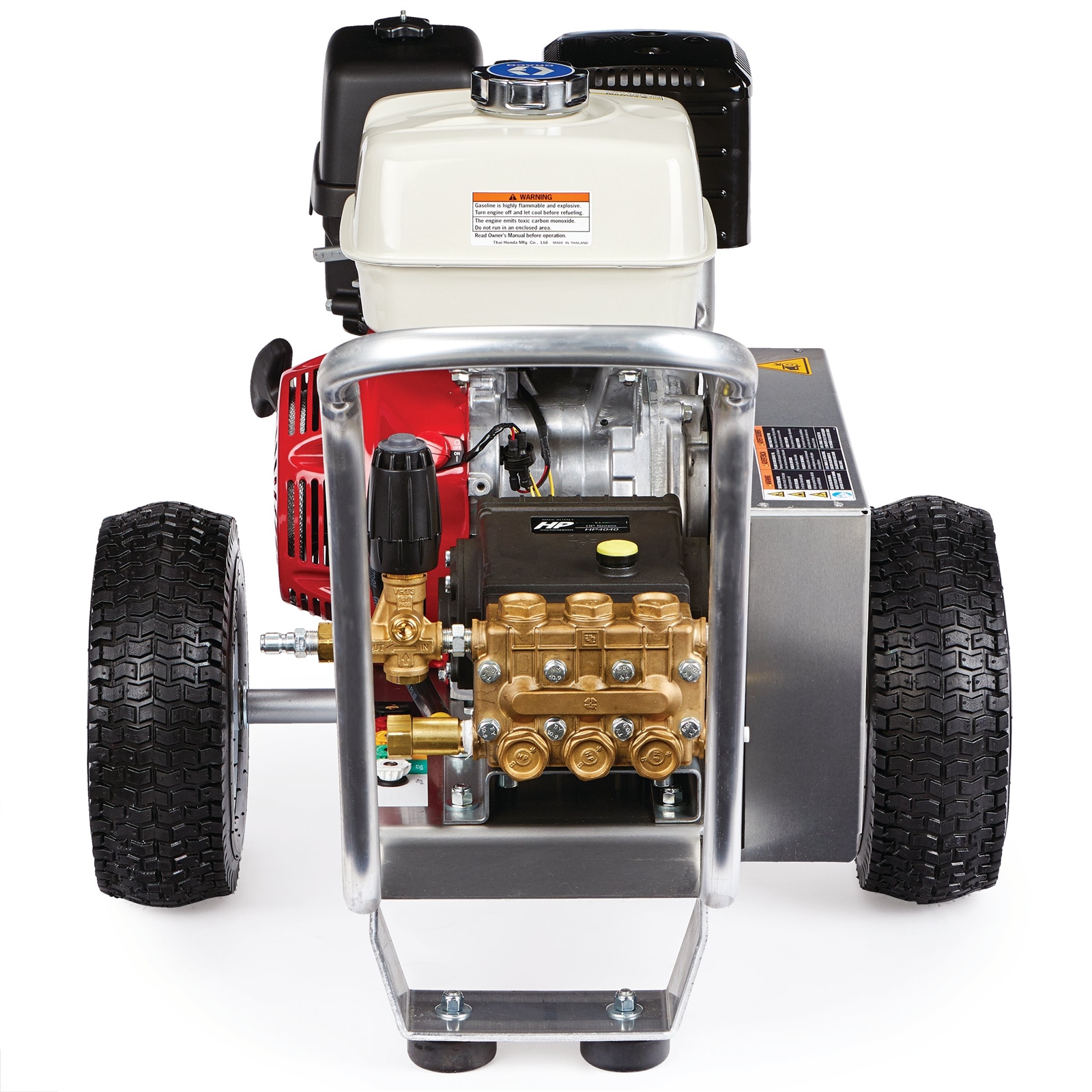

- Reliable, GP Triax Plunger Water Pump
- External Pressure Unloader
- Trouble-free, adjustable pressure
- Ability to match application requirements
- Keeps water cooler and prolongs pump life
- EZ Start Pressure Relief For Easier Starting
- Allows water bypass pump to eliminate pressure build-up in the system
- No need to pull the gun trigger while starting the washer
- Standard Graco feature
- 100% Heavy-Gauge Aluminum Frame
- Up to 40% lighter than steel frames
- Corrosion resistant to water and chemicals
- Standard on all Graco models
- Lifetime Warranty
- Belt Drive
- Lower RPM (typically 900-1700 rpm) resulting in cooler operating temperature and longer pump life
- Pump is mounted away from the engine and has a crankcase with more oil capacity
- Pump vibrates less and suffers less pump fatigue
Specifications & Documents
Technical Specifications
Convert to Metric| Engine Brand | Honda |
|---|---|
| Engine Model | GX390 |
| Fuel Tank Capacity (qt) | 6.9 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Length (ft) | 50 |

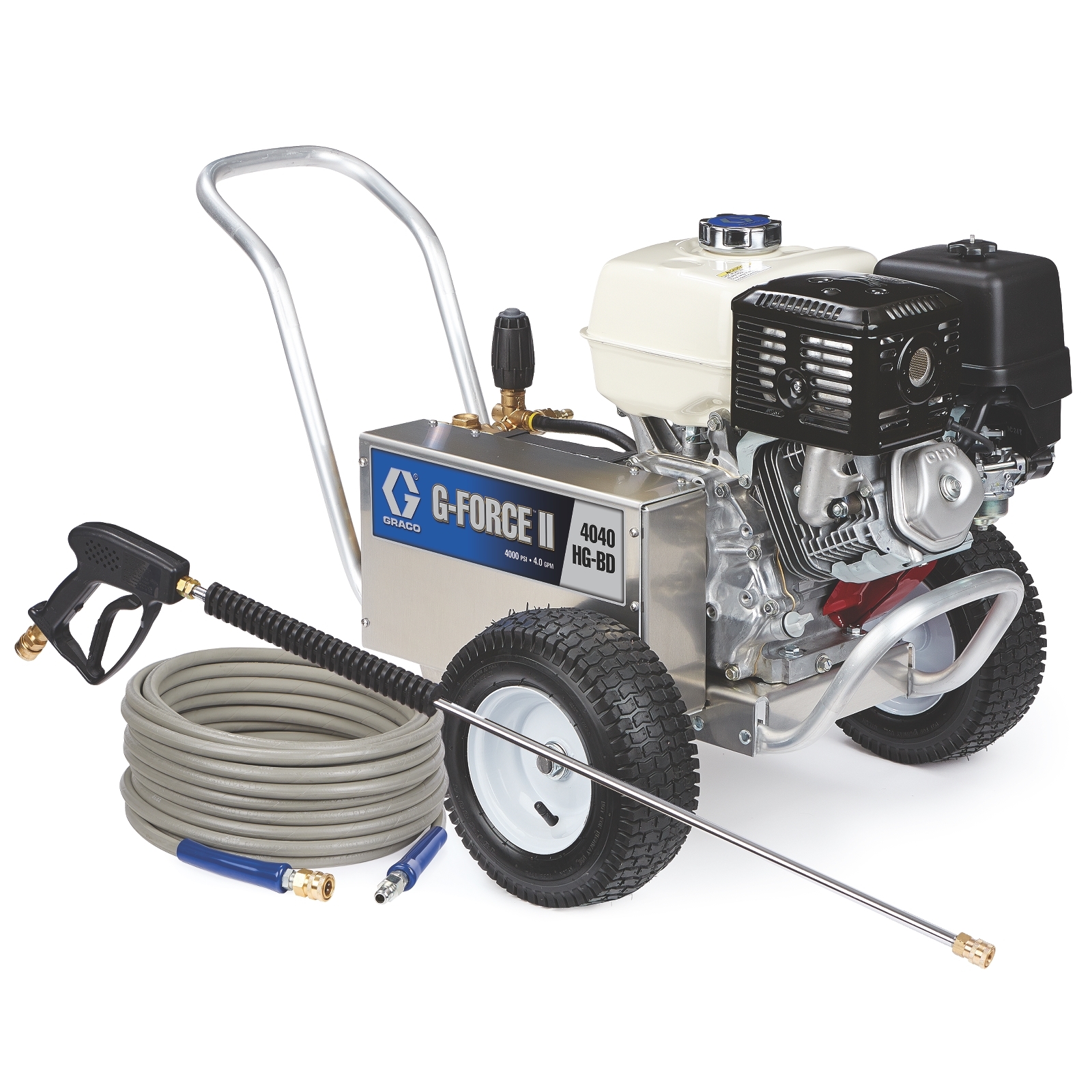

| Includes | Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, 40° White Pressure Washer Tip, Black Chemical Pressure Washer Tip |
| Maximum Flow Rate (GPM) | 4 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Operating Temperature (°F) | 145 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Model | G-Force II |
| Motor Drive Type | Belt Drive |
| Pump Brand | GP |
| Pump Type | Triplex Plunger |
| Recommended Weekly Usage (Hours) | 30+ |
| Series | 4040 |
| Type | Gas Pressure Washer |
| Weight (lb) | 132 |
| Engine Brand | Honda |
| Engine Model | GX390 |
| Fuel Tank Capacity (L) | 6.5 |
| Hose Inlet Diameter (cm) | 0.9525 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Inlet Diameter (mm) | 9.525 |
| Hose Length (cm) | 1524 |
| Hose Length (m) | 15.2 |
| Hose Length (mm) | 15240 |
| Includes | Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, 40° White Pressure Washer Tip, Black Chemical Pressure Washer Tip |
| Maximum Flow Rate (L/min) | 15.14 |
| Maximum Fluid Pressure (bar) | 275.8 |
| Maximum Fluid Pressure (kPa) | 27580 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Operating Temperature (°C) | 63 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (bar) | 276 |
| Maximum Working Pressure (kPa) | 27600 |
| Maximum Working Pressure (psi) | 4000 |
| Model | G-Force II |
| Motor Drive Type | Belt Drive |
| Pump Brand | GP |
| Pump Type | Triplex Plunger |
| Recommended Weekly Usage (Hours) | 30+ |
| Series | 4040 |
| Type | Gas Pressure Washer |
| Weight (kg) | 60 |
Product Manuals
Warranty
Sales Literature
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 244785 | GB KIT, ACCESSORY, GUN | 1 | ea |
| 244783 | Non-Marking Hose with Quick Disconnects, 3/8 in x 50 ft | 1 | ea |
| 127529 | Inline Chemical Injector with QDs Kit | 1 | ea |
| 805543 | Washer Spray Tip, 0004 | 1 | ea |
| 805544 | Washer Spray Tip, 1504 | 1 | ea |
| 805545 | Washer Spray Tip, 2504 | 1 | ea |
| 805546 | Washer Spray Tip, 4004 | 1 | ea |
| 805634 | Chemical Injector Washer Spray Tip | 1 | ea |
