RAC X Low Pressure Tips
RAC X Low Pressure SwitchTips
Now Available for Every Application

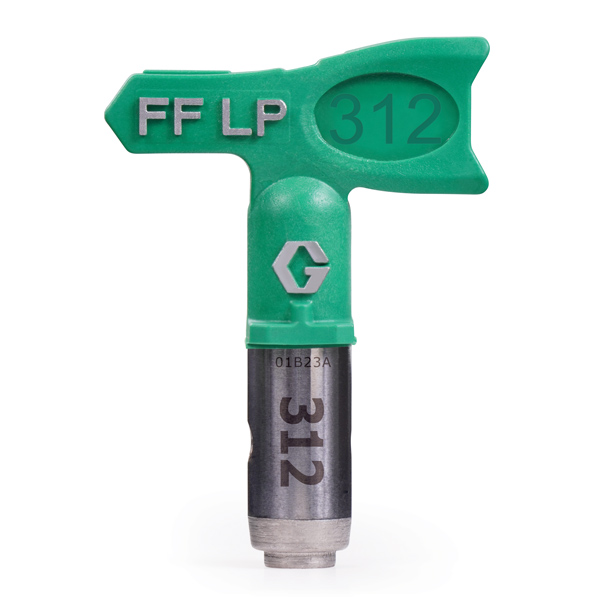

RAC X Fine Finish Low Pressure (FF LP) SwitchTip
Delivers the finest finish — now available in 106, 206, and 408 sizes for even more control

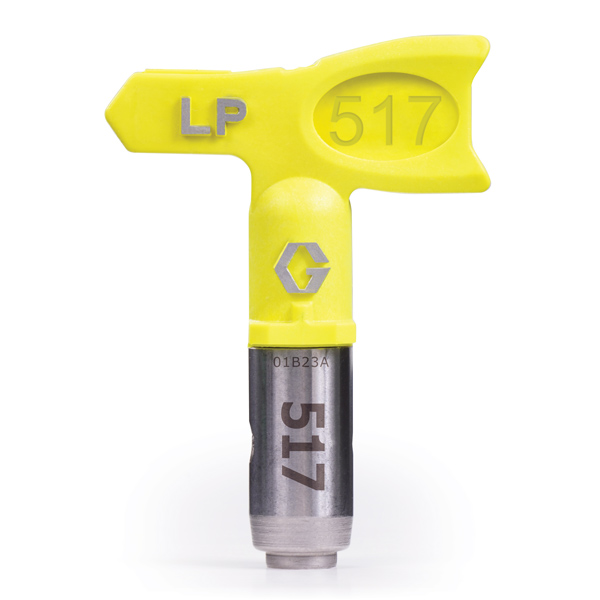

RAC X Low Pressure (LP) SwitchTip
Spray every surface at low pressure with 30 available sizes to maximize profit on every job

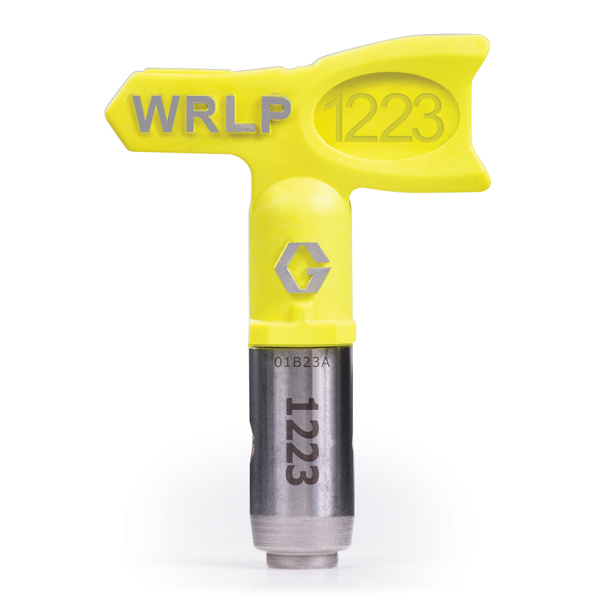

RAC X Wide RAC Low Pressure (WR LP) SwitchTip
Finish large jobs in half the time with a 24 inch fan pattern sprayed at low pressure
Graco's extended range of RAC X Low Pressure SwitchTips feature the patented SmartTip Technology with exclusive internal tip geometry to deliver the industry's best finish at low airless spray pressure.
- Up to 50% Less Overspray
- Up to 2X Longer Tip Life
- Perfect Airless Finish
- Easiest Pattern Overlap
- Reduces Prep and Cleanup
See The Difference
Latex Paint at Half the Typical Pressure
LP tips produce a superior finish at 50% lower pressure than standard tips
Other tips produce tails at same lower pressure
SmartTip Technology is designed to work with Graco's exclusive SmartControl Pressure Management System to deliver a superior spray fan without pressure fluctuations - at all spraying pressures.
For Maximum Benefits Set Pressure to Neon & Green Low Pressure Zone
Maximize Profit on Every Application
Choose the Most Productive Spray Tip for Your Job
| RAC X FF LP | RAC X LP | RAC X WR LP | |
| Part Number | FFLPXXX | LPXXX | WRLPXXXX |
| APPLICATIONS | All Fine Finish Applications including Doors,Trim, Moulding, Cabinets, Woodwork and More | All Residential, Commercial, Interior and Exterior Applications including Siding, Walls, Ceilings and More | All Residential, Commercial, Interior and Exterior High Volume Applications |
| COMMON COATINGS | Lacquers, Stains, Varnish, Enamels and Acrylics | Interior/Exterior Latex, Oil-Based Primers, Epoxies, Block Fillers, Dryfall and Elastomerics | |
| MAXIMUM WORKING PRESSURE | 4,050 psi (280 Bar, 28.0 Mpa) | ||
| TIP GUARD | Blue Guard (246215) | ||
| 100% FACTORY TESTED | ✓ |
✓ |
✓ |
Low Pressure Solutions for Every Job
RAC X FF LP SwitchTip
| RAC X FINE FINISH LOW PRESSURE SWITCHTIPS (FFLPXXX) | ||||||||||||
| Orifice Size, Inches | ||||||||||||
| in | mm | .006 | .008 | .010 | .012 | .014 | .016 | |||||
| Fan Width | 2-4 | 51-102 | 106 | 108 | 110 | 112 | ||||||
| 4-6 | 102-152 | 206 | 208 | 210 | 212 | 214 | ||||||
| 6-8 | 152-203 | 308 | 310 | 312 | 314 | |||||||
| 8-10 | 203-254 | 408 | 410 | 412 | 414 | |||||||
| 10-12 | 254-305 | 510 | 512 | 514 | 516 | |||||||
| 12-14 | 305-356 | 616 | ||||||||||
| Flow Rate (gpm)* | .04 | .07 | .11 | .15 | .21 | .27 | ||||||
| Flow Rate (lpm)* | .15 | .26 | .41 | .59 | .80 | 1.04 | ||||||
| Recommended Filter Size | 200 | 200 | 200 | 200 | 100 | 60 | ||||||
RAC X LP SwitchTip
| RAC X LOW PRESSURE SWITCHTIPS (LPXXX) | ||||||||||||
| Orifice Size, Inches | ||||||||||||
| in | mm | .013 | .015 | .017 | .019 | .021 | .023 | .025 | .027 | .029 | .031 | |
| Fan Width | 4-6 | 102-152 | 217 | |||||||||
| 6-8 | 152-203 | 313 | 315 | 317 | 319 | |||||||
| 8-10 | 203-254 | 415 | 417 | 419 | 421 | 423 | 425 | |||||
| 10-12 | 254-305 | 515 | 517 | 519 | 521 | 523 | 525 | 527 | ||||
| 12-14 | 305-356 | 617 | 619 | 621 | 623 | 625 | 627 | 629 | 631 | |||
| 14-16 | 356-406 | 723 | 725 | 729 | 731 | |||||||
| Flow Rate (gpm)* | .18 | .24 | .31 | .38 | .47 | .57 | .67 | .77 | .90 | 1.03 | ||
| Flow Rate (lpm)* | .69 | .91 | 1.17 | 1.47 | 1.79 | 2.15 | 2.54 | 2.96 | 3.42 | 3.90 | ||
| Recommended Filter Size | 100 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | ||
RAC X WR LP SwitchTip
| RAC X WIDE RAC LOW PRESSURE SWITCHTIPS (WRLPXXX) | ||||||||||||
| Orifice Size, Inches | ||||||||||||
| in | mm | .021 | .023 | .025 | .027 | .029 | .031 | .033 | ||||
| Fan Width | 24 | 610 | 1221 | 1223 | 1225 | 1227 | 1229 | 1231 | 1233 | |||
| Flow Rate (gpm)* | .47 | .57 | .67 | .77 | .90 | 1.03 | 1.17 | |||||
| Flow Rate (lpm)* | 1.79 | 2.15 | 2.54 | 2.96 | 3.42 | 3.90 | 4.42 | |||||
| Recommended Filter Size | 60 | 60 | 60 | 60 | 60 | 30 | 30 | |||||
* Water @ 2000 psi, 138 bar, 13.8 MPa — paints with a higher viscosity will decrease the flow rate.
Hear What Contractors Have To Say
Genuine Graco Parts
Why Demand Genuine Graco Parts?
TIME AND MONEY
Cheaper parts ultimately cost you more time and money in extra repair costs, extra labor hours, etc.
PERFORMANCE AND RELIABILITY
Only genuine Graco parts deliver the legendary Graco standard of performance and the lowest downtime.
SAFETY
One non-Graco part can lead to injury and downtime. Graco parts deliver best possible quality to deliver safest experience.
The Industry's Best Finish On Every Application
Residential Repaint
New Residential

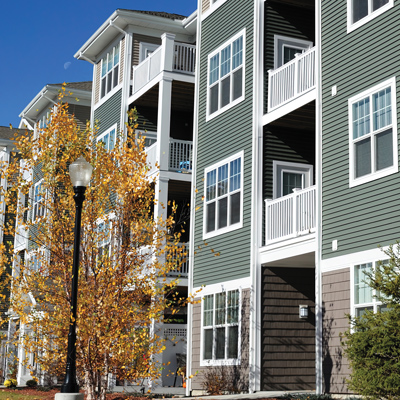

Multi-Family
Commercial

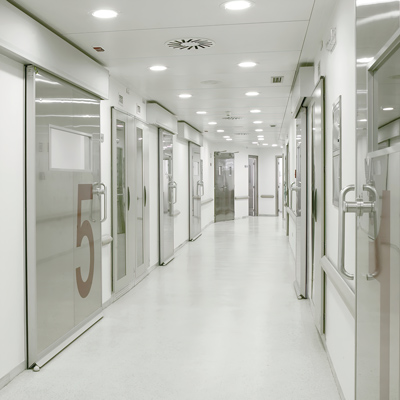

Healthcare
Property Management
Available Now
Contact Your Local Graco Distributor to Order
    |
