XP70

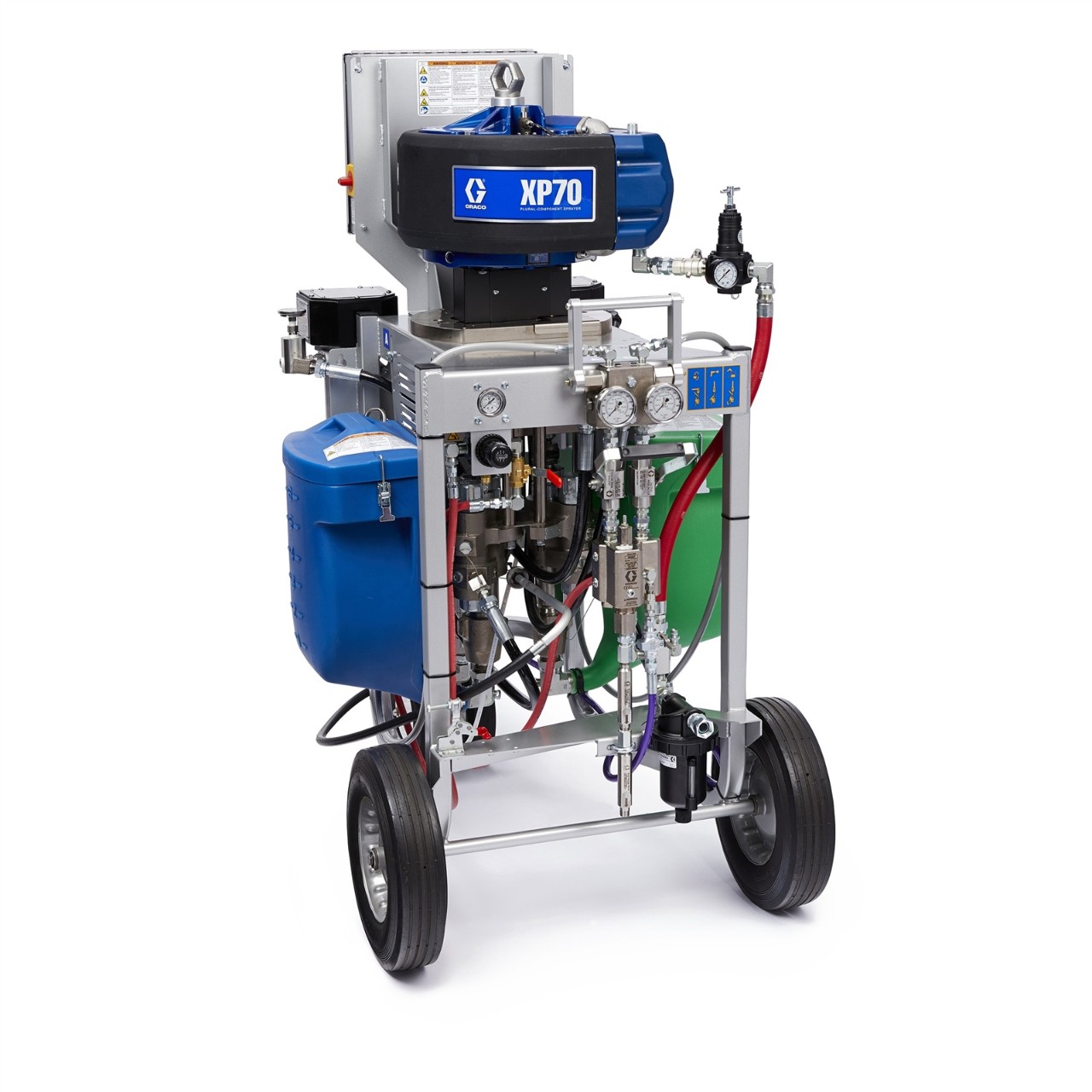

XP70 Non-Hazardous Spray Package, Cart, 3:1 Mix Ratio, Hopper, Solvent Pump, Heaters, Junction Box, XTR Gun, 240V
Part Number: 576305
XP70
XP70 Non-Hazardous Spray Package, Cart, 3:1 Mix Ratio, Hopper, Solvent Pump, Heaters, Junction Box, XTR Gun, 240V
Part Number: 576305
Two-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. W...
More InfoFeatures
Product Brochure
Two-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings.
- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Consistent material quality - no more guesswork or human error in measuring materials
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/4 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic Airless, Manual Airless |
| Compatible Material | Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents |
| Component Type | Plural-Component |
| Configuration | Cart Mount with 7 gallon (26.5 Liter) Hopper |
| Construction | Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Flush Type | Solvent |
| Hose Length (ft) | 35 |
| Includes | Heaters, Solvent Flush Pump, Hoppers |
| Material Application | Coatings, Paints, Primers |
| Maximum Air Consumption (SCFM) | 75 scfm/gpm at 100 psi |
| Maximum Air Inlet Pressure (MPa) | 1.21 |
| Maximum Air Inlet Pressure (psi) | 175 |
| Maximum Cycle Rate (CPM) | 40 |
| Maximum Flow Rate (GPM) | 2 |
| Maximum Fluid Temperature (°F) | 160 |
| Maximum Fluid Viscosity (cP) | 20000 |
| Maximum Hose Length (ft) | 300 |
| Maximum Operating Temperature (°F) | 130 |
| Maximum Spray Pressure (MPa) | 50 |
| Maximum Spray Pressure (psi) | 7250 |
| Maximum Working Pressure (MPa) | 47 |
| Maximum Working Pressure (psi) | 6800 |
| Measuring Type | Fixed Mechanical Positive Displacement |
| Minimum Fluid Viscosity (cP) | 200 |
| Mix Accuracy (%) | +/- 5 |
| Mix Ratio | 3:1 |
| Number of Catalysts | 1 |
| Number of Reducers | 0 |
| Number of Resin Colors | 1 |
| Number of Tanks | 2 |
| Overall Depth (in) | 52 |
| Overall Height (in) | 62 |
| Overall Width (in) | 35 |
| Power Source | Air |
| Product Type | Plural Component |
| Series | XP70 |
| Sound Power Level (dB(A)) | 98 |
| Sound Pressure Level (dB(A)) | 86 |
| Type | Plural Component Sprayer |
| Weight (lb) | 644 |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic Airless, Manual Airless |
| Compatible Material | Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents |
| Component Type | Plural-Component |
| Configuration | Cart Mount with 7 gallon (26.5 Liter) Hopper |
| Construction | Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Flush Type | Solvent |
| Hose Length (m) | 10.7 |
| Includes | Heaters, Solvent Flush Pump, Hoppers |
| Material Application | Coatings, Paints, Primers |
| Maximum Air Inlet Pressure (MPa) | 1.21 |
| Maximum Air Inlet Pressure (bar) | 12.07 |
| Maximum Air Inlet Pressure (kPa) | 1207 |
| Maximum Air Inlet Pressure (psi) | 175 |
| Maximum Cycle Rate (CPM) | 40 |
| Maximum Flow Rate (L/min) | 7.57 |
| Maximum Flow Rate (cc/min) | 7570 |
| Maximum Fluid Temperature (°C) | 71 |
| Maximum Fluid Viscosity (cP) | 20000 |
| Maximum Hose Length (m) | 91.4 |
| Maximum Operating Temperature (°C) | 54 |
| Maximum Spray Pressure (MPa) | 50 |
| Maximum Spray Pressure (bar) | 500 |
| Maximum Spray Pressure (kPa) | 50000 |
| Maximum Spray Pressure (psi) | 7250 |
| Maximum Working Pressure (MPa) | 47 |
| Maximum Working Pressure (bar) | 469 |
| Maximum Working Pressure (kPa) | 46900 |
| Maximum Working Pressure (psi) | 6800 |
| Measuring Type | Fixed Mechanical Positive Displacement |
| Minimum Fluid Viscosity (cP) | 200 |
| Mix Accuracy (%) | +/- 5 |
| Mix Ratio | 3:1 |
| Number of Catalysts | 1 |
| Number of Reducers | 0 |
| Number of Resin Colors | 1 |
| Number of Tanks | 2 |
| Overall Depth (cm) | 132.1 |
| Overall Depth (mm) | 1321 |
| Overall Height (cm) | 157.5 |
| Overall Height (mm) | 1575 |
| Overall Width (cm) | 88.9 |
| Overall Width (mm) | 889 |
| Power Source | Air |
| Product Type | Plural Component |
| Series | XP70 |
| Sound Power Level (dB(A)) | 98 |
| Sound Pressure Level (dB(A)) | 86 |
| Type | Plural Component Sprayer |
| Weight (kg) | 292.1 |
